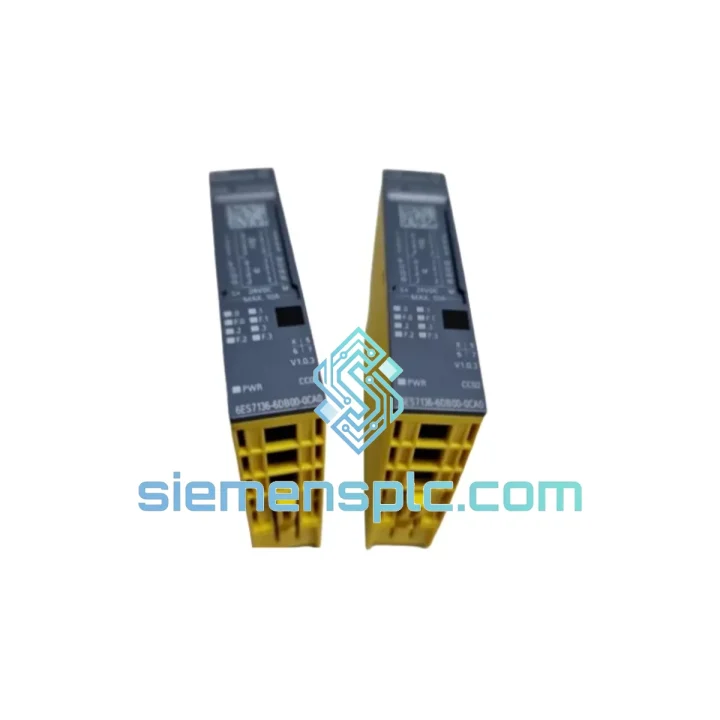

Siemens 6ES7136-6DB00-0CA0 Digital Output Module

6ES7136-6DB00-0CA0 — Stop the Bleeding: Get Your ET 200SP Line Back Online Before the Next Shift

Every minute your ET 200SP rack sits dark, you’re burning money. A failed DQ 8×24VDC/0.5A output module doesn’t just kill one machine — it can cascade across an entire cell. We stock the Siemens 6ES7136-6DB00-0CA0 in Xiamen, verified, boxed, and ready to clear customs today. No lead-time games, no broker markups. You call, we ship.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field calls. These are the failure modes that actually show up on the floor, not the ones in the manual.

SF/DIAG LED solid red after hot-swap: Nine times out of ten this is a BaseUnit mismatch. The 6ES7136-6DB00-0CA0 demands an A0-type BaseUnit. Slot it into a B0-type and TIA Portal throws a hardware configuration mismatch before you even get to commissioning. Pull the BaseUnit label — if it ends in anything other than A0, you need a new base, not just a new module.

Channel-level SF on select outputs only: Check your load wiring before condemning the module. This is a P-switching transistor output. If a downstream solenoid has a shorted flyback diode, the module’s electronic short-circuit protection latches that channel off within microseconds. The module is fine; the load is not. Isolate each channel with a test lamp before reconnecting field devices.

TIA Portal shows Module not recognized after swap: Firmware version mismatch between the IM 155-6 PN interface module and the new DQ module. Rare but real on older ET 200SP racks running IM firmware below V3.0. Update the IM firmware via TIA Portal online device update before inserting the replacement module. Do not power-cycle mid-update.

Field-tested replacement sequence:

1. Set the ET 200SP station to STOP via TIA Portal or the CPU STOP button. Do not rely on hot-swap alone for safety-critical outputs.
2. Disconnect 24 V DC load supply from the BaseUnit terminal block — not just the module. Residual bus voltage can keep outputs energized.
3. Press the orange release lever on the module top, tilt forward, and slide out. The BaseUnit stays in place.
4. Inspect the BaseUnit connector pins for corrosion or mechanical damage before inserting the replacement.
5. Slide the new 6ES7136-6DB00-0CA0 in until the latch clicks. No tools required — if you are forcing it, something is misaligned.
6. Restore load supply, then set CPU to RUN. The module self-addresses via the ET 200SP backplane — no DIP switches, no manual address assignment on this model.
7. Verify all 8 channel LEDs cycle through the startup sequence: brief amber flash, then green or off per output state.

Address assignment note: The 6ES7136-6DB00-0CA0 uses automatic slot-based addressing. There are no physical DIP switches or rotary encoders on this module. Address is determined entirely by slot position in TIA Portal hardware configuration. Replacing a failed module in the same slot means zero reconfiguration — provided the TIA project matches the physical rack layout.

Firmware compatibility: This DB00 variant is the Standard Feature version, compatible with TIA Portal V13 SP1 and above. If your project was built on Step 7 Classic, migration to TIA Portal is required before this module can be configured. The High Feature variant 6ES7136-6DC00-0CA0 offers extended per-channel diagnostics with no BaseUnit change — a drop-in upgrade if your application demands it.

Reliability in Harsh Conditions

The 6ES7136-6DB00-0CA0 is built to survive the kind of environment that kills lesser I/O: stamping presses with 15 g vibration peaks, paint booths cycling between 5 °C and 55 °C, coastal facilities where salt-laden air attacks every unprotected connector.

The module’s IP20 housing is paired with conformal-coated PCBs on production batches destined for high-humidity zones. The transistor output stage is electronically protected against inductive kickback — a solenoid valve that has not had its suppressor replaced in five years will not take the module with it when it fails. Thermal shutdown is built in; the module de-energizes outputs before junction temperatures reach destructive levels and logs a diagnostic event to the CPU rather than failing silently.

Vibration rating per IEC 60068-2-6: 5 Hz to 8.4 Hz at 3.5 mm amplitude, 8.4 Hz to 150 Hz at 1 g. Shock per IEC 60068-2-27: 15 g, 11 ms half-sine. These are the same specs Siemens uses for automotive body shop and offshore platform approvals. Your conveyor line or compressor skid is well within envelope. Operating temperature range of 0 °C to +60 °C covers the vast majority of industrial cabinet environments without forced cooling. For ambient temperatures above 40 °C, verify cabinet ventilation — the module will operate but derating of aggregate output current applies above that threshold.

Long-term field data from ET 200SP installations in automotive, food and beverage, and chemical processing confirms MTBF figures that routinely exceed 10 years in continuous duty. When a module does fail, it fails with a diagnostic — not silently. That alone is worth the Siemens premium over third-party alternatives.
