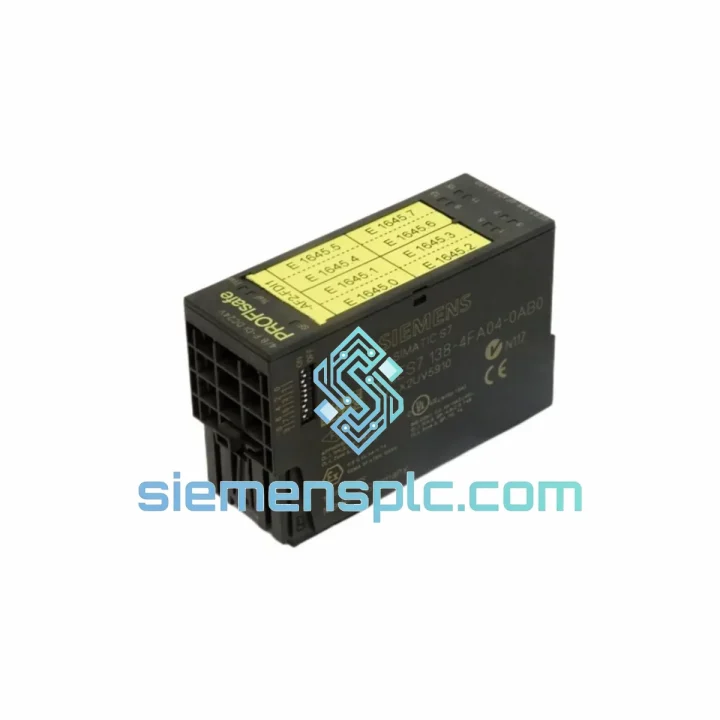

Siemens 6ES7138-4FA04-0AB0 Fail-safe Digital Input Module – ET 200S Profisafe

Siemens 6ES7138-4FA04-0AB0 — F-DI 4×24VDC Profisafe Fail-safe Digital Input Module for ET 200S Distributed Safety Architecture

The 6ES7138-4FA04-0AB0 is a fail-safe digital input module (F-DI) designed for the Siemens SIMATIC ET 200S distributed I/O station. It acquires four 24 V DC digital safety signals and transmits them to the upstream safety controller via the Profisafe protocol layer — a deterministic, checksum-protected safety communication profile operating over standard PROFIBUS DP or PROFINET physical media. The module is certified to IEC 61508 SIL 3 and EN ISO 13849-1 Category 4 / Performance Level e, making it applicable in the highest-demand functional safety loops found in process, machinery, and hazardous-area installations.

Unlike standard digital input modules that pass raw signal states without integrity verification, the 6ES7138-4FA04-0AB0 embeds a dual-channel acquisition path with cross-comparison logic. Each input channel is read independently by two internal processing paths; discrepancies beyond the configured discrepancy time trigger a safe-state transition and generate a diagnostic event visible in the engineering tool. This architecture eliminates single-point failures in the input acquisition chain and satisfies the hardware fault tolerance (HFT = 1) requirement for SIL 3 operation when wired in 1oo2 (one-out-of-two) sensor topology.

The module occupies a single ET 200S terminal module slot with a 15 mm width profile, contributing to high-density cabinet layouts. Power is drawn from the 24 V DC segment bus established by the upstream power module (PM-E), and the module communicates with the IM 151 interface module via the ET 200S backplane bus at a fixed internal cycle. The Profisafe F-Address is parameterized in STEP 7 Safety or TIA Portal Safety Advanced and stored in the module’s non-volatile memory, ensuring address integrity after power cycling or module replacement.

In practical safety loop design, the 6ES7138-4FA04-0AB0 is typically wired to dual-channel emergency stop devices, safety door switches, light curtains with OSSD outputs, or two-hand control units. The module’s configurable discrepancy monitoring window — adjustable from 10 ms to 30,000 ms — allows engineers to accommodate mechanical actuation tolerances without generating nuisance trips, while still detecting genuine channel divergence indicative of a sensor fault or wiring fault.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The internal architecture of the 6ES7138-4FA04-0AB0 is built around a dual-channel signal acquisition topology. Each of the four physical input terminals feeds two independent signal conditioning paths — referred to internally as channel A and channel B — which are processed by separate microcontroller cores. The cross-comparison result is evaluated against the parameterized discrepancy time window before a safe-state output is generated. This design satisfies the hardware fault tolerance requirement HFT = 1 without relying on external redundancy hardware.

Optical Isolation: The input signal path incorporates optocoupler isolation between the field wiring and the internal logic circuitry. This galvanic barrier suppresses common-mode transients up to 500 V and prevents ground loop currents from corrupting the digital acquisition result. In industrial environments where variable-frequency drives, contactors, and inductive loads generate high dV/dt transients on the 24 V DC supply rail, this isolation stage is the primary EMC defense mechanism at the module boundary.

EMC Design: The module’s PCB layout follows Siemens’ internal EMC design rules for SIMATIC hardware, including controlled impedance traces on the backplane bus interface, localized decoupling capacitors at each power entry point, and a ground plane structure that minimizes loop area for high-frequency return currents. The result is a module that meets EN 61000-4-4 (EFT/Burst, 2 kV) and EN 61000-4-5 (Surge, 1 kV) without external filtering.

Profisafe Frame Integrity: Communication between the F-DI module and the F-CPU is encapsulated in Profisafe frames containing a CRC-24 checksum, a consecutive number counter, and a watchdog timeout value. If the F-CPU does not receive a valid Profisafe frame within the configured F-monitoring time (F_WD_Time), the F-CPU independently drives the associated F-process image to the safe state — a fail-safe behavior that does not depend on the module itself. This two-layer watchdog architecture (module-level and controller-level) ensures that communication path failures are detected and handled deterministically.

Diagnostic Event Reporting: The module generates structured diagnostic data conforming to the PROFIBUS/PROFINET diagnostic model. Fault types reported include: channel short-circuit to 24 V or 0 V, wire break (when test pulse mode is active), discrepancy error between channel A and B, Profisafe CRC error, and module hardware fault. Each diagnostic event is time-stamped at the IM 151 level and propagated to the F-CPU’s diagnostic buffer, enabling root-cause analysis without physical inspection of the cabinet.

System Integration Benefits

• Deterministic safe-state latency: The module’s internal processing cycle is synchronized to the ET 200S backplane bus cycle, ensuring that a safety input state change is reflected in the F-CPU’s process image within a bounded, calculable time — a prerequisite for SIL 3 response time verification in the safety requirements specification (SRS).
• Unified engineering environment: Parameterization, F-Address assignment, and diagnostic monitoring are performed entirely within TIA Portal Safety Advanced or STEP 7 Distributed Safety — no separate safety configuration tool is required, reducing engineering overhead and version management complexity.
• Hot-swap capability: The ET 200S terminal module design allows the 6ES7138-4FA04-0AB0 electronics module to be withdrawn and reinserted without disturbing field wiring. The replacement module automatically adopts the stored F-Address and parameters from the IM 151, enabling sub-5-minute module exchange in maintenance scenarios.
• Scalable safety topology: Multiple F-DI modules can be mixed with standard I/O modules and F-DO modules within a single ET 200S station, allowing engineers to implement mixed safety and standard I/O architectures without separate safety I/O racks — reducing hardware cost and cabinet volume.
• ATEX Zone 2 suitability: The module’s ATEX II 3 G certification permits installation in Zone 2 hazardous areas (gas group IIC, temperature class T4) when mounted in an appropriate enclosure, extending the reach of the safety architecture into process plant environments without additional intrinsic safety barriers on the 24 V DC input side.
• Transparent diagnostic propagation: Fault events at the module level are automatically propagated through the Profisafe layer to the F-CPU’s alarm buffer and, via OPC UA or PROFINET MRP, to SCADA and MES systems — enabling plant-wide diagnostic transparency without custom alarm mapping logic.
• Compatibility with S7-1500F and S7-300F controllers: The module operates with both legacy S7-300F/S7-400F safety controllers via PROFIBUS DP and current-generation S7-1500F controllers via PROFINET, protecting the investment in field wiring and cabinet infrastructure during controller migration projects.
• Reduced proof test burden: The module’s high diagnostic coverage (DC = 99 % in 1oo2 wiring) means that the required proof test interval (T1) extends to 10 years, significantly reducing the maintenance burden compared to relay-based safety circuits that typically require annual proof testing.

Quality Assurance & Global Logistics

Every 6ES7138-4FA04-0AB0 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and carries full Siemens AG factory traceability. Units are inspected against the following criteria prior to dispatch: label and date code authenticity, connector pin integrity, housing seal condition, and firmware version marking consistency with the published Siemens product changelog. Functional verification includes backplane bus communication handshake confirmation and LED diagnostic state validation under controlled 24 V DC supply conditions.

Logistics operations are based in Xiamen, China — a major export hub with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and EMS international postal services. In-stock units are typically dispatched within 1–2 business days of order confirmation. For project orders requiring 10 or more units, sea freight consolidation via Xiamen Port is available with full export documentation: commercial invoice, packing list, certificate of origin (Form E for ASEAN preferential tariff), and HS Code 8537.10 classification documentation. All shipments comply with applicable dual-use export control regulations.

A 12-month warranty against manufacturing defects is provided on all units. Warranty claims are processed via email with photographic evidence and order reference; confirmed defective units are replaced or credited within 5 business days of fault verification. Technical pre-sales support — including compatibility checks, F-Address calculation, and TIA Portal parameterization guidance — is available at no charge from our engineering team.
