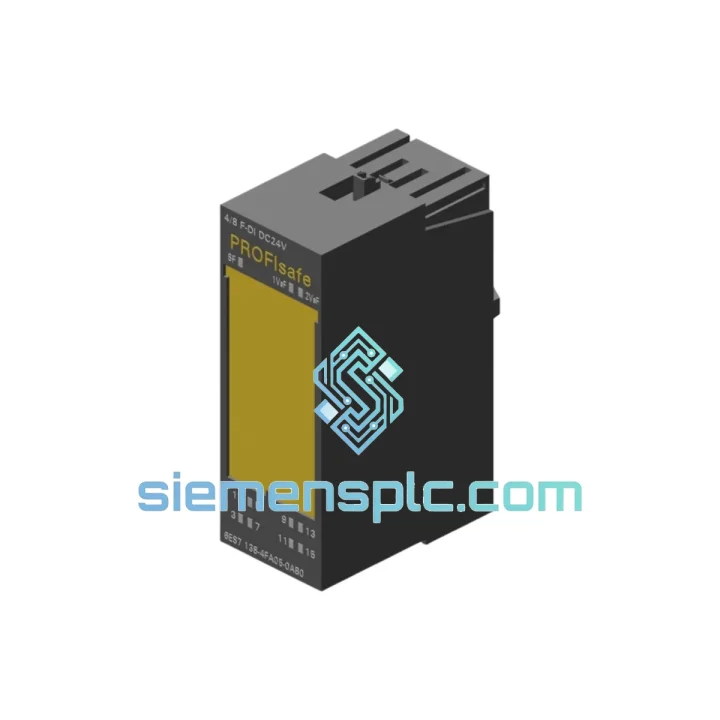

Siemens 6ES7138-4FA05-0AB0 Digital Input Module – ET 200S

Siemens 6ES7138-4FA05-0AB0 4DI Power Module — Signal Acquisition Architecture in the ET 200S Distributed I/O System

In a distributed control architecture, the integrity of the digital input layer determines the fidelity of every decision the controller makes. The Siemens 6ES7138-4FA05-0AB0 is a 4-channel 24 V DC digital input power module for the SIMATIC ET 200S platform. It occupies the first link in the signal chain — converting field-level binary states from sensors, limit switches, and proximity detectors into backplane bus data that the S7 CPU processes within its scan cycle. Its role is not passive: the module actively conditions, filters, and isolates each input channel before presenting a clean logic state to the IM interface module.

This page provides a hardware-level analysis of the 6ES7138-4FA05-0AB0, covering its electrical architecture, EMC design, integration behavior within TIA Portal and STEP 7, and the practical considerations that determine whether a replacement or new installation will perform correctly from the first power-on.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7138-4FA05-0AB0 is classified as a power module within the ET 200S slot architecture, meaning it draws its field-side supply voltage directly from the power bus segment rather than from a separate terminal module supply rail. This distinction has a direct consequence on cabinet wiring: the module participates in the ET 200S power segmentation scheme, allowing engineers to de-energize individual field supply zones without affecting adjacent slots or the backplane bus itself.

Optocoupler Isolation Architecture: Each of the four input channels passes through a dedicated optocoupler stage. The LED side of the coupler is driven by the 24 V DC field signal through a current-limiting resistor network sized to deliver approximately 7 mA at nominal voltage — sufficient to guarantee LED forward conduction across the full operating temperature range while remaining within the IEC 61131-2 Type 1/3 input current envelope. The phototransistor side operates on the 5 V DC backplane bus rail, ensuring complete galvanic separation between field potential and the logic domain. This architecture provides a minimum isolation voltage of 500 V AC (rms) between field and bus, protecting the backplane from transients generated by inductive loads switching on the same 24 V DC segment.

Configurable Input Delay (Debounce Filter): The module implements a digital RC-equivalent filter in firmware, selectable at 0.1 ms, 0.5 ms, 3 ms, or 15 ms via the hardware configuration in STEP 7 or TIA Portal. The 0.1 ms setting is appropriate for solid-state proximity sensors with clean switching edges. The 3 ms and 15 ms settings are used with mechanical contacts where contact bounce can generate spurious 0→1→0 transitions within the first few milliseconds of actuation. Selecting the wrong filter value is a common commissioning error: too short a filter on a mechanical contact causes false input counts; too long a filter on a high-speed sensor introduces latency that violates the timing requirements of the control loop.

EMC Design: The module’s PCB layout follows Siemens’ standard EMC partitioning rules for ET 200S electronics: the field-side traces are routed on a physically separate copper layer from the backplane bus traces, with a ground plane interposed between them. Ferrite beads are placed on the field input lines at the PCB entry point to attenuate high-frequency common-mode noise injected from long cable runs. The terminal module (TM-E) to which the 6ES7138-4FA05-0AB0 snaps provides the mechanical shield connection path to the DIN rail PE conductor, completing the EMC enclosure at the field wiring entry point.

Backplane Bus Interface: The module communicates with the IM interface module via the ET 200S internal backplane bus — a proprietary serial bus operating at a fixed clock rate. The 6ES7138-4FA05-0AB0 presents its four channel states as a 4-bit input word within the IM’s process image. The IM aggregates all slot data and transmits the complete station image to the S7 CPU via PROFIBUS DP or PROFINET IO within the configured cycle time. The module itself has no addressable node identity on the fieldbus; its slot position within the ET 200S station determines its byte address in the CPU’s process image input (PII) area.

System Integration Benefits

• Deterministic Scan Latency: Because the module’s 4-bit input word is included in every IM transmission cycle, input state changes are visible to the CPU within one fieldbus cycle plus the configured input delay — a predictable, bounded latency that supports time-critical interlock logic.
• Hot-Swap Without Station Restart: When used with a compatible IM (e.g., IM 151-1 FO or IM 151-3 PN), the 6ES7138-4FA05-0AB0 can be removed and reinserted under power. The IM detects the slot change, re-parameterizes the replacement module automatically, and resumes normal data exchange — typically within 200 ms — without requiring a CPU stop or station power cycle.
• Slot-Level Diagnostics: The module reports diagnostic information (supply voltage fault, wire break on supported configurations) back to the IM, which forwards it to the CPU as a diagnostic interrupt. In TIA Portal, this appears as a hardware fault entry in the diagnostic buffer with slot address, fault type, and timestamp — eliminating the need for manual fault tracing at the field level.
• Power Segmentation Flexibility: As a power module, the 6ES7138-4FA05-0AB0 defines a new power segment boundary within the ET 200S station. Engineers can assign different 24 V DC supply sources to different segments, enabling zone-based safety de-energization without affecting the entire station.
• IEC 61131-2 Type 1/3 Dual Compliance: The module accepts both PNP (sourcing) and NPN (sinking) sensor outputs within the IEC 61131-2 Type 1 and Type 3 voltage/current windows, eliminating the need for separate module variants when mixing sensor types within the same station.
• TIA Portal Hardware Catalog Integration: The module’s GSDML file is natively included in TIA Portal V13 and later. Drag-and-drop placement in the hardware catalog automatically assigns the correct byte address, default parameterization, and diagnostic alarm OB associations — reducing configuration time and eliminating manual address calculation errors.
• ATEX Zone 2 Certification: The module carries ATEX II 3 G certification, permitting installation in Zone 2 hazardous areas (gas group IIC, temperature class T4) without additional barriers, provided the enclosure meets the required IP rating and the field wiring complies with the applicable installation standard.
• Compact 15 mm Pitch for High-Density Installations: At 15 mm wide, the module allows up to 63 electronic module slots per ET 200S station (subject to IM current budget). In a 400 mm wide field enclosure, this translates to a channel density that would require a significantly larger footprint with conventional terminal-block-based I/O wiring.
