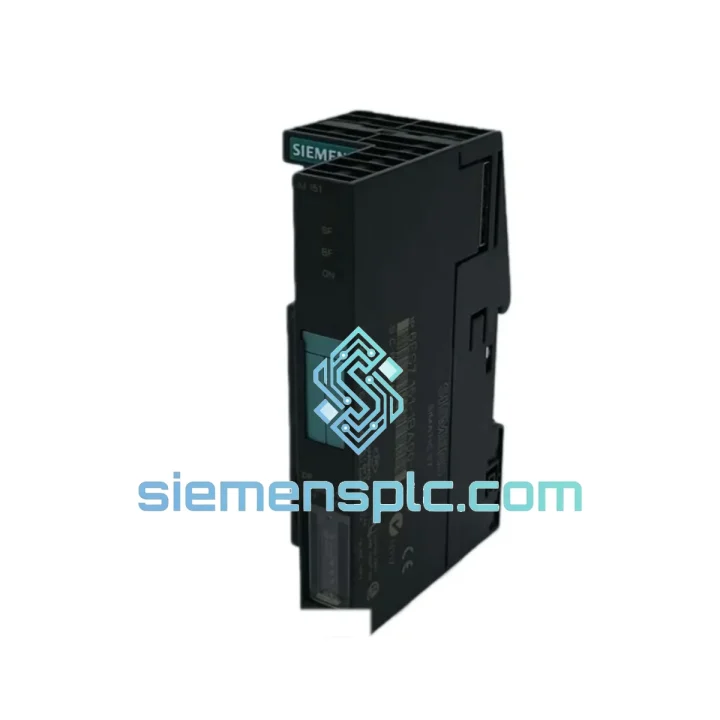

6ES7151-1BA00-0AB0 IM 151-1 Standard: Every Hour of ET 200S Downtime Costs You More Than This Module

Your ET 200S station has gone dark. The IM 151-1 is the brain of the entire distributed rack — without it, every I/O module downstream is blind, every process signal is lost, and your line is stopped. In automotive stamping, chemical dosing, or packaging operations, that translates to $3,000–$8,000 per hour in lost throughput. The Siemens 6ES7151-1BA00-0AB0 IM 151-1 Standard Interface Module is the exact part that brings your ET 200S station back online. We hold physical stock in Xiamen and dispatch via DHL/FedEx Express — most regions receive within 48–72 hours of order confirmation. No waiting on distributor lead times. No back-order queues. The part ships today.

Every unit leaving our warehouse is a genuine Siemens original — not refurbished, not remarked, not grey-market. Each 6ES7151-1BA00-0AB0 is sourced through verified industrial supply channels, cross-checked against factory serial number records, and dispatched in ESD-safe anti-static packaging with full documentation. Your maintenance team gets a drop-in replacement that works first time, every time.

⚡ URGENT REQUIREMENT? Contact us now:
📧 [email protected] | 💬 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault: BF LED solid red — station offline on DP master.
Before pulling the module, rule out the cable first. Walk the PROFIBUS segment and confirm termination resistors are active at exactly two points — the first and last physical device on the segment. A missing terminator or an extra active terminator at a mid-segment drop produces a BF condition that looks identical to a dead IM. If termination is confirmed correct and the BF persists through two power cycles, the internal PROFIBUS ASIC on the 6ES7151-1BA00-0AB0 has failed. There is no field repair — replace the module.

Fault: DP master reports address conflict or parameterization error after module swap.
The IM 151-1 reads its PROFIBUS node address from two rotary hex switches on the front face — one for the tens digit (×10), one for the units digit (×1). These are latched at power-up only. A replacement module ships from the factory at address 03. If address 03 is already occupied on your segment, the master will throw a configuration fault the moment the station comes online. Set the rotary switches to match the original module’s address before you apply 24 V. Verify the address in your STEP 7 HW Config or TIA Portal device view before cycling power.

Fault: Station online but I/O modules reporting SF (System Fault) after replacement.
This typically indicates a mismatch between the actual I/O configuration and the stored hardware configuration in the DP master. If any electronic modules were added or removed from the station while it was offline, the master’s expected configuration no longer matches reality. Perform a hardware scan in STEP 7 (PLC → Edit → Compile and Download) or use TIA Portal’s “Update accessible devices” function to resync the configuration.

Step-by-step replacement sequence — field-tested:

1. Record the PROFIBUS node address from the rotary switches on the failed module before touching anything else. Photograph it.
2. Cut 24 V DC supply to the ET 200S station. The PROFIBUS segment can stay live — the master will flag the station absent, which is normal and expected.
3. Unplug the 9-pin Sub-D PROFIBUS DP connector from the IM 151-1. Note cable entry direction for reinstallation.
4. Release the DIN rail latch on the bottom of the module and slide it out horizontally. Terminal modules and I/O electronics remain undisturbed on the rail.
5. On the replacement 6ES7151-1BA00-0AB0, set both rotary switches to the documented address before mounting. Do not skip this step.
6. Slide the new module onto the rail from the left until the latch engages with an audible click. Reconnect the PROFIBUS DP connector.
7. Restore 24 V DC. The IM 151-1 auto-detects baud rate within 1–2 seconds. Watch the BF LED — it should extinguish as the master completes parameterization. SF LED clears once all I/O modules report healthy.
8. Confirm station status in STEP 7 diagnostics or TIA Portal online view. All modules should show green.

Non-Siemens DP master integration note: If your DP master is from Rockwell, Schneider, Beckhoff, or another vendor, you must load GSD file SIEM80B3.GSD into the master’s configuration tool before the station will parameterize correctly. A missing or outdated GSD causes parameterization failure even when the physical wiring is perfect. Download the correct GSD from the Siemens Industry Online Support portal and verify the revision matches your hardware.

Reliability in Harsh Conditions

The 6ES7151-1BA00-0AB0 was not designed for a climate-controlled server room. It was built for the floor — where compressors vibrate the panel, summer heat pushes enclosure temperatures past 50 °C, and humidity from wash-down operations condenses on every surface. Siemens qualified this module against IEC 61131-2 environmental requirements, and the numbers reflect real industrial stress.

Vibration: Tested to 10–58 Hz at 0.075 mm displacement amplitude and 58–150 Hz at 1g acceleration per IEC 60068-2-6. This covers the vibration signature of industrial compressors, hydraulic press drives, and conveyor motor assemblies mounted in the same panel section. The module’s PCB mounting and connector retention are designed to maintain electrical continuity through continuous vibration exposure — not just survive a lab test.

Mechanical shock: Qualified at 15g peak over an 11 ms half-sine pulse per IEC 60068-2-27. Relevant for mobile equipment panels, rail-mounted control cabinets, and installations where maintenance crews occasionally drop tools on the enclosure. The internal component mounting survives impact events that would crack solder joints on commercial-grade hardware.

Thermal performance: Continuous operation rated to 60 °C ambient without derating. The onboard power regulation circuit holds the 5 V backplane bus within tolerance across the full 0–60 °C range. In practice, this means the module maintains stable PROFIBUS communication even when the panel interior reaches temperatures that cause cheaper interface hardware to drop frames or reset spontaneously.

Humidity resistance: Rated to 95% relative humidity (non-condensing) per IEC 60068-2-78. The PCB carries a conformal coating that provides a moisture barrier in food processing, beverage production, and chemical plant environments where humidity is a constant operational condition rather than an edge case.

EMC immunity: Compliant with EN 61000-6-2 industrial immunity standard — 2 kV burst on power lines, 1 kV surge immunity, and radiated immunity to 10 V/m. The module maintains PROFIBUS DP frame integrity in panels shared with variable-frequency drives, large contactor banks, and resistance welding equipment. If your plant has a dirty power environment, this module was designed for it.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — a primary export port with direct daily connections to DHL Express, FedEx International Priority, and UPS Worldwide Express. When you confirm an order for an in-stock 6ES7151-1BA00-0AB0, the clock starts immediately.

Same-day dispatch: Orders confirmed before 15:00 CST on business days are packed, documented, and handed to the carrier the same afternoon. Export paperwork — commercial invoice, packing list, HS code 8537.10 declaration — is prepared in parallel with packing so customs clearance begins the moment the shipment lands at the destination country.

Estimated transit times (DHL / FedEx Express):

• Southeast Asia (Singapore, Vietnam, Thailand, Malaysia, Indonesia): 1–2 business days
• East Asia (Japan, South Korea, Taiwan, Hong Kong): 1–2 business days
• South Asia (India, Pakistan, Bangladesh): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 2–3 business days
• Europe (Germany, UK, Netherlands, France, Poland, Italy): 3–5 business days
• North America (USA, Canada, Mexico): 3–5 business days
• South America (Brazil, Chile, Colombia, Argentina): 5–7 business days
• Africa and remote destinations: 5–8 business days

Every shipment includes end-to-end tracking from Xiamen pickup to final delivery, cargo insurance, and a customs-ready commercial invoice. For import-duty-sensitive destinations, we provide detailed product descriptions and HS code documentation to support your customs broker and prevent clearance delays. Critical shipments can be escalated to DHL Time Definite or FedEx Priority Overnight service where available. Contact us before ordering if your deadline is tight — we will confirm the fastest available routing before you commit.
