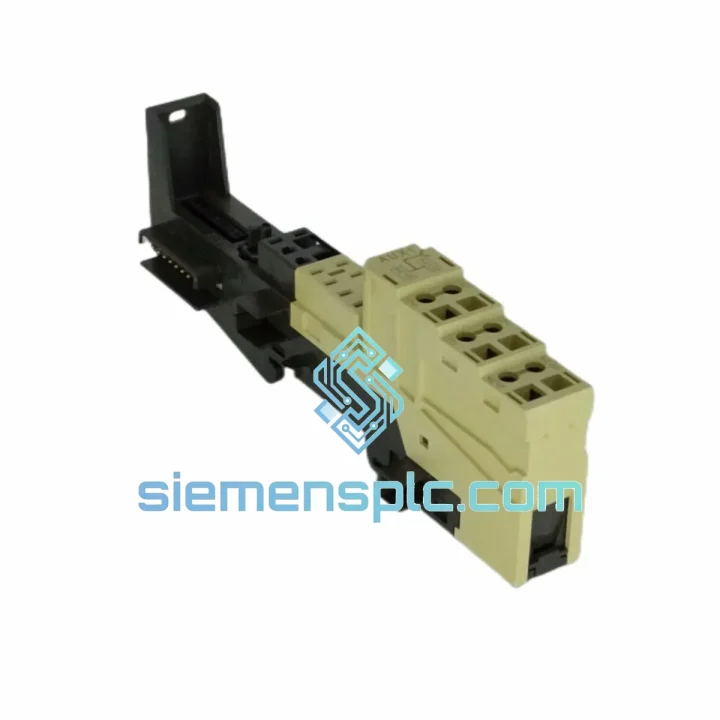

Siemens 6ES7193-4CD30-0AA0 Terminal Module

Siemens 6ES7193-4CD30-0AA0 — Stop the Clock on Your Downtime

Every minute your ET 200S station sits dead, your line is bleeding money. The 6ES7193-4CD30-0AA0 Terminal Module (TM-P) is the mechanical and electrical backbone that seats your Power Module onto the backplane bus — and when it fails, nothing downstream runs. We stock this unit in Xiamen, inspected and ready to pull from the shelf. Same-day dispatch on confirmed orders. No waiting on factory lead times, no broker runaround.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The TM-P is a passive mechanical carrier — it has no firmware, no address switches, and no configuration parameters. That simplicity is also what makes failures easy to misdiagnose. Here is what actually goes wrong in the field and how to handle the swap correctly.

Fault Code SF / BF on IM 151 Interface Module: If your interface module is throwing a red SF LED alongside a bus fault on a specific power segment, do not immediately blame the Power Module. A cracked or oxidized backplane bus connector on the TM-P is a common root cause. Pull the PM-E, inspect the gold bus pins on the TM-P for mechanical deformation or corrosion. A bent pin on position 3 or 7 of the bus connector will drop the entire power segment.

Replacement Procedure — Step by Step:

1. De-energize the ET 200S station. Isolate the 24 VDC supply to the affected power segment — do not assume the upstream breaker covers all segments.
2. Disconnect all field wiring from the Power Module terminals. Label each wire before removal; the TM-P terminal layout is mirrored and rewiring errors cause immediate short circuits on power-up.
3. Slide the Power Module upward and off the TM-P. The module releases with a quarter-turn of the orange locking lever — do not force it.
4. Unclip the TM-P from the DIN rail. Note the bus connector orientation — the replacement must seat in the same direction or the backplane bus chain breaks.
5. Snap the new 6ES7193-4CD30-0AA0 onto the rail. Confirm the bus bridge connector clicks into the adjacent module — you will feel a positive engagement. A loose connection here causes intermittent SF faults that are nearly impossible to trace under load.
6. Reseat the Power Module. Reconnect field wiring. Power up and verify the IM 151 shows green BF/SF LEDs within 5 seconds of bus initialization.

Critical Configuration Note — TM-P Variant Matching: The -4CD30 suffix designates this TM-P for Power Modules with a specific current path rating and bus connector geometry. Substituting a -4CA30 or -4CB30 variant will physically fit on the rail but will misroute the power bus, causing either a dead segment or a latent overcurrent condition. Always match the last four characters of the TM-P part number to the assignment table in Siemens ET 200S System Manual A5E00515771.

No Address Switches, No Firmware: Unlike electronic modules in the ET 200S family, the TM-P requires zero configuration in STEP 7 or TIA Portal. The hardware catalog entry is tied to the Power Module, not the TM-P. After replacement, no GSD update or hardware reconfiguration is needed — the station comes back online automatically once the PM-E is reseated and powered.

Reliability in Harsh Conditions

The 6ES7193-4CD30-0AA0 is built to Siemens IEC 61131-2 environmental standards. The DIN rail snap mechanism maintains a rated retention force of over 50 N under continuous vibration — tested to IEC 60068-2-6 at 10–57 Hz, 0.075 mm amplitude, and 57–150 Hz at 1 g. In automotive body shops and stamping lines where floor vibration is constant, this matters. A TM-P that works loose under vibration will cause intermittent bus dropouts that look like PLC software faults — a diagnostic dead end that costs hours.

The integrated bus connector uses gold-plated contacts rated for a minimum of 100 mating cycles, with a contact resistance specification that holds below 30 mΩ even after thermal cycling between −25 °C and +70 °C. In foundry environments and outdoor enclosures in humid climates, this contact integrity is what separates a module that lasts three years from one that corrodes out in six months.

The housing material is UL94 V-0 rated flame-retardant thermoplastic. In the event of a localized thermal event — a shorted field device, a failed PM-E — the TM-P will not propagate flame to adjacent modules. ATEX Zone 2 certification means it can be deployed in areas with occasional explosive atmosphere presence, covering the majority of oil and gas and chemical plant applications without requiring a purged enclosure.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary industrial export hubs with direct access to DHL, FedEx, and UPS international gateways. For urgent replacement orders, here is the realistic timeline:

• Order confirmed before 14:00 CST: Same-day dispatch. DHL Express typically delivers to Europe in 3–5 business days, Southeast Asia in 1–3 days, North America in 4–6 days.
• Export documentation: Commercial invoice, packing list, and HS code 8538.90 declaration prepared same day. For customers requiring a Certificate of Origin or EUR.1 movement certificate, allow one additional business day.
• Customs clearance: We declare at actual transaction value with full part number and description. No undervaluation. This protects your import compliance and avoids customs holds that defeat the purpose of express shipping.
• Tracking: AWB number sent via email and WhatsApp within 2 hours of dispatch. Real-time tracking link included.
• Freight insurance: Available on request for orders above USD 500. Recommended for high-value multi-unit shipments.

For plant shutdowns or scheduled maintenance windows where delivery timing is critical, contact us directly on WhatsApp. We can coordinate with your freight forwarder or arrange airport pickup in Xiamen if your logistics team has a preferred carrier contract.
