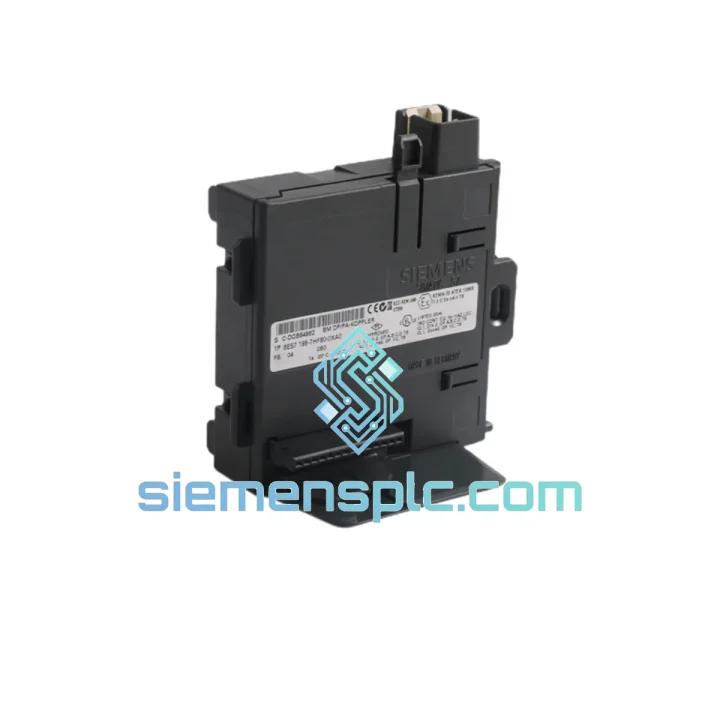

Siemens 6ES7195-7HF80-0XA0 DP/PA Bus Module – SIMATIC ET 200M

Siemens 6ES7195-7HF80-0XA0 — DP/PA Link Bus Module: Backbone of Deterministic Process Field Communication in ET 200M Architecture

The 6ES7195-7HF80-0XA0 is a dedicated DP/PA link bus module engineered for integration within the Siemens SIMATIC ET 200M distributed I/O platform. Its primary function is to establish a transparent, electrically isolated bridge between a PROFIBUS-DP master segment and one or more PROFIBUS-PA field device segments. Unlike standalone DP/PA coupler units mounted externally on DIN rail, this module occupies a slot directly on the ET 200M backplane rail, sharing the same mechanical chassis as the interface module and I/O cards. This embedded architecture eliminates inter-device cabling between the DP master and the PA coupler, reduces panel footprint by approximately 40 mm per segment, and consolidates diagnostic data into a single SIMATIC hardware configuration object.

In a typical process control loop — for example, a pressure-regulated feed line in a petrochemical reactor — the DP master (S7-300 CPU or ET 200M IM 153-x) polls the 6ES7195-7HF80-0XA0 at DP cycle rates. The module then manages the PA segment independently, handling the Manchester Bus Powered (MBP) physical layer encoding, segment power conditioning, and cyclic data exchange with PA field devices such as pressure transmitters, Coriolis flow meters, and positioners. The result is that the DP master sees PA device process values and status bytes as standard DP I/O data, with no additional protocol translation layer visible to the application program.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7195-7HF80-0XA0 implements a two-domain isolation architecture. On the DP side, the module interfaces with the ET 200M backplane bus via a dedicated ASIC that handles DP slave protocol state machine execution — including token passing acknowledgment, data exchange (DX) mode, and diagnostic response framing — at rates up to 12 Mbit/s. This ASIC operates in the 5 V DC logic domain supplied by the backplane.

On the PA side, the module contains an integrated Manchester Bus Powered (MBP) transceiver and a DC/DC converter that derives the 9–32 V PA segment bus voltage from the 24 V DC backplane supply. The MBP transceiver superimposes ±9 mA current modulation onto the PA segment DC power rail, encoding data at 31.25 kbit/s. A galvanic isolation barrier — implemented via transformer coupling — separates the DP logic domain from the PA segment, providing a minimum isolation voltage of 500 V AC. This barrier is critical in process plants where PA field devices may be located in areas with significant ground potential differences relative to the control room earth reference.

The module’s internal microcontroller manages PA segment scheduling using a token-bus master algorithm. It maintains a live address table of all active PA slaves, executes cyclic data polling at configurable intervals, and handles acyclic parameter read/write requests (Class 1 and Class 2 master services) forwarded from the DP master via the backplane. Fault detection logic monitors PA segment current draw continuously; a segment short-circuit or open-circuit condition triggers a diagnostic interrupt to the IM 153-x within one DP cycle, enabling the CPU to execute fault-response logic without polling delay.

EMC hardening is achieved through multi-layer PCB ground planes, ferrite bead filtering on all I/O lines crossing the isolation boundary, and transient voltage suppression (TVS) diodes on the PA terminal connections. The module meets EN 61000-4-4 (electrical fast transient, 2 kV) and EN 61000-4-5 (surge, 1 kV line-to-earth) immunity levels, which are the relevant thresholds for process industry cabinet environments.

System Integration Benefits

• Single-rack consolidation: Eliminates the external DP/PA link enclosure (e.g., 6ES7157-0AC83-0XA0 standalone unit), reducing panel width by one module slot and removing two PROFIBUS-DP cable terminations from the field wiring schedule.
• Deterministic PA polling cycle: The internal PA master scheduler operates independently of the DP cycle, ensuring PA device data is refreshed at a fixed 10 ms interval regardless of DP bus load fluctuations — critical for flow control loops with tight PID update requirements.
• Transparent SIMATIC diagnostics: PA device status (device fault, configuration mismatch, out-of-specification) is mapped directly into the ET 200M diagnostic buffer and surfaced in STEP 7 / TIA Portal hardware diagnostics without requiring separate PA diagnostic tools.
• Intrinsically safe segment compatibility: When paired with certified Ex barriers (Zener or galvanic isolators, e.g., Pepperl+Fuchs KFD2-STC4-Ex1.20060), the PA segment can extend into ATEX Zone 1 / IECEx Zone 1 areas, covering the majority of process plant hazardous area classifications.
• GSD-based configuration — no proprietary add-ons: The module is configured entirely via its standard GSD file within the STEP 7 hardware catalog or TIA Portal device library. No additional software packages or licenses are required beyond the base engineering tool.
• Acyclic parameter access: Supports PROFIBUS-PA Class 1 and Class 2 master services, enabling online parameter read/write to PA field devices (e.g., range adjustment, damping, tag assignment) from the SIMATIC engineering station without interrupting cyclic process data exchange.
• Hot-swap capable within ET 200M constraints: In redundant IM 153-2 configurations, the bus module can be replaced during operation on the standby IM path, reducing planned maintenance downtime for PA segment reconfiguration.
• Scalable PA segment architecture: Multiple 6ES7195-7HF80-0XA0 modules can be installed in a single ET 200M rack (subject to slot and power budget), allowing independent PA segments per process unit — for example, separate segments for reactor feed, product discharge, and utility services — each with isolated fault domains.

Quality Assurance & Global Logistics

Every 6ES7195-7HF80-0XA0 unit dispatched from our Xiamen, China facility undergoes a structured verification protocol before packaging:

• Authenticity verification: Siemens holographic security labels, production date codes, and firmware revision markings are cross-checked against Siemens factory documentation. Counterfeit indicators (label adhesive inconsistency, PCB silkscreen font deviation, connector pin plating color) are inspected under magnification.
• Power-on self-test (POST): Each module is energized on a test bench with a compatible ET 200M rack and IM 153-2 interface module. POST pass status, backplane communication handshake, and PA segment power-up sequence are verified and logged.
• ESD-safe packaging: Modules are sealed in anti-static polyethylene bags with humidity indicator cards, placed in foam-lined corrugated cartons rated for international air freight handling (ISTA 2A drop and vibration profile).
• Documentation package: Each shipment includes a commercial invoice, packing list, certificate of conformity, and HS code declaration (HS 8537.10) for customs clearance in EU, US, and Southeast Asian markets.
• Shipping lead time: In-stock units ship within 1–2 business days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. Transit time to Europe: 3–5 days; North America: 4–6 days; Southeast Asia: 2–3 days.
• 12-month warranty: Covers manufacturing defects and confirmed functional failures under normal operating conditions. Warranty claims are processed with a replacement unit dispatched within 5 business days of fault confirmation.
