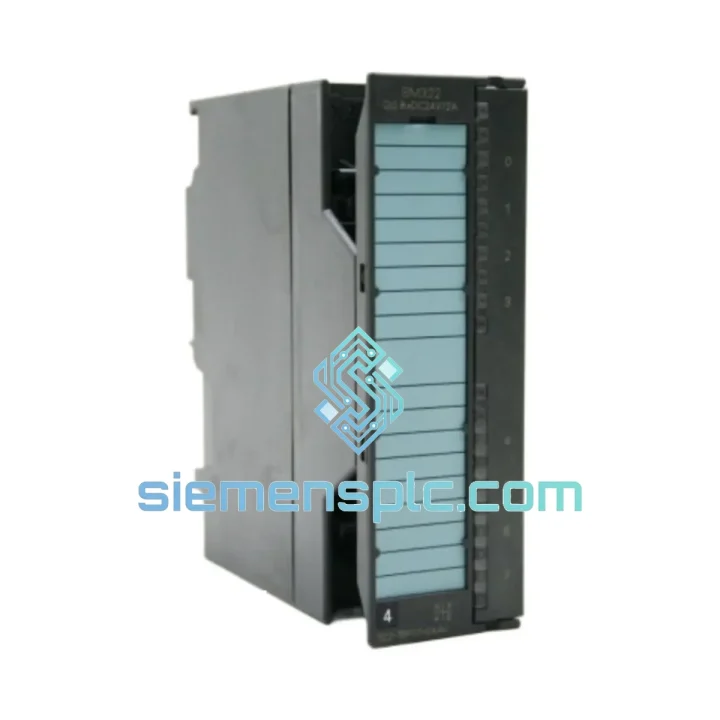

Siemens 6ES7322-1BF01-0AA0 Digital Output Module – S7-300

Siemens 6ES7322-1BF01-0AA0 — 8-Channel DC 24 V Digital Output Module for SIMATIC S7-300 Discrete Control Loops

The 6ES7322-1BF01-0AA0 is a solid-state digital output module belonging to the SM 322 family within the SIMATIC S7-300 platform. It provides eight galvanically isolated transistor output channels, each rated at DC 24 V / 0.5 A, and is designed to interface the S7-300 backplane directly with field-level actuators — contactors, solenoid valves, indicator lamps, and relay coils — in continuous-duty industrial environments. The module occupies a single 40 mm slot on any standard S7-300 profile rail and draws no more than 100 mA from the 5 V backplane bus, keeping the power budget of multi-module racks well within the PS 307 supply envelope.

In a discrete control loop, this module sits at the final output stage: the CPU resolves the control program, writes the output image table, and the backplane bus transfers the byte to the SM 322 within one bus cycle. The module’s internal logic then drives the corresponding transistor switch, closing the field circuit in under 0.5 ms. This deterministic switching latency is a direct consequence of the module’s optocoupler-based isolation architecture — there are no mechanical contacts, no bounce, and no arc erosion to introduce timing variability over the service life of the installation.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7322-1BF01-0AA0 implements a two-stage signal path between the S7-300 backplane and the field terminals. On the bus side, the module’s ASIC receives the output byte from the P-bus during the CPU’s output phase. This byte is latched into an internal register, decoupled from the bus, and held stable until the next scan cycle — a design that prevents transient bus activity from causing spurious output toggling, which is a known failure mode in modules that lack output latching.

The latched signal then drives the LED side of eight discrete optocouplers. Each optocoupler provides a minimum 500 V AC isolation barrier between the 5 V logic domain and the 24 V field domain. The phototransistor output of each optocoupler drives a dedicated power transistor stage with integrated flyback suppression. This suppression clamp is critical when switching inductive loads such as relay coils or solenoid valves: without it, the collapsing magnetic field generates voltage spikes that can exceed 100 V and degrade the transistor junction over time. The -1BF01 revision incorporates an improved clamp circuit compared to the earlier -1BF00, extending mean time between failures in high-cycle solenoid applications.

Electronic short-circuit protection operates on a cycle-by-cycle current-sensing basis. When channel current exceeds approximately 0.7 A (the protection threshold), the driver stage switches off within microseconds and sets the corresponding diagnostic bit in the module’s status register. The CPU reads this register via the backplane and can map the fault to a specific OB (e.g., OB 82 — I/O point fault) for structured alarm handling in the user program. This per-channel diagnostic granularity eliminates the need for external fusing on individual output circuits, reducing panel wiring complexity and fault isolation time.

EMC performance is achieved through a combination of the optocoupler isolation barrier, internal ground plane separation between the logic and field PCB layers, and the module’s metal front plate which acts as a partial Faraday shield for the field wiring terminals. The module meets EN 61000-4-4 (EFT/Burst, 2 kV) and EN 61000-4-5 (Surge, 1 kV) immunity levels, making it suitable for installation in cabinets adjacent to variable-frequency drives and other high-dV/dt sources without additional filtering.

System Integration Benefits

• Deterministic output latency ≤ 0.5 ms — The latched output register and transistor switching architecture deliver consistent channel-to-channel timing, supporting motion sequencing and interlock logic where output jitter must remain below one PLC scan cycle.
• Per-channel electronic diagnostics — Each channel reports short-circuit and wire-break status independently to the CPU via the backplane, enabling the user program to identify the exact failed output point without manual probing, reducing mean time to repair in multi-actuator panels.
• No external fusing required per channel — The integrated current-limiting protection eliminates individual channel fuses, reducing BOM cost, panel space, and the risk of incorrect fuse ratings being installed during maintenance.
• Seamless STEP 7 and TIA Portal compatibility — The module is catalogued in both STEP 7 V5.x (HW Config) and TIA Portal V13 through V19 (Device & Networks), allowing projects to migrate from legacy to current engineering tools without hardware changes.
• Consistent rack power budget — At ≤ 100 mA from the 5 V backplane bus, up to eight SM 322 modules can be populated on a single rack alongside a CPU 315-2 DP without exceeding the PS 307 5 A supply rating, simplifying rack power calculations during system design.
• Inductive load compatibility with integrated flyback suppression — The internal clamp circuit handles the back-EMF of relay coils and solenoid valves rated up to the channel current limit, eliminating the need for external freewheeling diodes on each output circuit.
• IP 20 rated housing with 40 mm slot pitch — The compact form factor maximises output channel density per rack unit of panel space, a measurable advantage in retrofit projects where the existing cabinet footprint cannot be expanded.
• Direct drop-in replacement for installed -1BF00 base — The -1BF01 revision maintains full mechanical, electrical, and software compatibility with the predecessor, allowing spare-part standardisation across mixed-revision installed bases without re-engineering.

Quality Assurance & Global Logistics

Every 6ES7322-1BF01-0AA0 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and handled under strict incoming inspection protocols. Each module is examined for label authenticity — including hologram integrity, date code consistency, and housing mold markings — before acceptance into stock. Units are stored in climate-controlled conditions within anti-static shielding bags with humidity indicator cards, preventing electrostatic discharge damage and moisture ingress during storage.

Functional verification is performed on available test fixtures prior to dispatch. Batch traceability records, including supplier documentation and inspection logs, are retained for a minimum of three years, supporting customers’ own quality audit requirements.

Shipments originate from Xiamen, China. Standard export packaging uses double-wall corrugated cartons with foam-in-place cushioning, meeting ISTA 2A transit testing criteria for fragile electronic equipment. Typical transit times are 3–5 business days to major Asia-Pacific destinations, 5–8 business days to Europe and the Middle East, and 6–10 business days to North and South America via express air freight. DHL, FedEx, and UPS accounts are maintained for time-critical orders. All shipments include commercial invoice, packing list, and certificate of origin documentation. Customs HS code 8537.10 applies to this product category in most jurisdictions.

A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with a target response time of 48 hours from receipt of the defective unit.
