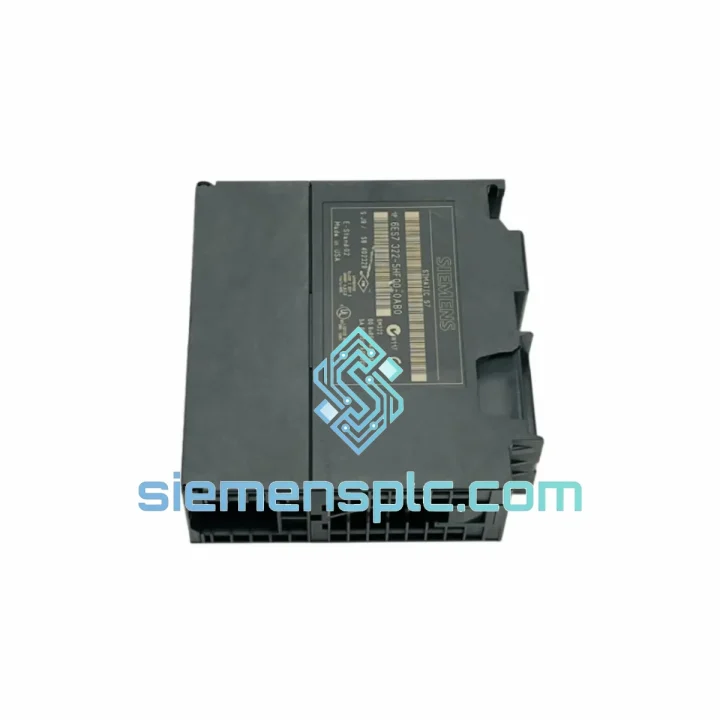

Siemens 6ES7322-5HF00-0AB0 Digital Output Module

6ES7322-5HF00-0AB0 — Stop the Bleed: Every Hour of S7-300 Downtime Costs You Real Money

Your S7-300 rack just threw a DO fault. The line is stopped. Maintenance is standing by. You’ve already confirmed the 6ES7322-5HF00-0AB0 is the culprit — transistor outputs dead, no 24 V on the field side, SF LED locked red. You don’t need a lecture on the module. You need a replacement on a plane today.

We stock the Siemens 6ES7322-5HF00-0AB0 in Xiamen and ship same-day via DHL Express or FedEx International Priority. Most destinations in Southeast Asia, the Middle East, and Europe receive units within 48–72 hours of order confirmation. That’s the difference between a two-day outage and a two-week procurement nightmare.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures on the 6ES7322-5HF00-0AB0:

• SF LED solid red, no output on any channel: Internal power stage failure. The 24 V L+ supply to the module may be intact but the output transistors are blown — typically caused by a sustained short-circuit on the field wiring that exceeded the module’s internal protection threshold. Confirm with a clamp meter on the load side before swapping.
• Intermittent channel dropout (1 to 3 channels): Usually a thermal issue. Check ambient temperature in the panel. If the rack is running above 50 C, the transistor junction temperature on individual channels can exceed limits under full load. Verify total current draw across all 16 channels does not exceed 4 A aggregate.
• STEP 7 / TIA Portal reports Module not responding after hot insertion: The CPU may require a hardware reconfiguration download after module swap. In STEP 7, go to PLC then Download to Module. In TIA Portal, use the Load to device function. If the slot address has changed, update the hardware config first.
• Diagnostic interrupt storm after replacement: Verify the front connector (6ES7392-1BM01-0AA0) is fully seated. A partially engaged connector causes intermittent signal loss that the CPU interprets as a wire-break fault on diagnostic-capable channels.

Step-by-step replacement procedure:

1. De-energize the rack segment. Switch off the PS 307 supply feeding the affected rack. Do not rely on CPU STOP mode alone — the 24 V field supply to the DO module remains live unless you cut it at the source.
2. Label and photograph the front connector wiring. The 40-pin connector carries field wiring for all 16 channels plus the L+ and M supply. A photo takes 10 seconds and prevents a rewiring error that costs hours.
3. Remove the front connector. Press the orange release tab and pull straight out. Set aside — the connector transfers to the new module.
4. Release the module from the DIN rail. Open the top and bottom mounting clips, slide the module forward off the backplane bus connector. Inspect the backplane connector pins on the rack for damage before inserting the replacement.
5. Insert the new 6ES7322-5HF00-0AB0. Align the backplane connector, press firmly until both clips engage. There is no address switch or DIP configuration on this module — slot position in the hardware config determines the logical address. Confirm the physical slot matches your STEP 7 / TIA Portal hardware configuration.
6. Reattach the front connector. Press until it clicks. Restore power. The CPU should recognize the module within one scan cycle. Check the diagnostic buffer (CPU then Module Information then Diagnostic Buffer) to confirm no residual faults.
7. Verify outputs under load. Force individual output bits in STEP 7 Monitor/Modify or TIA Portal Watch Table and confirm field-side voltage with a multimeter. Do not assume the module is functional based on LED state alone.

Firmware note: The 6ES7322-5HF00-0AB0 does not carry user-upgradeable firmware. Hardware revision is stamped on the module label (e.g., HW: 01, FW: V1.0). Ensure the hardware revision is compatible with your CPU firmware version — consult the Siemens compatibility matrix in the S7-300 Module Specifications manual (A5E00105505) if you are running a CPU with firmware above V3.3.

Reliability in Harsh Conditions

The 6ES7322-5HF00-0AB0 is not a consumer-grade board. It was designed to run continuously in environments that would destroy standard electronics within weeks.

Vibration resistance: Qualified to IEC 60068-2-6 (sinusoidal vibration, 10 to 58 Hz, 0.075 mm amplitude; 58 to 150 Hz, 1 g). In practice, this means the module survives installation on compressor skids, press frames, and mobile equipment where vibration is constant. The backplane connector is mechanically keyed and latched — it does not work loose under vibration.

Thermal performance: Rated for continuous operation at 60 C ambient. The transistor output stage uses a conservative derating curve — at full 4 A aggregate load, the module runs well within thermal limits up to 55 C. Above 55 C, reduce total channel load proportionally. The module has no active cooling requirement; convection airflow through the rack is sufficient under normal panel design.

Humidity and condensation: Tested to IEC 60068-2-30 (damp heat, cyclic, 25 to 55 C, 95% RH). The conformal coating on the PCB provides protection against condensation during temperature cycling — a common failure mode in outdoor enclosures and unheated substations. Units stored in our Xiamen warehouse are kept in climate-controlled conditions with desiccant packaging to prevent moisture ingress during transit.

EMC immunity: Compliant with EN 61000-6-2 (industrial immunity). The optocoupler isolation between the field side and the backplane bus provides a galvanic barrier that blocks common-mode noise from inductive loads — solenoids, motor contactors, and relay coils — from propagating into the CPU backplane. This is the primary reason transistor output modules fail less frequently than relay output modules in high-cycle applications: no mechanical contacts, no arc erosion, no coil inrush.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL, FedEx, and UPS gateway access. Here is exactly how your order moves from our shelf to your panel room:

• Order confirmed before 14:00 CST: Same-day dispatch. The module is pulled from stock, inspected, wrapped in anti-static ESD shielding bag, packed in double-wall corrugated carton with foam inserts, and handed to the carrier the same afternoon.
• DHL Express Worldwide: Transit time 2 to 4 business days to Europe, Middle East, Southeast Asia, and Australia. 3 to 5 days to North and South America. Tracking number provided within 2 hours of pickup scan.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger coverage (e.g., remote US locations, Canada, Mexico). Transit times comparable to DHL.
• Export documentation: Commercial invoice, packing list, and certificate of origin issued for every shipment. HS Code 8537.10 declared. We can prepare a pro-forma invoice for your import customs clearance in advance of shipment.
• Customs clearance support: We have processed exports to over 60 countries. If your customs authority requires additional documentation (e.g., FORM E for ASEAN preferential tariff, EUR.1 for EU), contact us before order placement and we will advise on feasibility.
• Insurance: All shipments above USD 500 are covered by cargo insurance at no additional charge. Claim support is handled directly by our logistics team — you do not deal with the carrier alone.

If your plant is in a country with import restrictions on electronic components, contact us before ordering. We will advise on the correct declaration approach and connect you with a local customs broker if needed.
