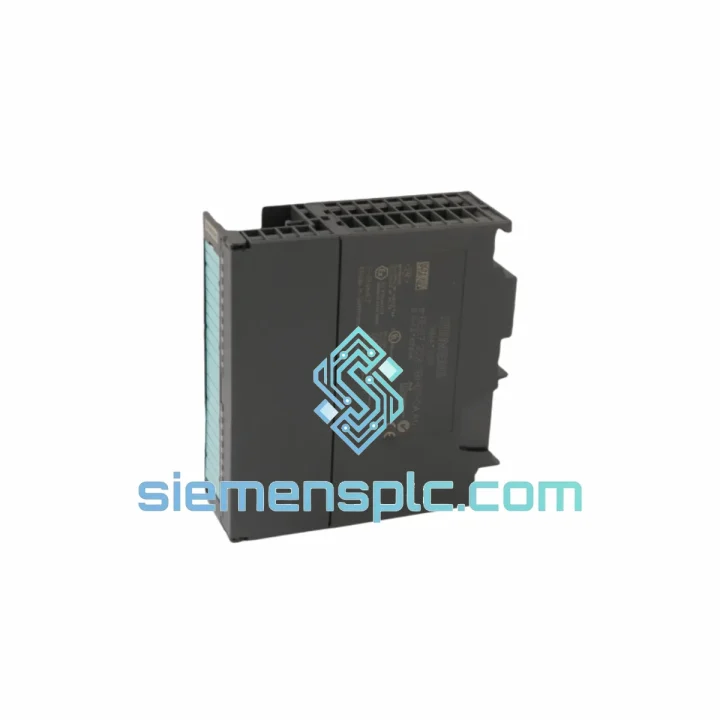

Siemens 6ES7323-1BH01-0AA0 PLC Digital I/O Module – SM 323

Siemens 6ES7323-1BH01-0AA0 SM 323 — 16-Channel Bidirectional Digital I/O Module in the S7-300 Control Architecture

The SM 323 6ES7323-1BH01-0AA0 occupies a well-defined position in the SIMATIC S7-300 signal module hierarchy: it consolidates 16 discrete input channels and 16 discrete output channels into a single 40 mm-wide module slot, eliminating the need for separate SM 321 and SM 322 modules in mixed-signal applications. Within a control loop, this module serves as the primary interface between the S7-300 backplane bus and field-level devices operating at 24 VDC — sensors, proximity switches, solenoid valves, relay coils, and indicator lamps. Its transistor-based output stage, rated at 0.5 A per channel, provides the switching speed and current capacity required for time-critical discrete sequences without the mechanical wear associated with relay outputs.

The module’s role extends beyond simple I/O buffering. Its configurable input filter delay — selectable between 0.1 ms and 0.5 ms per channel group — allows engineers to tune the debounce window to match the electrical characteristics of the connected field devices, suppressing contact bounce on mechanical switches while maintaining sub-millisecond response for solid-state sensors. This configurability is managed entirely through the STEP 7 hardware configuration or TIA Portal hardware catalog, with no physical DIP switches or jumpers required on the module body.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6ES7323-1BH01-0AA0 implements a dual-rail optocoupler isolation architecture that physically separates the 24 VDC field potential from the 5 VDC backplane logic domain. Each group of 8 input channels shares a common optocoupler barrier, providing a rated isolation voltage of 500 VAC between the field wiring and the S7-300 P-bus. This group-isolation topology is a deliberate design choice: it allows the module to tolerate transient overvoltages and ground potential differences between field device commons without propagating fault energy into the CPU backplane.

On the output side, the transistor driver stage employs a high-side sourcing configuration. Each output channel is protected by an integrated electronic current limiter that activates within microseconds of a short-circuit condition, clamping the output current before thermal damage can occur. The protection circuit resets automatically once the fault is cleared, eliminating the need for manual fuse replacement in field installations. The output stage also incorporates a freewheeling diode path for inductive loads — solenoid valves and relay coils — suppressing the back-EMF spike that would otherwise stress the transistor junction.

The module’s EMC performance is governed by its internal PCB layout: the input filter network uses RC time constants matched to the 0.1 ms and 0.5 ms delay settings, and the PCB ground plane is segmented to prevent high-frequency switching noise from the output transistors coupling into the input signal traces. The module meets IEC 61000-4-2 (ESD, 4 kV contact / 8 kV air), IEC 61000-4-4 (EFT/Burst, 2 kV), and IEC 61000-4-5 (Surge, 1 kV) immunity levels, making it suitable for installation in switchgear cabinets adjacent to variable-frequency drives and contactors.

The backplane bus interface uses the S7-300 P-bus protocol, which transfers I/O data in a synchronous, slot-addressed frame. The CPU reads the 16-bit input image and writes the 16-bit output image in a single bus cycle, with a worst-case bus cycle time determined by the number of modules in the rack. This deterministic data exchange is the foundation of the S7-300’s cycle-time consistency — a property that the 6ES7323-1BH01-0AA0 preserves by drawing a maximum of 100 mA from the 5 VDC bus rail, well within the budget of any standard S7-300 power supply module.

System Integration Benefits

• Slot density optimization: Combining 16 inputs and 16 outputs in a 40 mm slot width reduces the total module count in a rack by up to 50% compared to separate DI and DO modules, directly lowering rack hardware cost and wiring termination labor.
• Software-configurable I/O filtering: The 0.1 ms / 0.5 ms input delay is set in the STEP 7 or TIA Portal hardware configuration without any physical intervention on the module, enabling filter tuning during commissioning or maintenance without cabinet access.
• Deterministic process image update: The module participates in the CPU’s synchronous process image update cycle, ensuring that all 16 input states are captured at a consistent point in the scan cycle — a prerequisite for sequence-critical applications such as press control and conveyor interlocking.
• Integrated diagnostic transparency: The module reports short-circuit and wire-break conditions (on outputs) to the CPU diagnostic buffer, enabling STEP 7 / TIA Portal to generate timestamped fault entries without additional diagnostic hardware.
• Hot-swap mechanical compatibility: The module can be replaced on a powered S7-300 rack (with appropriate CPU configuration) using the front connector retention mechanism, reducing mean time to repair in production environments where scheduled downtime is constrained.
• ATEX Zone 2 certification: The module’s IEC 60079-15 certification permits installation in control panels located in Zone 2 hazardous areas (gas group IIC, temperature class T4), expanding its applicability to oil and gas, chemical processing, and pharmaceutical facilities.
• Consistent thermal envelope: With a rated operating range of 0 °C to +60 °C (horizontal) and a typical power dissipation of 4.5 W, the module integrates into standard S7-300 thermal budgets without requiring forced-air cooling in most industrial cabinet configurations.
• Full TIA Portal hardware catalog support: The module’s GSD data is embedded in the TIA Portal hardware catalog, enabling drag-and-drop configuration, automatic address assignment, and online/offline comparison without manual parameter entry.
• Scalable rack architecture: Up to 8 SM 323 modules can be installed in a single S7-300 rack (subject to power supply current budget), providing up to 128 DI and 128 DO points per rack without an expansion interface module.
• IEC 61131-2 compliance: Input and output electrical characteristics conform to IEC 61131-2 Type 1 (inputs) and standard transistor output specifications, ensuring interoperability with field devices from any IEC-compliant manufacturer.

Quality Assurance & Global Logistics

Every 6ES7323-1BH01-0AA0 unit supplied by siemensplc.com is sourced through traceable procurement channels with full chain-of-custody documentation. Physical inspection covers label integrity, housing condition, connector pin geometry, and firmware version verification against Siemens published revision records. Where test equipment is available, functional bench verification confirms I/O channel continuity and bus communication prior to dispatch.

Packaging uses anti-static foam inserts with humidity indicator cards, sealed in tamper-evident polyethylene bags and placed in double-wall corrugated cartons rated for international air freight handling. Export documentation — commercial invoice, packing list, certificate of origin, and product authenticity records — is prepared for each shipment to support customs clearance in the EU, North America, Southeast Asia, the Middle East, and Africa.

Logistics options from our Xiamen, China facility include DHL / FedEx / UPS express (3–7 business days to most destinations), air freight consolidation for volume orders, and sea freight for large-quantity procurement. All shipments are tracked end-to-end, with proactive exception management for customs holds or carrier delays. A 12-month warranty against manufacturing defects under normal operating conditions applies to all units. DOA claims are processed within 30 days of receipt with photographic evidence and order reference.
