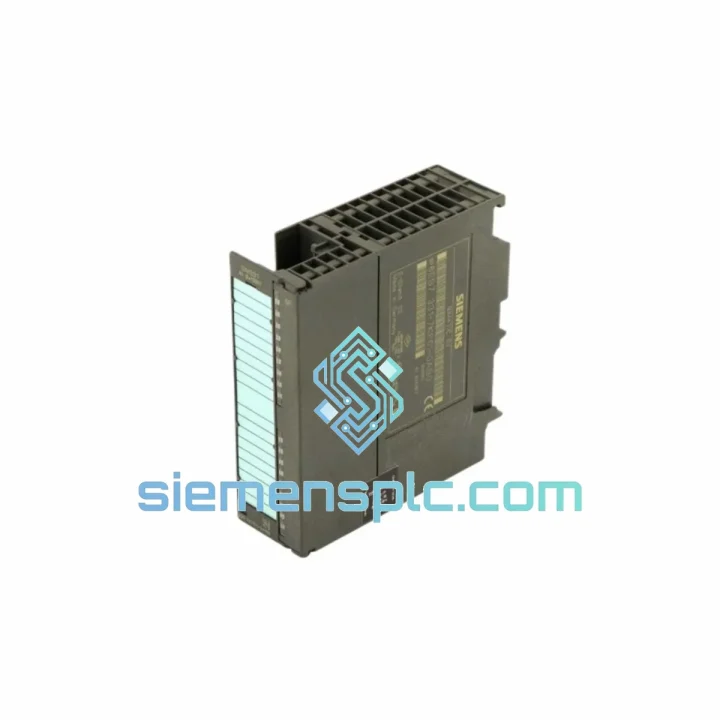

Siemens 6ES7331-7KF01-0AB0 Analog Input Module

6ES7331-7KF01-0AB0 SM331 — Every Hour of Downtime Costs You. We Ship Today.

Your S7-300 rack is dead. The analog input card is gone — no signal, no process data, no production. You’ve already pulled the module, confirmed the fault, and now you need a verified replacement on-site before the next shift. That’s exactly why this listing exists.

The Siemens 6ES7331-7KF01-0AB0 is an 8-channel universal analog input module for the SIMATIC S7-300 platform. It handles voltage, current, thermocouple, and resistance inputs on a single card — the workhorse of S7-300 analog acquisition. We stock it in Xiamen, it ships the same day you order, and it arrives configured to drop straight into your rack.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures that point to a failed 6ES7331-7KF01-0AB0:

• SF LED solid red on the module — hardware fault detected. Check STEP 7 diagnostics buffer for error code 0x0A (module not responding) or 0x25 (configuration mismatch). If the CPU shows “BF” on the DP interface simultaneously, rule out backplane bus issues first by reseating adjacent modules.
• All channels reading 32767 or 7FFF hex — overflow condition. Usually caused by an open-circuit field wire on a current input configured for 4–20 mA. Verify field wiring continuity before condemning the module. If wiring checks out, the input protection circuit on the card may be blown.
• Channels reading 32512 (7F00 hex) — underflow. Common on thermocouple inputs when the TC wire is reversed or broken. Check polarity at the front connector terminals.
• Intermittent analog values drifting ±5% with no field change — classic symptom of a failing internal reference voltage. The module will not throw a hard fault; it just lies to you. Swap the card and compare readings.
• Module not recognized after rack power cycle — check slot addressing. The SM331 does not have a physical address switch; slot position determines the logical address. If you’ve moved the module to a different slot during troubleshooting, update the hardware configuration in STEP 7 or TIA Portal and download to the CPU.

Replacement procedure — field checklist:

• Power down the rack or use hot-swap procedure if your CPU supports it (CPU 317/319 series). Standard CPUs require rack power-off.
• Photograph the front connector wiring before removal. Label each wire if not already tagged.
• Remove the front connector (it stays with the wiring harness — do not discard). The connector is reused on the replacement module.
• Slide out the old module. Slide in the replacement 6ES7331-7KF01-0AB0. No DIP switches, no address coding — slot position is the address.
• Reattach the front connector. Power up the rack.
• In STEP 7: go to Accessible Nodes → confirm the module appears in the rack view. Check the diagnostics buffer for any residual faults.
• Verify channel configuration matches your process: input type, range, and integration time must be set per channel pair in the hardware config. If the CPU retains the configuration in flash, it will push it automatically on first scan. If not, download the hardware config again.
• Confirm live process values match expected engineering units before returning the system to automatic mode.

Firmware note: The -7KF01 and -7KF02 hardware revisions are functionally interchangeable. No firmware update is required when swapping between revisions. The CPU hardware config does not distinguish between them.

Reliability in Harsh Conditions

The SM331 platform was engineered for continuous operation in environments that would kill consumer-grade electronics. The 6ES7331-7KF01-0AB0 carries an operating temperature range of 0 °C to +60 °C with no derating, and it is tested to IEC 61131-2 for vibration resistance — 10–57 Hz at 0.075 mm amplitude and 57–150 Hz at 1 g. That covers the vibration spectrum of most pump skids, compressor rooms, and motor control centers where S7-300 racks are typically mounted.

Humidity tolerance runs to 95% RH non-condensing, which matters in coastal plants, paper mills, and food processing environments where condensation is a daily reality. The galvanic isolation between channels and the backplane bus is not just a spec-sheet feature — it is the reason this module survives in installations where ground potential differences between field instruments and the control panel exceed 10 V. Without that isolation, you’d be replacing modules every six months.

Every unit we ship from Xiamen is inspected for physical integrity: connector pins, housing latches, label legibility, and ESD packaging. Modules with any sign of prior field damage, reflow soldering, or counterfeit markings are rejected. What arrives at your site is what Siemens built.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express lanes. Orders confirmed before 15:00 CST ship the same business day.

• DHL Express Worldwide: 2–4 business days to most of Europe, Southeast Asia, Middle East, and Australia. 3–5 days to North and South America.
• FedEx International Priority: 1–3 business days to the US, Canada, and key EU hubs. Recommended for critical plant shutdowns where every hour counts.
• UPS Worldwide Express: Available as an alternative carrier for destinations with stronger UPS coverage (e.g., Germany, Netherlands, UK).
• Documentation: Full commercial invoice, packing list, and HS code declaration (HS 8537.10) provided with every shipment for smooth customs clearance. We handle export licensing for standard industrial automation components — no delays on your end.
• Tracking: AWB number sent within 2 hours of dispatch. Real-time tracking link provided via email and WhatsApp.
• Emergency freight: For plant-down situations requiring next-flight-out courier, contact us directly on WhatsApp. We coordinate with freight forwarders for same-day airport pickup when standard express timelines are not acceptable.

We have shipped S7-300 modules to petrochemical plants in Saudi Arabia, automotive lines in Germany, water treatment facilities in Australia, and food processing plants in the US — all on emergency timelines. The logistics infrastructure is in place. The only variable is how quickly you contact us.
