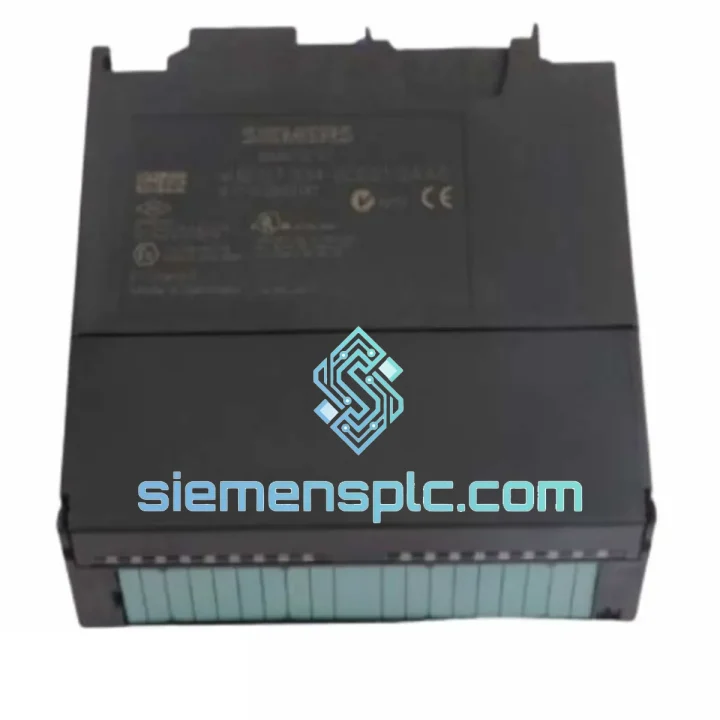

Siemens 6ES7334-0CE01-0AA0 Analog IO Module

6ES7334-0CE01-0AA0 Down? Every Minute of Downtime Costs You — We Ship Today

Your S7-300 rack just threw a fault. The analog loop is dead. The process is down. You’ve already pulled the module and confirmed it’s the 6ES7334-0CE01-0AA0 — the SM 334 combination analog I/O card. You don’t need a datasheet lecture. You need a replacement on a plane tonight.

We stock the Siemens 6ES7334-0CE01-0AA0 in Xiamen and ship globally via DHL Express and FedEx International Priority. Orders confirmed before 16:00 CST go out same day. That’s the only promise that matters when your line is stopped.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The SM 334 (6ES7334-0CE01-0AA0) is a straightforward swap, but there are four things that will burn you if you skip them:

1. Slot address is fixed by physical position — no DIP switches needed. The S7-300 backplane assigns slot numbers automatically based on rack position. When you seat the replacement module, STEP 7 / TIA Portal will recognize it at the same logical address as the failed unit — provided you don’t move it to a different slot. If you do change slots, update the hardware configuration and download to the CPU before going live.

2. Check the hardware revision (HW: / FW:) label on the module side panel. The 6ES7334-0CE01-0AA0 has had minor hardware revisions over its production life. In 99% of field swaps this is transparent, but if your project file was built against a specific revision and you’re running STEP 7 V5.4 or earlier, you may see a “module mismatch” diagnostic. Fix: open HW Config, delete the old SM 334 entry, re-insert from the catalog, and download. Takes 10 minutes.

3. Verify channel measurement type in the module parameters. This module does not use physical range-selection switches. The input/output signal type (voltage vs. current, unipolar vs. bipolar) is set entirely in software via the module parameters block in STEP 7 or TIA Portal. After swapping, confirm the parameter assignment is still correct — a CPU memory reset or accidental download of a default config can revert channels to ±10 V even if your field devices are wired for 4–20 mA. Symptom: analog value reads maximum or minimum immediately after restart.

4. Common fault codes to know:

• SF LED solid red on CPU, OB 122 triggered: Module not recognized or parameter error. Re-download hardware config.
• Analog channel reads 32767 or –32768 (wire-break / overflow): Check field wiring continuity and confirm signal type matches parameter setting.
• Intermittent analog drift under load: Often a backplane connector issue on aged racks — reseat the module and inspect the bus connector pins before condemning the card itself.
• Module powers up but outputs don’t respond: Confirm the CPU is in RUN mode and the output enable bit (QW address) is being written by the program. A stopped CPU leaves outputs at their last value or zero depending on OB 86 configuration.

Reliability in Harsh Conditions

The 6ES7334-0CE01-0AA0 was engineered for continuous duty in industrial environments where consumer-grade electronics simply fail. The module’s conformal-coated PCB resists condensation and airborne contaminants common in food processing, chemical, and coastal facilities. Vibration tolerance meets IEC 60068-2-6 (sinusoidal, 10–58 Hz, 0.075 mm amplitude; 58–150 Hz, 1 g) — meaning it holds up on machine frames subject to motor and conveyor vibration without contact fatigue on the backplane connector.

Thermal performance is rated to 60 °C ambient without derating, and the module has been validated for operation in environments with relative humidity up to 95% (non-condensing) per IEC 60068-2-3. In practice, we’ve seen these modules run continuously for 10+ years in steel mill auxiliary panels and offshore platform control rooms — environments that would destroy lesser hardware within months.

Every unit we ship undergoes a pre-dispatch power-on functional test: all analog input channels are stimulated with calibrated signals and output channels are verified against a reference meter. We do not ship modules that have not passed this check. ESD-safe packaging with foam-lined cartons ensures the module arrives in the same condition it left our warehouse.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major international cargo gateway with direct DHL and FedEx flight connections to Europe, North America, Southeast Asia, and the Middle East.

Standard express routing:

• Europe (DE, NL, FR, UK, PL): DHL Express — typically 3–5 business days door to door
• North America (US, CA, MX): FedEx International Priority — typically 3–5 business days
• Southeast Asia (SG, MY, TH, ID, VN): DHL Express — typically 2–4 business days
• Middle East (AE, SA, QA): FedEx or DHL — typically 3–5 business days
• Australia / NZ: DHL Express — typically 4–6 business days

All shipments include a commercial invoice with correct HS code (8537.10) and declared value for customs clearance. We prepare export documentation same day for orders confirmed before 16:00 CST. Tracking numbers are sent via email and WhatsApp within 2 hours of dispatch. For time-critical situations, we can arrange airport-to-airport freight with local customs broker coordination — contact us directly to discuss.

Import duties and VAT are the buyer’s responsibility unless a DDP (Delivered Duty Paid) arrangement is agreed in advance. We can advise on typical duty rates for your destination country upon request.
