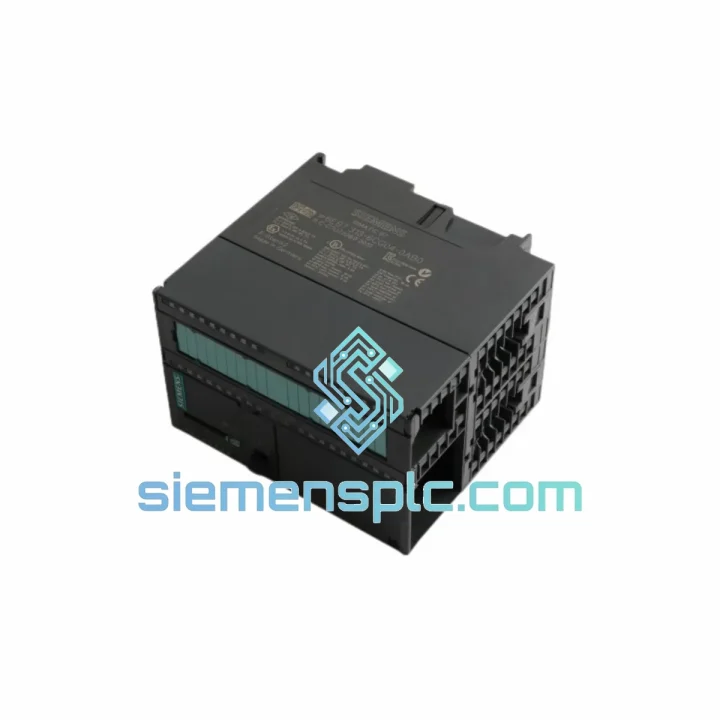

Siemens 6ES7354-1AH01-0AE0 Positioning Module

6ES7354-1AH01-0AE0 In Stock — Every Hour of Downtime Costs You More Than This Module

Your S7-300 line just tripped. The HMI is frozen, the servo axis won’t home, and production is bleeding money by the minute. You’ve traced the fault to the FM 354 positioning submodule — and you need a verified replacement on-site before the next shift. That’s exactly why we stock the Siemens 6ES7354-1AH01-0AE0 in Xiamen, pre-tested, ESD-packed, and ready for same-day dispatch via DHL Express or FedEx Priority.

No waiting on factory lead times. No grey-market gambles. One call, one tracking number, one less crisis.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field calls on S7-300 positioning systems, these are the failure patterns that actually bring lines down — and what to do about them when you’re swapping in a replacement 6ES7354-1AH01-0AE0.

Fault Code 0x8600 / Module Not Recognized on Backplane
Nine times out of ten this is a seating issue or a failed backplane bus connector on the module itself. Before condemning the FM 354, reseat it in the same slot and check the bus connector pins for bent contacts. If the fault persists after reseating, the module’s backplane ASIC has failed — replace the module.

Axis Drifts After Homing / Reference Point Lost
The FM 354 stores the reference point offset in battery-backed SRAM. If the onboard lithium cell (CR2032 equivalent, soldered) has discharged, the reference offset is lost on every power cycle. On a replacement module, you must re-execute the homing sequence (FC HOMING or equivalent) and re-teach the reference cam position. Do not assume the replacement module retains the previous machine’s reference data.

Drive Enable Output (DO 0.0) Not Activating
Check the front connector wiring against the FM 354 manual (A5E00059543). Pin 20 is the drive enable output; it requires the module to be in RUN mode and the axis to be in the ENABLED state via FC ENABLE. A common mistake after module swap is forgetting to re-download the FM 354 parameter block (DB) — the axis stays in STOP state and the enable output never fires.

Encoder Signal Fault / F-Bit Set in Status Word
The FM 354 monitors encoder signal quality continuously. After installing a replacement module, verify encoder cable shield is grounded at the front connector (pin 1 / shield terminal) and not at the drive end. Double-ended shield grounding on encoder cables is the single most common cause of spurious encoder faults in retrofitted machines.

Replacement Procedure — Step by Step

1. Set the S7-300 CPU to STOP. Confirm all drives are inhibited and axis motion has ceased.
2. Power down the 24 V DC supply to the rack. Do not hot-swap the FM 354 — the backplane bus does not support live insertion on this series.
3. Disconnect the 40-pin front connector. Label all wires before removal if the connector is not already documented.
4. Release the module locking screw (top and bottom), slide the FM 354 out of the slot.
5. Insert the replacement 6ES7354-1AH01-0AE0 into the same slot number. Slot assignment is critical — the STEP 7 hardware configuration references the physical slot.
6. Reconnect the front connector. Verify pin 1 (encoder shield), pin 20 (drive enable), and pins 21–28 (encoder A/B/Z signals) are correctly seated.
7. Power up the rack. The CPU should recognize the FM 354 within 2–3 seconds. If SF LED stays red, check the hardware configuration in STEP 7 matches the installed firmware version.
8. Download the FM 354 parameter DB (typically DB100 or as configured). Execute the homing sequence. Verify axis moves to reference point and status word bit 4 (Referenced) sets to 1.
9. Run a slow-speed test traverse across the full axis travel before returning to automatic mode.

Firmware Version Note: The 6ES7354-1AH01-0AE0 carries firmware version AH01. If your STEP 7 project was configured against an earlier firmware (e.g., AA00 or AB01), you may see a firmware mismatch warning. In most cases the module operates normally — but re-save and re-download the hardware configuration to clear the warning and ensure parameter compatibility.

Reliability in Harsh Conditions

The FM 354 was not designed for a climate-controlled server room. It was built for the floor — and the 6ES7354-1AH01-0AE0 reflects that in every design decision.

The module’s conformal-coated PCB resists condensation and airborne contaminants common in food processing, foundry, and coastal manufacturing environments. Operating temperature range of 0 °C to +60 °C covers the vast majority of industrial enclosure conditions without forced cooling. The backplane connector uses gold-plated contacts rated for 100+ insertion cycles, which matters when you’re doing your third emergency swap in two years on a high-cycle machine.

Vibration resistance meets IEC 60068-2-6 (sinusoidal, 10–58 Hz, 0.075 mm amplitude; 58–500 Hz, 1 g). Shock resistance meets IEC 60068-2-27 (15 g, 11 ms half-sine). These are not marketing numbers — they’re the same specs that keep FM 354 modules running on press lines and stamping machines where the floor shakes every 4 seconds.

EMC immunity is tested to EN 61000-4-2 (ESD), EN 61000-4-4 (EFT/burst), and EN 61000-4-5 (surge). In practice, this means the module survives the kind of electrical noise generated by large servo drives switching at 8–16 kHz in the same cabinet — provided the encoder cable shielding is correctly implemented (see Troubleshooting section above).

Units shipped from our Xiamen warehouse are stored in climate-controlled conditions at 15–25 °C and 30–70% RH. Every module is individually bagged in anti-static PE with silica gel desiccant before boxing. Long-term storage units are vacuum-sealed. You receive a module that is electrically and mechanically identical to factory-new condition.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL, FedEx, and UPS gateway access. Here’s what the timeline looks like from the moment you confirm your order:

Day 0 — Order Confirmation: Purchase order or WhatsApp confirmation received before 15:00 CST triggers same-day picking and inspection. The 6ES7354-1AH01-0AE0 is pulled from shelf stock, powered on for a 15-minute backplane communication test, and photographed for your records.

Day 0–1 — Export Documentation: Commercial invoice, packing list, and HS code declaration (8537.10) prepared. For EU destinations, EUR.1 movement certificate available on request to support preferential duty rates. For US imports, HTS 8537.10.9170 applies — we provide accurate valuation documentation to avoid customs holds.

Day 1 — Dispatch: Module ships via DHL Express Worldwide or FedEx International Priority. Both services offer door-to-door tracking with proactive exception alerts. We provide the AWB number within 2 hours of handover to the carrier.

Transit Times (typical, not guaranteed):

• Southeast Asia (SG, MY, TH, VN): 2–3 business days
• Europe (DE, FR, IT, PL, NL): 3–5 business days
• North America (US, CA, MX): 4–6 business days
• Middle East (AE, SA, QA): 3–4 business days
• Australia / New Zealand: 4–5 business days

For genuine production emergencies, contact us via WhatsApp before placing the order. We can coordinate with DHL’s On-Demand Delivery service and pre-alert customs brokers in your country to eliminate clearance delays. We’ve shipped to 47 countries. We know where the friction points are, and we work around them.
