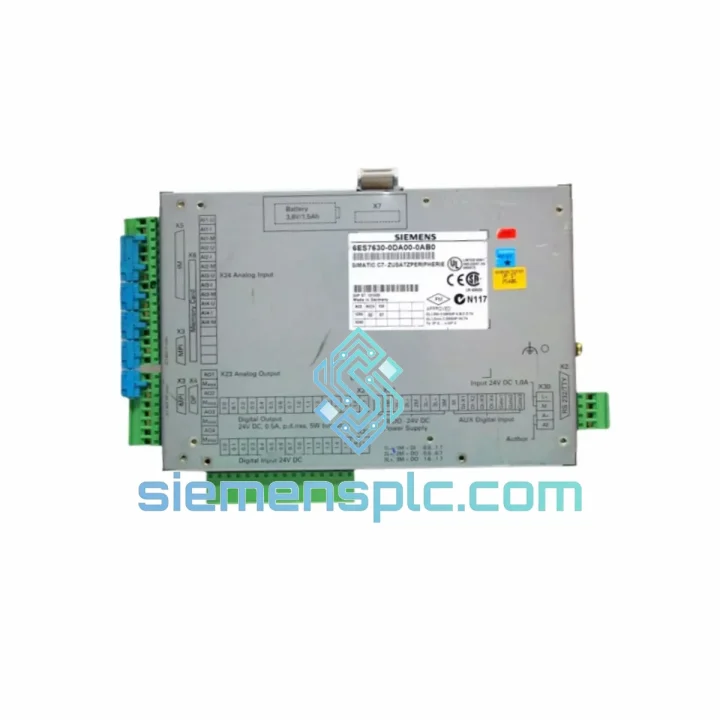

Siemens 6ES7630-0DA00-0AB0 I/O Expansion Module

6ES7630-0DA00-0AB0 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Your C7 line is down. Every minute costs money — rejected batches, idle labor, missed delivery windows. The Siemens 6ES7630-0DA00-0AB0 SIMATIC C7 I/O Expansion Module is on the shelf right now at our Xiamen warehouse. We’ve handled enough emergency callouts to know that the difference between a 4-hour fix and a 4-day nightmare is whether the part is physically in someone’s hands. Ours are.

This is not a catalog listing. This is a field-ready unit, tested, packed, and waiting for your DHL waybill number.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fifteen years of C7 field work distilled into what actually matters when you’re standing in front of a dead panel at 2 AM:

Most Common Failure Modes on 6ES7630-0DA00-0AB0:

• I/O Bus Communication Fault (SF LED solid red): The module loses handshake with the C7 CPU. Before condemning the module, reseat the bus connector — corrosion on the gold fingers is a frequent culprit in humid environments. Clean with IPA and a firm reseat. If the SF LED persists after reseat, the module’s internal bus ASIC has likely failed. Replace the unit.
• Partial I/O Loss (some channels dead, others live): Usually caused by a field wiring short that exceeded the output driver’s current limit. Check the field wiring first. If the driver IC has latched off, a power cycle may restore it temporarily — but the root cause must be fixed or the replacement will fail within days.
• Module Not Recognized in STEP 7 HW Config: Confirm you are using the correct C7 hardware catalog entry. The 6ES7630-0DA00-0AB0 must be inserted at the correct slot position in the C7 hardware configuration — it is not auto-detected like ET 200 modules. Mismatch between physical slot and STEP 7 config generates a configuration error (OB 85 or OB 122 call).
• Intermittent Faults Under Vibration: The C7 bus connector is a known weak point on aging installations. Inspect the connector housing for cracks. Apply a small amount of connector retention clip pressure if the latch has worn.

Replacement Procedure — Field Checklist:

1. Power down the C7 panel completely. Do not hot-swap this module — the C7 I/O bus does not support live insertion.
2. Photograph the existing wiring before disconnecting any terminals. Label every wire if labels are missing.
3. Disconnect field wiring from the I/O terminal block. Note the terminal block orientation — it is keyed but double-check.
4. Release the bus connector latch and slide the module off the C7 system bus.
5. Seat the replacement 6ES7630-0DA00-0AB0 firmly until the bus connector clicks. Verify the latch is fully engaged.
6. Reconnect field wiring per your photograph. Torque terminal screws to 0.5–0.6 Nm — undertorqued terminals cause intermittent faults under vibration.
7. Power up. The C7 CPU will perform a self-test. Monitor the SF and BF LEDs. Both should extinguish within 5 seconds if the hardware config matches.
8. In STEP 7, go online and check the module status in HW Config. Confirm no configuration mismatch errors.
9. Force-test each I/O channel from the STEP 7 variable table before returning the machine to production.

No DIP switches or address coding are required — the 6ES7630-0DA00-0AB0 derives its I/O address map from its physical slot position on the C7 bus. Firmware is embedded and does not require field updating. If your replacement unit has a different firmware revision than the original, STEP 7 may flag a version mismatch warning — this is typically non-critical but verify against the Siemens C7 compatibility matrix for your specific CPU firmware level.

Reliability in Harsh Conditions

The SIMATIC C7 platform was engineered for the factory floor, not the server room. The 6ES7630-0DA00-0AB0 carries the same industrial hardening as the rest of the C7 family:

• Vibration: Rated to IEC 60068-2-6 sinusoidal vibration profiles — handles the constant mechanical stress of press lines, compressor rooms, and mobile equipment enclosures without connector fatigue.
• Shock: Tested to IEC 60068-2-27 half-sine shock pulses. The module survives the kind of cabinet door slams and forklift impacts that kill consumer-grade electronics.
• Temperature: Operating range 0°C to +60°C ambient. Storage down to -40°C. Suitable for unheated outdoor enclosures in temperate climates and high-heat foundry environments alike.
• Humidity: Rated to 95% relative humidity, non-condensing (IEC 60068-2-30). Conformal coating on the PCB provides additional protection against condensation in coastal and tropical installations.
• EMC: Compliant with EN 61000-6-2 (industrial immunity) and EN 61000-6-4 (emissions). Designed to operate alongside variable-frequency drives, welding equipment, and high-current contactors without signal corruption.

Units supplied from our Xiamen stock are stored in climate-controlled conditions with anti-static packaging. Every unit is powered on and bus-communication verified before dispatch. We do not ship untested modules.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the country’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here is exactly what happens after you confirm your order:

• Same-day dispatch for orders confirmed before 15:00 CST. The module is packed in anti-static foam, double-boxed, and handed to the carrier the same afternoon.
• DHL Express Worldwide: Transit time 1–3 business days to most of Europe, Southeast Asia, the Middle East, and North America. Real-time tracking from the moment the waybill is generated.
• FedEx International Priority: Alternative routing for destinations where FedEx has stronger coverage — particularly useful for remote industrial sites in Australia, South America, and Eastern Europe.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. For destinations requiring additional customs documentation (e.g., EUR.1, Form A), advise us at order placement and we will prepare accordingly.
• HS Code: 8537.10 (Boards, panels, consoles for electric control) — standard classification for PLC modules, accepted without issue at most customs authorities.
• Incoterms: EXW Xiamen or DDP (Delivered Duty Paid) available on request for customers who need a landed cost with no customs surprises.

We have shipped to over 40 countries. If your plant is in Germany, Thailand, Brazil, or Saudi Arabia — we have done it before and we know the paperwork.
