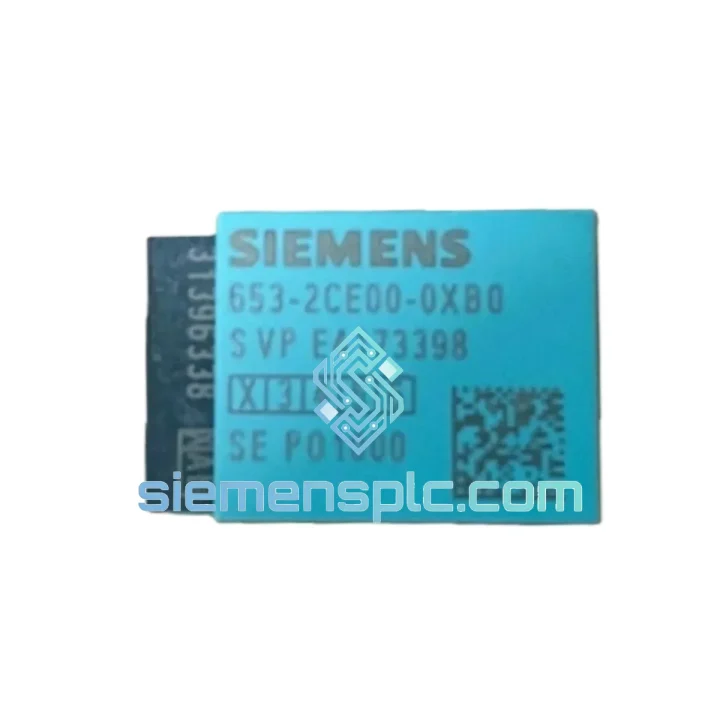

Siemens 6ES7653-2CE00-0XB0 Expansion Card

6ES7653-2CE00-0XB0 Down? Every Minute Offline Costs You Money — We Ship Today

Your SINAUT ST7 telecontrol node just dropped off the SCADA map. The TIM module is throwing faults, the expansion card is dead, and your control room is watching a flat line where live telemetry should be. Whether it’s a substation in the middle of a grid event, a pipeline pump station 300 km from the nearest city, or a water treatment facility running on a skeleton crew at 2 AM — the 6ES7653-2CE00-0XB0 is the part that brings it back. We stock it. We ship it today from Xiamen. DHL Express to your door in 48–72 hours, anywhere on the planet.

This is not a catalog listing. This is a field-ready replacement sourced, inspected, and packed for engineers who cannot afford to wait two weeks for a distributor to locate stock.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fault Scenario Recognition

Before pulling the card, confirm the fault is actually the 6ES7653-2CE00-0XB0 and not the TIM module itself or a backplane issue. In STEP 7 / SINAUT ST7 software, check the diagnostic buffer of the TIM module. Common fault codes pointing to a failed expansion card include:

• 0x2521 / 0x2522 — Internal hardware fault on TIM expansion slot. The TIM detects the card but cannot initialize it. Card replacement is the primary corrective action.
• 0x2500 — Configuration mismatch. The TIM expects an expansion card (configured in SINAUT ST7 project) but reads no card present. Check physical seating first; if reseating fails, the card connector or the card itself is defective.
• No fault code, but communication channels missing — The expansion card provides additional channel capacity. If your configured channel count exceeds what the base TIM supports, and the card is absent or dead, those channels simply disappear from the network view without a hard fault. Engineers often chase WAN link issues for hours before realizing the expansion card is the root cause.

Step-by-Step Replacement Procedure

1. Power down the S7-300 rack. The 6ES7653-2CE00-0XB0 is not hot-swappable. Attempting to swap under power risks damaging the TIM module’s expansion slot connector — a far more expensive repair.
2. Document your current TIM configuration. Before removing anything, open SINAUT ST7 and export or screenshot the TIM’s channel configuration, baud rates, and protocol settings. You will need this to verify the replacement card initializes correctly.
3. Remove the TIM module from the S7-300 rack. The expansion card is accessed by removing the TIM from the backplane first. Do not attempt to insert or remove the expansion card with the TIM still mounted in the rack — the connector geometry does not allow safe access.
4. Extract the old expansion card. The card seats into a dedicated slot on the TIM module body. Use a flat non-conductive tool to release the retention clip if present. Handle by edges only — ESD damage to the card’s interface logic is a real risk and will not be covered under warranty.
5. Inspect the TIM expansion slot connector. Look for bent pins, corrosion, or debris. A damaged slot on the TIM means the new card will fail immediately. Clean with isopropyl alcohol (99%) and a fine brush if contamination is present.
6. Seat the 6ES7653-2CE00-0XB0 replacement card. Align carefully and press firmly until the retention mechanism clicks. There is no DIP switch or address configuration on this card — it is auto-recognized by the TIM module firmware.
7. Reinstall the TIM module into the S7-300 rack. Torque the module retaining screw to finger-tight — over-torquing cracks the plastic housing.
8. Power up and verify. In SINAUT ST7, the TIM should come online within 30–60 seconds. Check the diagnostic buffer for any residual faults. If fault 0x2500 persists after confirmed card seating, verify that your SINAUT ST7 project configuration matches the hardware — specifically that the expansion card is enabled in the TIM’s hardware configuration dialog.
9. Firmware note. The 6ES7653-2CE00-0XB0 does not carry independent firmware — it operates under the TIM module’s firmware. However, if your TIM firmware is below V3.0, certain expansion card features may not be fully supported. Check the TIM firmware version via STEP 7 online diagnostics and update if required before declaring the replacement successful.

Common Pitfall: Engineers sometimes replace the expansion card and still see communication failures because the SINAUT ST7 project was never re-downloaded to the TIM after the hardware change. Always perform a full download of the TIM configuration from SINAUT ST7 after any hardware replacement — even if the configuration has not changed.

Reliability in Harsh Conditions

The SINAUT ST7 platform was engineered for exactly the environments where reliability is non-negotiable. The 6ES7653-2CE00-0XB0 expansion card inherits the same industrial-grade design philosophy that has made S7-300 TIM modules the backbone of remote telemetry infrastructure across four continents.

Vibration resistance is rated to IEC 60068-2-6 standards — the card maintains electrical contact integrity under continuous mechanical vibration typical of pump stations, compressor rooms, and rail-side control cabinets. The plug-in connector design uses a positive-retention mechanism that does not rely on friction alone, preventing intermittent contact faults that plague lesser expansion cards in high-vibration environments.

Thermal performance covers an operating range of 0°C to +60°C ambient, with storage tolerance down to -40°C. In practice, this means the card survives the temperature cycling that occurs in outdoor cabinets across seasons — the thermal expansion and contraction cycles that crack solder joints on consumer-grade electronics have no meaningful effect on this hardware over its rated service life.

Humidity and condensation tolerance is addressed through conformal coating on the PCB assembly, providing protection against moisture ingress in environments where cabinet sealing is imperfect — a reality in older substations and field installations where gaskets have aged. The card is rated to 95% relative humidity non-condensing, covering the majority of industrial deployment scenarios without additional protective measures.

EMC immunity is certified to EN 61000-6-2 (industrial immunity standard), meaning the card operates without degradation in environments with significant electromagnetic interference — variable frequency drives, high-current switching equipment, and RF sources that are common in the same facilities where SINAUT ST7 is deployed.

Every unit we ship has been stored in climate-controlled conditions in ESD-safe packaging. We do not warehouse product in uncontrolled environments. If a card has been exposed to conditions outside its rated storage range, we do not ship it.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-connected cities in Asia, with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express hubs operating daily international flights.

Standard dispatch process:

• Order confirmed before 14:00 CST → same-day dispatch. Order confirmed after 14:00 CST → next business day dispatch.
• Each unit is individually wrapped in anti-static ESD bags, placed in foam-lined rigid packaging, and sealed with tamper-evident tape. The outer carton is labeled with part number, quantity, and destination for customs clearance efficiency.
• Commercial invoice and packing list are prepared to match your purchase order exactly — critical for smooth customs clearance in regulated markets including the EU, USA, and Australia.
• HS Code 8537.10 is pre-declared for this product category, reducing customs query delays at most major entry points.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 1–2 business days
• Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days
• Europe (Germany, UK, Netherlands, Poland): 3–5 business days
• North America (USA, Canada, Mexico): 3–5 business days
• South America (Brazil, Chile, Colombia): 5–7 business days
• Africa (South Africa, Nigeria, Egypt): 4–6 business days

Tracking numbers are issued within 2 hours of dispatch and sent directly to your email. For urgent shipments, we can arrange Saturday delivery and hold-at-location options through DHL on request. If your site requires a specific carrier due to import licensing or local customs broker relationships, advise us at the time of order and we will accommodate.

We have shipped to over 40 countries. Customs documentation, export licensing for dual-use classification checks, and certificate of origin (Form E for ASEAN, EUR.1 for EU) are handled in-house — no third-party freight forwarder delays.
