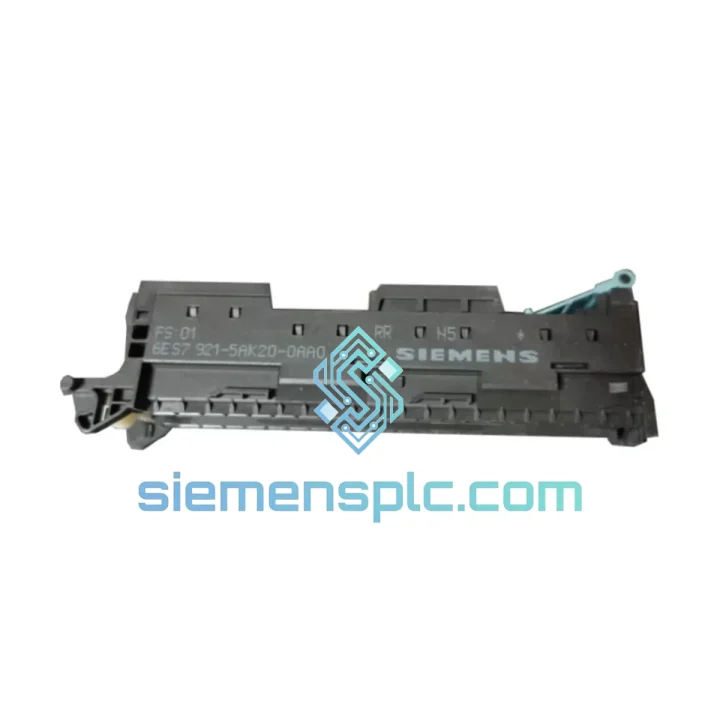

Siemens 6ES7921-5AK20-0AA0 Front Connector

6ES7921-5AK20-0AA0 Front Connector: Stop the Clock on Your Downtime — Ships Today from Xiamen

Your S7-300 rack is dead. The line is stopped. Every minute costs money. The Siemens 6ES7921-5AK20-0AA0 — the 20-pin screw-type front connector that bridges your SM signal module to field wiring — is a deceptively small part with an outsized impact when it fails. Loose terminals, cracked housings, corroded contacts: any of these will take down an entire I/O slice and leave your CPU throwing SF faults with no obvious cause. We stock this connector in Xiamen and can have it moving toward your facility within hours of order confirmation.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, here is what actually goes wrong with the 6ES7921-5AK20-0AA0 and what to watch for when you swap it out:

Fault Symptom 1 — SF LED on, I/O channel group dead: The CPU is running but one or more SM modules show no activity. Before condemning the SM card itself, pull the front connector and inspect every screw terminal under a flashlight. A single loose wire on a 24 V supply pin will collapse the entire module’s I/O. Re-torque all terminals to 0.8 Nm minimum. If the connector housing is cracked or the terminal block has visible arc marks, replace the connector — not the SM module.

Fault Symptom 2 — Intermittent I/O faults, no consistent pattern: Vibration-induced micro-arcing at the screw terminals. This is common in press, stamping, and compressor environments. The fix is a new 6ES7921-5AK20-0AA0 with fresh terminal screws, plus ferrule-crimped wire ends on every conductor. Bare stranded wire under a screw terminal will work loose over time — ferrules are non-negotiable in high-vibration installations.

Fault Symptom 3 — Module recognized by CPU but analog values stuck or drifting: On SM 331/332 analog modules, a poor connection on the shield/ground pin (pin 20) causes reference voltage drift. Check continuity from the connector’s ground terminal to the cabinet PE bar. Resistance above 0.5 Ω is a problem.

Replacement Procedure (no CPU stop required for hot-swap capable racks):

1. In STEP 7 or TIA Portal, note the current I/O configuration for the affected slot — take a screenshot of the hardware config.
2. Isolate field wiring: switch off the 24 V supply feeding the SM module’s field side. Do not rely on software alone.
3. Loosen the front connector’s locking screw (Phillips, top of connector). Swing the connector forward and lift off.
4. Label every wire before removal if they are not already marked. The 6ES7921-5AK20-0AA0 uses a fixed terminal layout — pin 1 is top-left when the connector is facing you.
5. Transfer wires to the new connector one at a time. Torque each screw to 0.8–1.2 Nm. Use a calibrated torque screwdriver — guessing torque is how you get back here in six months.
6. Snap the new connector onto the SM module, tighten the locking screw, restore 24 V field supply.
7. No firmware update, no address switch, no re-parameterization required — the 6ES7921-5AK20-0AA0 is passive hardware. The SM module retains its slot address from the backplane.
8. Force a diagnostic read in STEP 7 (PLC → Module Information) to confirm the SM module is back online with no channel faults.

Note on spring-terminal alternative: If you are considering switching to the 6ES7921-5AH20-0AA0 (spring-clamp version) for faster re-wiring, be aware that spring terminals require a flat-blade insertion tool and have a lower vibration tolerance in some installations. For heavy industrial environments, screw terminals remain the field-proven choice.

Reliability in Harsh Conditions

The 6ES7921-5AK20-0AA0 is not a delicate office component. It is built to Siemens’ SIMATIC S7-300 environmental specification, which means it has been validated against the conditions that actually exist on factory floors — not just laboratory benchmarks.

Vibration: Rated to IEC 60068-2-6 (sinusoidal vibration) and IEC 60068-2-27 (shock). In practice, this covers the vibration profiles of most conveyor drives, hydraulic power units, and compressor rooms. The screw-terminal design provides a mechanically positive connection that does not rely on spring force alone — critical in environments where resonance frequencies can work spring contacts loose over time.

Temperature cycling: The 0 °C to +60 °C operating range covers the majority of industrial panel installations, including outdoor cabinets in temperate climates. The -40 °C storage rating means units stored in unheated warehouses or shipping containers arrive at site without cold-soak damage to the terminal block plastic.

Humidity and condensation: IP20 protection is the baseline, but the connector’s terminal block is designed with creepage and clearance distances that comply with IEC 60664-1 for pollution degree 2 environments — meaning light condensation and non-conductive dust will not cause tracking failures. For environments with heavy condensation or conductive contamination, ensure the cabinet has adequate thermal management before installation.

EMC: As part of the SIMATIC S7-300 system, the connector is designed to maintain signal integrity in environments with significant electromagnetic interference. Proper shielding of analog signal cables, terminated at the connector’s shield clamp, is essential for SM 331/332 analog modules operating near variable-frequency drives or large contactors.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is deliberate: it gives us the fastest possible transit times to Southeast Asia, Europe, the Middle East, and the Americas.

Standard express routing (DHL / FedEx Priority):

• Southeast Asia (Singapore, Thailand, Vietnam, Malaysia): 2–3 business days door-to-door
• Europe (Germany, Netherlands, Poland, UK): 3–5 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• North America (USA, Canada, Mexico): 4–6 business days
• Australia / New Zealand: 4–5 business days

Order cut-off: Orders confirmed and paid before 14:00 CST are processed and handed to the carrier the same business day. You receive a tracking number within 2 hours of dispatch.

Export documentation: Commercial invoice, packing list, and certificate of origin are prepared as standard. For customers requiring FORM E (ASEAN-China FTA), EUR.1, or specific customs declarations, notify us at order placement. We handle all export compliance — you focus on getting your line back up.

Emergency freight: For genuine production emergencies, contact us via WhatsApp at +86 18359268345 before placing your order. We can arrange same-day courier pickup and provide a real-time ETA based on your destination airport’s inbound flight schedule.
