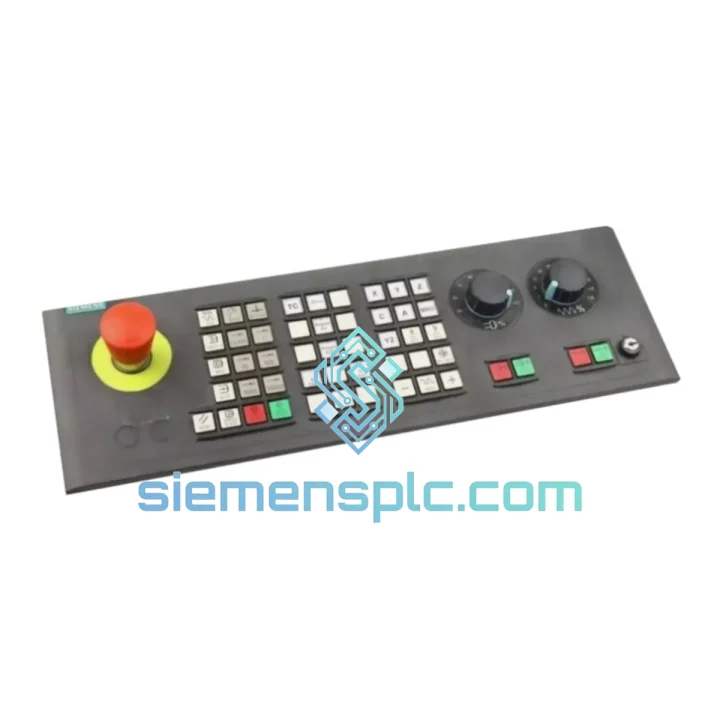

Siemens 6FC5303-0AF22-0AA1 CNC Operator Panel

Siemens 6FC5303-0AF22-0AA1 — Stop the Clock on Your Downtime. Ship Today.

Every hour your Sinumerik 802D machine sits idle costs real money. A failed MCP (Machine Control Panel) is one of the most common single-point failures that brings an entire CNC cell to a halt — and sourcing the right replacement fast is the only thing that matters. The Siemens 6FC5303-0AF22-0AA1 is in stock at our Xiamen warehouse right now. We’ve shipped this exact part to machine shops in Germany, Thailand, Mexico, and South Africa — all with the same urgency you’re feeling right now. Don’t wait for a distributor’s lead time. Contact us directly.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of 802D MCP failures in the field, here’s what actually goes wrong and what you need to watch before you swap the panel:

Common Failure Modes:

• Membrane keypad dead zones: The most frequent failure. Caused by repeated mechanical stress on the polyester membrane layer. Symptom: certain keys register intermittently or not at all. The NCU logs will show missing operator inputs or axis-select errors. A full MCP replacement is the only reliable fix — membrane repair kits exist but rarely hold in production environments.
• MPI communication dropout: The panel loses communication with the NCU. You’ll see alarm 380000 – MCP not responding or 380001 – MCP communication error on the HMI. Before replacing the MCP, check the MPI cable termination resistors (120 Ω at both ends of the bus) and verify the MPI address is set correctly — default is node address 6 for the MCP.
• 24 V DC power rail failure: The panel draws approximately 0.5 A at 24 V. A blown fuse on the cabinet’s 24 V distribution rail will kill the panel entirely. Always check the supply voltage at the MCP connector (X1) before condemning the panel itself.
• Backlight failure (display connector): The 6FC5303-0AF22-0AA1 drives an external operator display via a dedicated connector. If the display goes dark but the machine still responds to keypad inputs, the issue is the display cable or the display unit — not the MCP.

Replacement Procedure — Field Checklist:

• Power down the machine and lock out / tag out (LOTO) the main cabinet.
• Photograph the existing MPI cable routing and connector orientation before disconnecting.
• Note the MPI node address set on the old panel (check the rotary switch or DIP switch block on the rear of the unit — typically SW1). The replacement must be set to the same address before installation.
• Disconnect the 24 V DC supply connector (X1) and the MPI bus connector (X2). On some machine variants there is also a handwheel connector (X3) — label it before removal.
• Remove the four M4 mounting screws from the panel cutout. The panel slides forward out of the cabinet door.
• Install the new 6FC5303-0AF22-0AA1. Set the MPI address switch to match the original (address 6 in standard configurations).
• Reconnect all cables. Power up. The NCU should detect the MCP within 5 seconds of boot. If alarm 380000 persists, cycle power once more — the 802D NCU sometimes requires a cold boot to re-enumerate the MPI bus after a panel swap.
• Run a full axis jog test and verify all function keys (feed override, spindle override, axis select) respond correctly before releasing the machine to production.

Firmware Note: The 6FC5303-0AF22-0AA1 hardware revision (0AA1) is compatible with all Sinumerik 802D NCU firmware versions from V1.4 onward. If your machine is running a very early firmware (pre-V1.4), contact us — we can advise on the correct hardware revision.

Reliability in Harsh Conditions

CNC machine environments are not kind to electronics. Coolant mist, metallic dust, vibration from spindles running at 12,000 RPM, and ambient temperatures that swing 30 °C between morning startup and afternoon production — the 6FC5303-0AF22-0AA1 is built to handle all of it.

• IP54 front panel sealing blocks coolant spray and swarf ingress at the operator interface. The membrane keypad has no exposed PCB traces on the front face.
• Conformal coating on the internal PCB protects against humidity and condensation — critical in facilities without climate-controlled cabinets.
• Vibration resistance meets IEC 60068-2-6 (sinusoidal) and IEC 60068-2-27 (shock) standards. The panel is designed to survive the mechanical shock of a machine crash without losing its MPI configuration.
• Wide temperature tolerance (0 °C to +55 °C operating) covers foundry environments, outdoor enclosures in tropical climates, and cold-start conditions in northern European winters.
• Gold-plated connector contacts on the MPI and power connectors resist oxidation in humid or chemically aggressive atmospheres — a detail that matters after years of service.

Every unit we ship has been inspected for physical integrity, connector condition, and label authenticity. ESD-safe anti-static packaging protects the panel during transit. We do not ship loose in bubble wrap.

Global Express Logistics

Our Xiamen warehouse is positioned specifically for fast international dispatch. Xiamen Gaoqi International Airport has direct cargo connections to DHL and FedEx hubs in Hong Kong, Shanghai, and Guangzhou, enabling same-day handover to express networks for orders confirmed before 15:00 CST.

• DHL Express: Europe (Germany, Poland, Czech Republic, Turkey) — typically 3–5 business days door to door. Tracking active within 4 hours of pickup.
• FedEx International Priority: North America (USA, Canada, Mexico) — 3–5 business days. Ideal for automotive and aerospace supply chains with strict delivery windows.
• DHL / FedEx to Southeast Asia: Thailand, Vietnam, Indonesia, Malaysia — 2–4 business days. We handle export customs documentation including commercial invoice, packing list, and HS code declaration (8537.10).
• Middle East & India: UAE, Saudi Arabia, India — 4–6 business days via DHL Express. We have experience with UAE customs requirements and Indian import documentation.
• Emergency same-day dispatch: For confirmed orders before 12:00 CST, we can arrange same-day pickup with DHL on-demand. Contact us via WhatsApp for real-time coordination.

All shipments include full commercial invoice, ESD-safe inner packaging, foam-lined outer carton, and a printed inspection report. Insurance is available on request. We provide the AWB number within 2 hours of dispatch so your team can track the shipment in real time.
