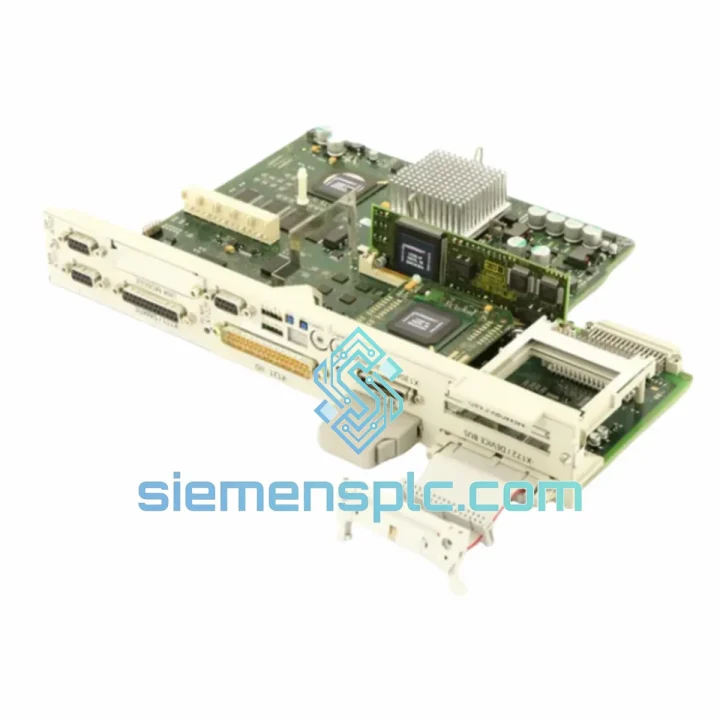

Siemens 6FC5357-0BB35-0AA0 CNC Drive Module

6FC5357-0BB35-0AA0 — Stop the Clock on Your Downtime. Ship Today.

Your SINUMERIK 840D sl just threw an alarm. The axis is dead. The spindle won’t respond. Every minute the machine sits idle, you’re bleeding money — scrap accumulates, delivery commitments slip, and your maintenance team is under pressure. You don’t need a lecture on specifications right now. You need the Siemens 6FC5357-0BB35-0AA0 in your hands, tested and ready to drop in.

We stock this module in Xiamen. It ships today via DHL Express or FedEx International Priority. Most destinations in Southeast Asia, Europe, and North America receive within 3–5 business days. No waiting on factory lead times. No chasing distributors who don’t carry it. One call, one shipment, back in production.

URGENT REQUIREMENT?
📧 Email: [email protected]
📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on SINUMERIK 840D sl systems, these are the failure patterns and swap pitfalls that actually matter when you’re standing on the shop floor at 2 AM:

Common Fault Codes That Point to This Module:

• Alarm 380000 / 380001 — Drive component fault. DRIVE-CLiQ communication loss between NCU and the drive module. First check cable seating; if the alarm persists after power cycle, the module itself is the suspect.
• Alarm 25000 series — Encoder signal faults cascading from a failed drive interface. Don’t replace the encoder before ruling out the drive module.
• Alarm 26xxx — Motor temperature monitoring faults that originate from the drive’s sensor input chain. Verify the module’s SMC (Sensor Module Cabinet) interface is intact.
• NCU boot failure / blank operator panel — If the NCU fails to complete its boot sequence and the DRIVE-CLiQ topology scan hangs, a failed drive module in the chain is a primary cause. Disconnect modules one by one to isolate.

Replacement Procedure — Field Checklist:

• ⚡ Power down completely. Lock out / tag out. Wait a minimum of 5 minutes for DC bus capacitors to discharge before touching any drive component. Measure with a multimeter — don’t assume.
• 🔌 Label every DRIVE-CLiQ cable before disconnecting. The topology is position-sensitive. Swapping two cables during reassembly will generate topology mismatch alarms on startup and cost you another hour.
• 💾 Back up your drive data first. Use SINUMERIK Operate → Commissioning → Backup/Restore, or STARTER software to export the drive parameter set (p0010, p0970 sequence). If the old module is partially functional, extract the data before pulling it.
• 🔧 Check firmware version compatibility. The replacement module must match or be upgradeable to the firmware version running on your NCU. Mismatched firmware versions will trigger Alarm 380500. Use STARTER or SINUMERIK Operate to verify and update if needed before final commissioning.
• 📋 No DIP switch or rotary address setting required on this module — the 840D sl uses automatic DRIVE-CLiQ topology detection. However, if your machine uses a non-standard slot assignment (custom topology configured by the OEM), you will need to re-assign the drive object in the NCU configuration after swap.
• 🔁 After installation, perform a drive reset (p0009=30, p0976=1) and allow the NCU to re-scan the DRIVE-CLiQ topology. Confirm all drive objects are recognized before enabling the axes.
• ⚙️ Re-run servo optimization if the machine was running a tuned speed controller. A new module will default to factory gain settings. Use the automatic servo tuning function in SINUMERIK Operate to restore dynamic performance.

One thing field engineers get wrong consistently: assuming the module is the problem when the DRIVE-CLiQ cable is the actual fault. Before ordering, swap the cable first if you have a spare. If the alarm clears, you saved yourself a module replacement. If it doesn’t, you’ve confirmed the module — and you already know where to order it.

Reliability in Harsh Conditions

The 6FC5357-0BB35-0AA0 is not a consumer-grade component. It was engineered for continuous-duty industrial environments where failure is not an option and conditions are unforgiving.

Thermal Performance: The module is rated for operation in ambient temperatures up to 55°C with appropriate derating, and designed to handle the thermal cycling that occurs in machine tool cabinets where cooling fans cycle on and off across shifts. Internal thermal management prevents hotspot damage to the power electronics even during sustained high-current axis operation.

Vibration Resistance: Installed in machine tool cabinets that are mechanically coupled to cutting operations, these modules are subjected to continuous low-frequency vibration from spindle rotation, axis acceleration, and coolant pump operation. The PCB assembly and connector retention are designed to IEC 60068-2-6 vibration test standards — the same benchmark used for railway and heavy industrial equipment.

Humidity and Contamination: Machine tool environments are hostile — coolant mist, metallic dust, and humidity are constant threats. The module’s conformal coating on critical PCB areas provides a barrier against conductive contamination. That said, if your cabinet door seals are compromised, no module will survive indefinitely. Check your cabinet IP rating and door gaskets as part of your preventive maintenance routine.

EMC Shielding: The module is fully compliant with CE EMC directives and is designed to operate within the SINUMERIK 840D sl’s shielded cabinet architecture. Proper grounding of the cabinet and correct cable shielding termination are prerequisites — a module installed in a poorly grounded cabinet will exhibit intermittent communication faults regardless of its condition.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-efficient export hubs on the Chinese coast, with direct access to DHL, FedEx, and UPS international gateways. Here’s exactly how your shipment moves:

• Day 0 — Order Confirmed: Payment received and verified. Module pulled from stock, inspected, and packed in ESD-safe anti-static bag with foam cushioning inside a double-wall carton. Export documentation prepared: commercial invoice, packing list, and certificate of origin.
• Day 0–1 — Carrier Handoff: Shipment handed to DHL Express or FedEx International Priority at Xiamen pickup. Tracking number issued and sent to you within 2 hours of dispatch.
• Day 2–3 — In Transit: Xiamen → Hong Kong or Shanghai hub → destination country gateway. DHL and FedEx both operate direct freighter routes from South China to major hubs in Europe (Leipzig, Paris CDG), North America (Cincinnati, Memphis), and Southeast Asia (Singapore, Kuala Lumpur).
• Day 3–5 — Customs Clearance & Delivery: We pre-classify the shipment under HS Code 8537.10 (industrial control panels/modules) with accurate declared value to facilitate smooth customs clearance. For EU destinations, EORI number coordination is available. For US imports, we provide all documentation required for formal entry.

Typical transit times: Southeast Asia 2–3 days | Europe 3–5 days | North America 3–5 days | Middle East 4–6 days | South America 5–7 days.

For genuinely critical situations — plant shutdown, production line stopped — contact us via WhatsApp before placing the order. We can coordinate same-day dispatch for orders confirmed before 14:00 CST and advise on the fastest routing option for your specific destination.

Contact Information

📧 Email: [email protected]
📱 WhatsApp: +86 18359268345
🌐 Web: siemensplc.com

Response time: within 2 hours during business hours (08:00–20:00 CST, Mon–Sat). For urgent after-hours inquiries, WhatsApp is monitored.
