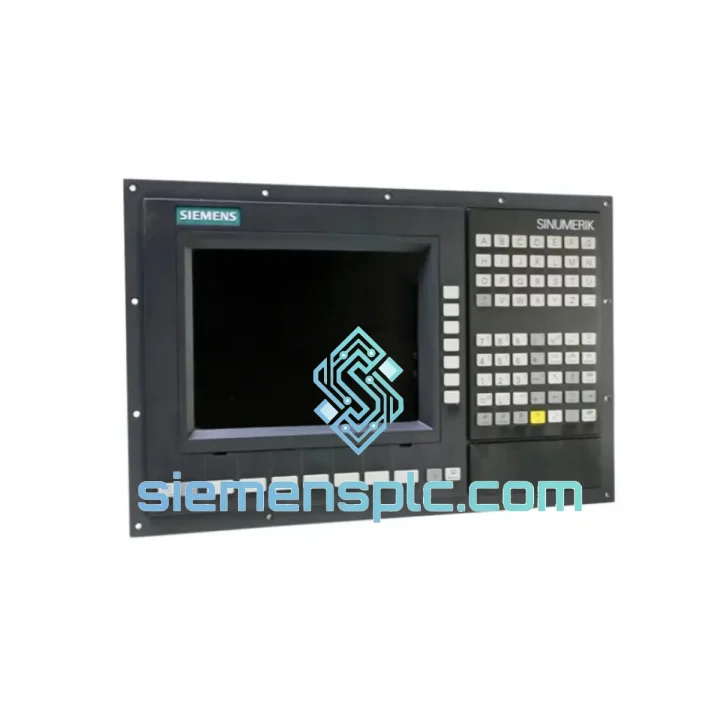

Siemens 6FC5370-0AA00-3AA0 CNC Operator Panel – SINUMERIK Series

Siemens 6FC5370-0AA00-3AA0 — Operator Panel Interface in SINUMERIK CNC Architecture

The Siemens 6FC5370-0AA00-3AA0 is the Operator Panel Interface (OPI) board within the SINUMERIK CNC platform, serving as the dedicated communication bridge between the machine control panel (MCP), operator panel front (OPF), and the NCU (Numerical Control Unit). Unlike a passive backplane, this module actively manages the OPI bus protocol — a deterministic, token-ring-based serial bus operating at 1.5 Mbit/s — ensuring that all HMI-layer commands are delivered to the NC kernel with bounded latency. In high-throughput machining environments where axis interpolation cycles run at 4 ms or below, the OPI bus arbitration logic embedded in the 6FC5370-0AA00-3AA0 guarantees that operator inputs do not introduce jitter into the real-time control loop.

The module integrates directly into the SINUMERIK 840D sl / 840Di sl system rack via the PCU (Panel Control Unit) backplane connector. Its firmware handles handshake sequencing with the PCU 50.3 or PCU 20 computing units, managing display refresh synchronization, keyboard matrix scanning, and MCP signal routing without burdening the NCU’s main processor. This architectural separation — HMI logic isolated from NC computation — is a deliberate design choice that preserves deterministic cycle time on the NC side regardless of operator interaction frequency.

From a field-replacement perspective, the 6FC5370-0AA00-3AA0 is a line-replaceable unit (LRU). It mounts behind the operator panel front and connects via a standardized 50-pin ribbon interface to the OPF display assembly. The board carries its own EEPROM for storing panel configuration parameters, which means a replacement unit can be initialized without re-flashing the NCU — a significant advantage during emergency breakdown recovery on a production floor.

At siemensplc.com, every 6FC5370-0AA00-3AA0 unit is sourced through verified supply channels, inspected against physical and electrical acceptance criteria, and dispatched from our Xiamen, China warehouse with full export documentation. Our technical team can provide pre-sale compatibility confirmation for your specific SINUMERIK system configuration.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6FC5370-0AA00-3AA0 implements several hardware-level design disciplines that distinguish it from generic HMI interface boards found in non-Siemens CNC architectures.

OPI Bus Arbitration and Determinism: The OPI (Operator Panel Interface) bus uses a master-slave token-passing scheme. The 6FC5370-0AA00-3AA0 acts as the bus master, issuing polling cycles to each connected slave device (MCP, handwheel, keyboard) at fixed intervals. This eliminates collision-based latency — every device gets a guaranteed transmission slot within each bus cycle, making the communication layer fully deterministic. In practice, this means an E-stop signal from the MCP reaches the NCU within a bounded time window, independent of how many other devices are active on the bus.

EMC Shielding Architecture: The PCB layout of the 6FC5370-0AA00-3AA0 follows Siemens’ internal EMC design guidelines for industrial control electronics. Signal traces carrying OPI bus data are routed with controlled impedance (typically 100 Ω differential), and the board uses a multi-layer stackup with dedicated ground planes to suppress common-mode noise. The 24 V DC input rail is filtered through an LC network before distribution to onboard logic, providing immunity against voltage transients generated by servo drive switching events — a common interference source in CNC cabinets.

EEPROM-Based Panel Configuration Storage: An onboard serial EEPROM retains panel-specific parameters including key assignment maps, display brightness calibration offsets, and MCP button debounce timing values. This non-volatile storage architecture means that when the 6FC5370-0AA00-3AA0 is replaced as a field unit, the replacement board can be pre-programmed with the machine’s existing configuration file via the SINUMERIK commissioning tool (SINAMICS Startdrive or SINUMERIK Operate), eliminating manual re-parameterization at the machine.

Thermal Management: The board operates passively — no active cooling components are present. The component placement is optimized for convective airflow within the operator panel enclosure, with heat-generating ICs positioned near ventilation apertures. This passive thermal design eliminates fan-related failure modes, which is a meaningful reliability factor in 24/7 production environments where MTBF targets exceed 50,000 hours.

System Integration Benefits

• Zero-latency HMI isolation: By offloading all operator panel communication to a dedicated interface processor, the NCU’s real-time kernel remains unaffected by HMI polling cycles, preserving interpolation cycle integrity at 4 ms or below.
• Plug-compatible replacement: The 6FC5370-0AA00-3AA0 is a direct form-fit-function replacement within the SINUMERIK 840D sl panel assembly — no mechanical modification or wiring change required during swap-out.
• Deterministic E-stop propagation: The OPI bus master architecture guarantees that safety-critical signals (E-stop, feed hold) are transmitted within a fixed bus cycle window, supporting SIL-compliant machine safety designs.
• Centralized diagnostics via SINUMERIK Operate: The module exposes its status registers to the SINUMERIK Operate HMI, allowing maintenance engineers to read bus error counters, device polling timeouts, and EEPROM checksum status without physical access to the panel interior.
• Multi-device bus support: A single 6FC5370-0AA00-3AA0 can manage up to 8 OPI slave devices simultaneously — including MCP, handwheel, and auxiliary keyboard — without performance degradation, supporting complex multi-panel machine configurations.
• Firmware field-updateable: The onboard firmware can be updated via the SINUMERIK service interface using standard Siemens tooling, allowing compatibility extensions for newer MCP variants without hardware replacement.
• Reduced commissioning time: EEPROM-stored configuration parameters can be cloned from an existing machine using the SINUMERIK backup/restore function, reducing panel replacement commissioning time from hours to under 30 minutes.
• Long-term parts availability: As a catalogued SINUMERIK spare part, the 6FC5370-0AA00-3AA0 is supported within Siemens’ industrial spare parts program, with siemensplc.com maintaining buffer stock to cover emergency breakdown scenarios with same-day dispatch capability.
