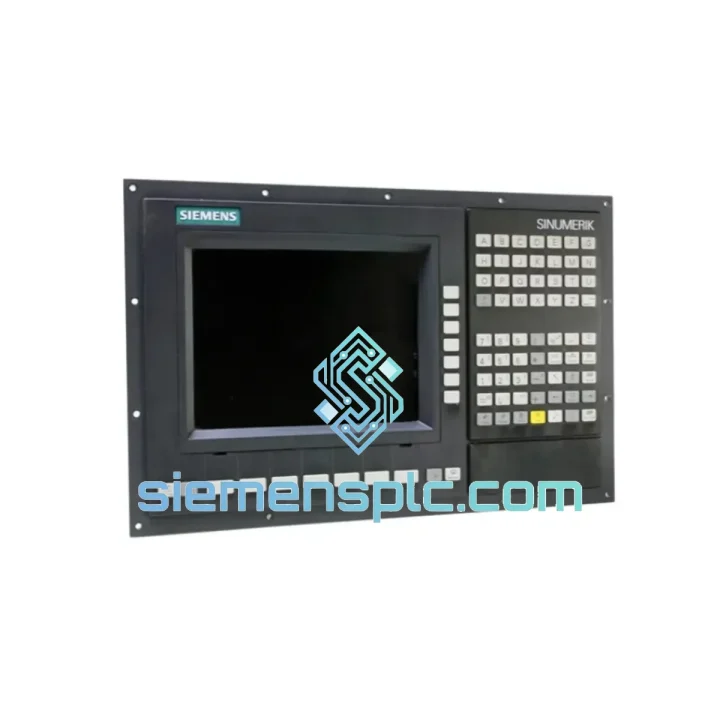

Siemens 6FC5370-2AT02-0CA0 CNC Panel Unit

6FC5370-2AT02-0CA0 Down? Every Minute of Downtime Costs You Money — We Ship Today

Your SINUMERIK 808D panel just went dark. The machine is cold. The production schedule is bleeding. You’ve already checked the 24 V DC rail, confirmed the fuse is intact, and the display stays black. The panel unit itself — 6FC5370-2AT02-0CA0 — is the culprit. You need a verified replacement on-site before the next shift, not in three weeks.

We stock this unit in Xiamen. It ships today via DHL Express or FedEx Priority. Most destinations in Southeast Asia receive it within 48–72 hours. Europe and North America within 3–5 business days. No lead time negotiation. No factory order. Pull from shelf, test, pack, ship.

URGENT REQUIREMENT?
📧 [email protected] | 📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the panel, run through this checklist:

• 24 V DC supply check: Measure at the panel connector — not at the PSU output. Voltage drop across a corroded connector is the #1 false-positive for panel failure. Anything below 21.6 V will cause a black screen or boot loop.
• Alarm 380000 / 380001 (Drive communication fault): If the panel boots but immediately throws a DRIVE-CLiQ communication alarm, the issue may be the cable or the drive, not the panel itself. Swap the DRIVE-CLiQ cable first — it’s a 10-minute job.
• Alarm 700000-series (PLC stop): The integrated PLC has halted. This is often caused by a corrupted user PLC program after a power surge. Before replacing the panel, attempt a PLC reset via the service menu (hold the reset key on boot). If the PLC restarts cleanly, back up the program immediately.
• Firmware version matching: The replacement 6FC5370-2AT02-0CA0 must run firmware compatible with your SINAMICS drive firmware. Mismatched versions cause persistent alarm 380500. Check the firmware label on the old unit before disposal. If the version differs, a firmware update via USB is required before commissioning.
• Parameter backup — do it before you power down: If the panel still boots partially, use the SINUMERIK 808D service backup function (System → Data Backup) to export machine data, tool offsets, and PLC parameters to USB. A 5-minute backup saves 4 hours of re-commissioning.
• Mechanical swap procedure: Power down the cabinet. Discharge the DC bus (wait 5 minutes after power-off). Disconnect DRIVE-CLiQ, USB, RS-232, and the 24 V connector in that order. Remove the four M4 mounting screws. Slide the panel forward. Reverse the sequence for installation. Torque the mounting screws to 1.5 Nm — overtightening cracks the housing.
• First boot after replacement: The 808D will perform a self-test sequence. Expect a 90-second initialization. If alarm 4000 (hardware configuration mismatch) appears, navigate to Commissioning → Machine Data and confirm the axis configuration matches your machine. This is normal when the replacement unit has factory-default machine data.
• No DIP switches on this unit: Unlike older SIMATIC S7 modules, the 6FC5370-2AT02-0CA0 uses software-based addressing. There are no physical DIP switches to set. All axis and drive assignments are configured through the machine data parameters (MD10000 series).

Reliability in Harsh Conditions

A CNC panel unit lives in one of the most hostile environments in industrial automation. Coolant mist, aluminum swarf, vibration from spindle imbalance, thermal cycling from shift changes — the 6FC5370-2AT02-0CA0 is engineered to absorb all of it.

The front panel carries an IP65 rating, meaning it is fully sealed against dust ingress and protected against direct water jets. In practice, this translates to survival in machining centers where coolant spray is constant and cleaning is done with a pressure washer. The internal PCB assembly uses conformal coating on critical signal traces, providing additional protection against condensation in high-humidity environments common in coastal manufacturing facilities.

Vibration resistance is validated to IEC 60068-2-6 standards — sinusoidal vibration up to 10–58 Hz at 0.075 mm amplitude, and 58–500 Hz at 1 g. In real-world terms, this covers the resonance frequencies generated by unbalanced spindles, hydraulic clamping systems, and floor-transmitted vibration from adjacent heavy presses.

Thermal performance is equally robust. The operating range of 0 °C to +55 °C covers the full spectrum from cold-start in an unheated factory in winter to sustained operation in a poorly ventilated electrical cabinet in summer. The internal thermal management relies on passive convection — no fans, no moving parts, no maintenance interval for cooling components.

Units in our stock are stored in climate-controlled conditions at 20–25 °C with humidity maintained below 60% RH. Each unit is inspected for physical damage, connector integrity, and label legibility before dispatch. We do not ship units with damaged housings or corroded connectors regardless of functional status.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-efficient cities on the southeast coast, with direct access to Xiamen Gaoqi International Airport and multiple bonded warehouse zones. This geography is not accidental. It allows us to hand off shipments to DHL Express and FedEx Priority cut-off times that cover same-day dispatch for orders confirmed before 15:00 CST.

Typical transit times from Xiamen:

• Southeast Asia (Vietnam, Thailand, Malaysia, Indonesia): 48–72 hours via DHL Express
• India & South Asia: 3–4 business days via FedEx International Priority
• Middle East (UAE, Saudi Arabia, Turkey): 3–5 business days via DHL Express
• Europe (Germany, Italy, Poland, Czech Republic): 4–6 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 4–6 business days via FedEx International Priority
• Australia & New Zealand: 3–5 business days via DHL Express

Export documentation included with every shipment: Commercial invoice, packing list, certificate of origin (CO), and where required, an export license declaration. HS Code for this product: 8537.10 (Boards, panels, consoles for electric control). We handle customs classification — you handle installation.

For urgent shipments, we offer a door-to-door tracking service: once your order is confirmed and payment cleared, you receive a DHL or FedEx tracking number within 4 hours of dispatch. No chasing. No ambiguity. You know exactly where your part is at every point in transit.

All units are packed in anti-static bags, surrounded by 50 mm of EPE foam, and placed in double-wall corrugated cartons rated for 30 kg drop impact. The panel arrives at your site in the same condition it left our warehouse.

Contact Information

📧 Email: [email protected]
📱 WhatsApp: +86 18359268345
🌐 Web: siemensplc.com
