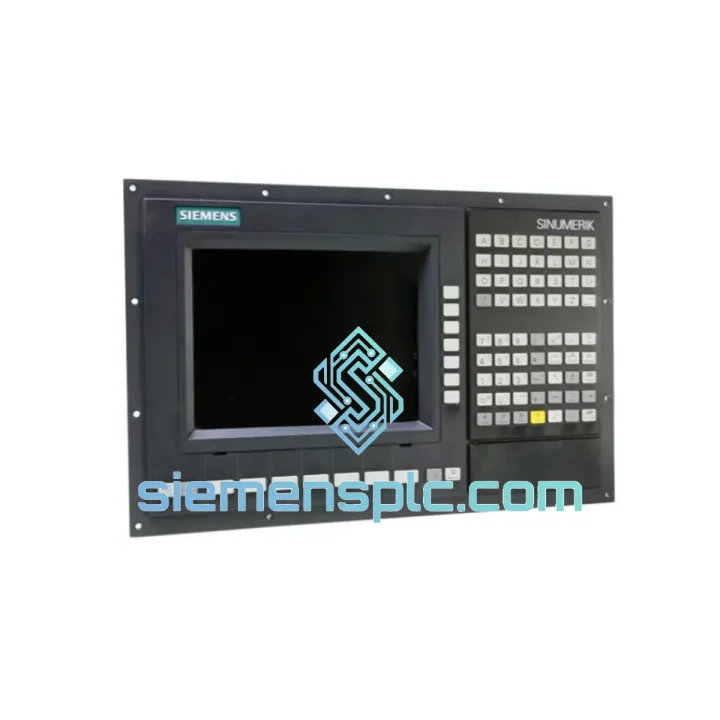

Siemens 6FC5370-6AA30-0WA0 CNC Controller – SINUMERIK 828D

Siemens 6FC5370-6AA30-0WA0 — SINUMERIK 828D PPU 240.3 in Multi-Axis CNC Control Architecture

The 6FC5370-6AA30-0WA0 is the Panel Processing Unit (PPU 240.3) of the Siemens SINUMERIK 828D compact CNC platform. Unlike distributed controller architectures that separate the HMI, NCK, and PLC into discrete rack-mounted modules, the 828D PPU integrates all three functional layers — Human Machine Interface, Numerical Control Kernel, and PLC runtime — onto a single embedded board assembly housed behind a 10.4-inch TFT operator panel. This integration eliminates inter-module communication latency and reduces the number of potential failure nodes in the control loop, which is a measurable advantage in high-cycle turning and milling environments where deterministic response time directly affects surface finish and dimensional repeatability.

In a closed-loop CNC architecture, the PPU occupies the position between the operator interface and the drive layer. Interpolation commands generated by the NCK are transmitted to SINAMICS S120 or S110 drive modules via PROFINET IRT (Isochronous Real-Time), with a cycle time of 125 µs at the drive interface. The integrated PLC — based on a SIMATIC S7-300 compatible runtime — handles machine logic, safety interlocks, and peripheral I/O in parallel with the NCK interpolation cycle, with a PLC scan cycle configurable down to 4 ms. This parallel execution model ensures that machine logic does not compete with interpolation processing for CPU resources, maintaining axis synchronization accuracy across all programmed interpolating axes.

The 828D platform targets mid-range machine tools: turning centers with up to 4 controlled axes, milling machines with up to 5 interpolating axes in the PPU 240.3 configuration, and grinding machines requiring coordinated axis motion with spindle synchronization. The 6FC5370-6AA30-0WA0 is the standard-temperature, standard-voltage variant of the PPU 240.3, rated for ambient operating conditions of 0 °C to +55 °C and powered from a 24 V DC supply rail.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PPU 240.3 board assembly is built around a multi-core ARM-based SoC with dedicated hardware partitions for the NCK interpolation engine and the PLC execution environment. The two partitions share physical memory through a controlled arbitration layer that enforces strict time-slot allocation, preventing PLC logic execution from introducing jitter into the NCK interpolation cycle. This architecture is functionally analogous to a dual-domain FPGA design, where each domain has guaranteed bus access windows — the practical result is that axis position error at 125 µs PROFINET IRT cycle time remains below 1 LSB of the encoder resolution under normal load conditions.

The front panel integrates a resistive touchscreen controller with a dedicated microcontroller handling touch event debouncing and coordinate mapping independently of the main SoC. This means HMI input events are queued and processed asynchronously without interrupting the NCK or PLC execution cycles. The 10.4-inch TFT panel uses a direct-lit LED backlight with a rated service life of 50,000 hours at nominal brightness, which corresponds to approximately 17 years of single-shift operation — a relevant figure for machine tool applications where panel replacement is a maintenance cost driver.

EMC design on the PPU 240.3 follows IEC 61800-3 Category C2 requirements. The PCB stack-up uses a dedicated ground plane layer between signal layers, and all external connectors are routed through common-mode chokes and transient voltage suppression (TVS) diodes rated for ±2 kV surge per IEC 61000-4-5. The 24 V DC input circuit includes an internal inrush current limiter and reverse-polarity protection, which protects the board from the most common field wiring errors during commissioning or maintenance. The PROFINET ports are transformer-isolated with 1.5 kV isolation voltage, consistent with IEEE 802.3 requirements for industrial Ethernet in environments with ground potential differences between cabinet sections.

The CompactFlash slot (internal, not user-accessible in standard configuration) stores the SINUMERIK Operate software image and the machine-specific NC data partition. The file system uses a wear-leveling algorithm that distributes write cycles across the flash array, extending media service life under the frequent NC program load and save operations typical of job-shop environments. Battery-backed SRAM retains tool offset data, zero-point offsets, and PLC retain data through power cycles without requiring a CF card write operation, which reduces write cycle consumption on the flash media.

System Integration Benefits

• Deterministic PROFINET IRT communication: The 125 µs isochronous cycle to SINAMICS drives eliminates the variable latency inherent in standard Ethernet polling, enabling position loop closure at the drive with consistent timing — a prerequisite for achieving surface roughness Ra < 0.8 µm on contour milling operations.
• Integrated NCK/PLC/HMI eliminates inter-module wiring: Compared to modular SINUMERIK 840D sl installations, the 828D PPU removes the NCU-to-PCU communication link, reducing the number of Ethernet cables, switches, and potential single points of failure in the control cabinet by a measurable count.
• ShopMill and ShopTurn graphical programming: The embedded workshop-oriented programming environment allows operators to generate NC programs from geometric input without G-code knowledge, reducing setup time on repeat-part families and lowering the skill threshold for machine operation.
• SINUMERIK Safety Integrated (SIL 2 / PLe): When paired with SINAMICS S120 Safety Integrated drives, the PPU supports safe stop functions (STO, SS1, SS2, SOS, SLS) without an external safety relay module, reducing cabinet footprint and eliminating the relay contact wear failure mode.
• Integrated diagnostic transparency: The SINUMERIK Operate HMI provides real-time drive diagnostics, axis load monitoring, and alarm history with timestamp resolution to 1 ms, enabling maintenance engineers to correlate mechanical events with control system alarms without external data logging equipment.
• Tool life management with integrated monitoring: The NCK maintains tool life counters based on cutting time, number of operations, or wear threshold, and triggers automatic tool change or operator alert without requiring a separate tool management PLC module.
• Scalable I/O via PROFINET: PP 72/48D 2/2A I/O modules connect via PROFINET, allowing the I/O count to be scaled to machine requirements without changing the PPU hardware. Each PP 72/48D adds 72 digital inputs and 48 digital outputs with 2 analog inputs and 2 analog outputs.
• Remote service capability via SINUMERIK Integrate: The Ethernet port supports VPN-based remote access for Siemens service engineers or machine builders, enabling parameter backup, software update, and fault diagnosis without a site visit — a logistics advantage for machines installed in geographically distributed production facilities.

Quality Assurance & Global Logistics

Every 6FC5370-6AA30-0WA0 unit supplied by siemensplc.com is sourced as genuine Siemens manufactured hardware. Units are inspected upon receipt at our Xiamen, China facility: label verification against Siemens part number and date code format, visual inspection of connector pins and housing integrity, and power-on functional verification where test fixtures are available. New-in-box units are stored in ESD-controlled, temperature-regulated warehouse conditions consistent with Siemens storage recommendations for electronic assemblies.

Xiamen is a designated free-trade port with direct access to major international freight carriers. Standard export shipments are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia. For bulk orders or freight-sensitive shipments, sea freight consolidation via Xiamen Port is available with transit times of 18–35 days to major global ports. All shipments include commercial invoice, packing list, and certificate of origin. Export classification and ECCN assessment are available on request for customers subject to import licensing requirements.

A 12-month warranty covers hardware defects in materials and workmanship from the date of shipment. Warranty claims are processed with a target response time of 1 business day. Advance replacement units are available for customers with critical production requirements, subject to deposit. Technical support is provided by engineers with direct experience in SINUMERIK 828D commissioning and fault diagnosis.
