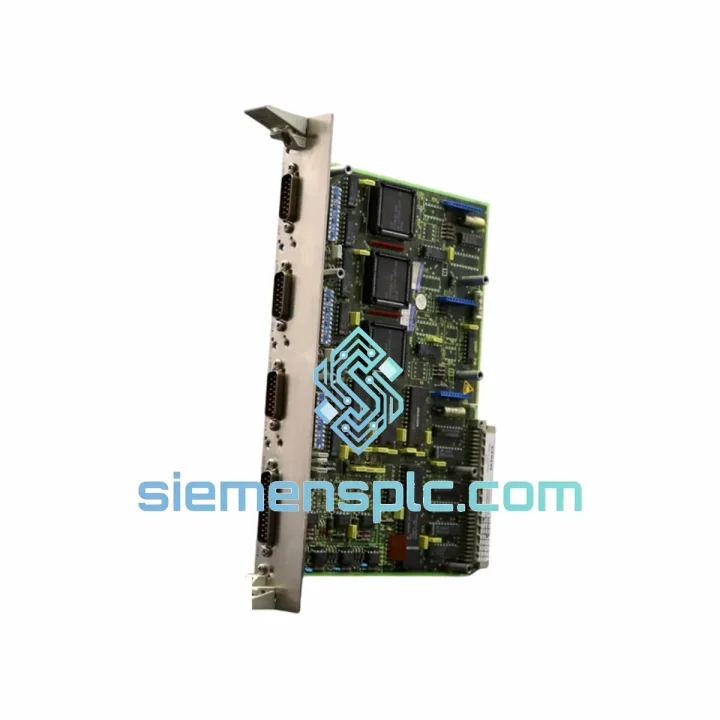

Siemens 6FX1121-4BB01 – Servo Add-On Module for SIMODRIVE 611 Drive Systems

The 6FX1121-4BB01 is a dedicated servo add-on module engineered for the Siemens SIMODRIVE 611 modular AC drive platform. Within a SIMODRIVE 611 drive rack, the base drive unit handles power conversion and current regulation, while the add-on module layer manages the closed-loop servo intelligence: encoder signal conditioning, position feedback processing, and axis-specific parameter storage. The 6FX1121-4BB01 occupies this functional tier, extending the drive’s capability to interface with high-resolution rotary or linear encoders and maintain deterministic position control across multi-axis CNC configurations.

SIMODRIVE 611 was Siemens’ primary AC servo drive architecture for CNC machine tools from the mid-1990s through the 2010s, and remains the dominant drive platform in a large global installed base of machining centers, grinding machines, and transfer lines. The 6FX1121-4BB01 is specifically designed for systems where the add-on module slot requires a servo-grade interface card — not a generic I/O expansion — meaning its internal logic is optimized for real-time encoder feedback latency below the servo cycle period of the connected SINUMERIK controller.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6FX1121-4BB01 operates as the axis-level intelligence layer within the SIMODRIVE 611 rack. Its hardware architecture addresses three distinct engineering challenges inherent to high-performance servo control.

Encoder Signal Conditioning and Interpolation: Raw encoder signals — whether TTL differential square-wave or sin/cos 1 Vpp analog — arrive at the module’s front-end receiver circuitry. For sin/cos inputs, the module performs hardware-level interpolation, subdividing each encoder period into finer position increments before passing the digital count to the drive’s DSP. This interpolation occurs in dedicated ASIC logic rather than firmware, ensuring that the position update latency remains fixed and independent of processor load — a critical requirement for axes operating at high traverse speeds where encoder frequency can exceed 500 kHz.

EMC Design and Signal Isolation: The encoder interface section is galvanically isolated from the drive’s power electronics section via optocoupler barriers on the differential signal lines. This isolation prevents ground loop currents — which are common in large machine tool cabinets where multiple drive racks share a common PE rail — from injecting noise into the position feedback path. The PCB layout follows a split-ground topology: the encoder signal ground plane is physically separated from the drive bus ground plane, with the two planes joined only at a single star point near the backplane connector. Ferrite beads are placed on the encoder supply lines to attenuate high-frequency common-mode noise generated by the PWM switching of adjacent power modules.

Drive Bus Interface and Cycle Synchronization: The module communicates with the SINUMERIK NCU via the SIMODRIVE drive bus — a proprietary synchronous serial bus that operates at a fixed cycle time synchronized to the CNC interpolation cycle (typically 1 ms or 2 ms). The 6FX1121-4BB01 contains a local bus controller that latches the current encoder position count at the precise moment the drive bus cycle begins, ensuring that the position value delivered to the NCU corresponds to a deterministic sampling instant. This isochronous sampling eliminates the position jitter that would otherwise result from asynchronous encoder reads, and is the hardware foundation for the tight contour accuracy achievable in multi-axis coordinated motion.

Parameter Storage: Axis-specific drive parameters — including encoder type selection, motor data, current controller gains, and speed controller gains — are stored in non-volatile EEPROM on the module itself. This architecture means that when a module is replaced, the replacement unit must be re-parameterized to match the axis configuration, either manually via SINUMERIK HMI or by downloading a saved parameter set. The EEPROM write endurance is rated for a minimum of 100,000 write cycles, sufficient for the lifetime of the machine under normal commissioning and maintenance operations.

System Integration Benefits

• Isochronous Position Sampling: Hardware-latched encoder reads synchronized to the SIMODRIVE drive bus cycle eliminate inter-axis position jitter, enabling contour errors below 5 µm in coordinated multi-axis interpolation at programmed feed rates up to 60 m/min.
• Deterministic Servo Cycle Compliance: The module’s bus controller guarantees that axis position data is available to the NCU within the first 200 µs of each 1 ms interpolation cycle, preserving the timing budget for the NCU’s position controller computation.
• Flexible Encoder Compatibility: Support for both TTL incremental and sin/cos 1 Vpp encoder types within the same hardware platform allows the module to interface with a wide range of Siemens 1FT6, 1FK7, and 1PH7 motors without requiring different hardware variants for each motor family.
• Integrated Axis Diagnostics: The module continuously monitors encoder signal amplitude, differential signal balance, and supply voltage levels. Out-of-tolerance conditions generate specific fault codes (Alarm 300xxx series on SINUMERIK 840D) that identify the fault source at the axis level, reducing fault diagnosis time from hours to minutes.
• Non-Volatile Parameter Retention: EEPROM-based parameter storage ensures that axis configuration survives power cycling and module handling without data loss, eliminating the risk of parameter corruption from power interruptions during maintenance.
• Backplane Hot-Swap Compatibility: Within SIMODRIVE 611 systems configured for axis-by-axis enable/disable, the module supports controlled power-down of individual axes without requiring a full rack shutdown, reducing maintenance downtime in multi-axis systems.
• Thermal Derating Transparency: The module reports its internal temperature status via the drive bus, allowing the SINUMERIK NCU to log thermal events and trigger preventive maintenance alerts before thermal shutdown occurs — a capability that supports predictive maintenance strategies in high-duty-cycle production environments.
• Seamless SINUMERIK HMI Integration: All module parameters are accessible and modifiable through the standard SINUMERIK drive commissioning interface (Start-up → Drive → Axis parameters), with no requirement for external programming tools or proprietary software beyond the standard SINUMERIK software package.
• Long-Term Spare Parts Availability: siemensplc.com maintains dedicated stock of 6FX1121-4BB01 modules to support MRO procurement for machines with remaining service lives of 5–15 years, providing a reliable supply chain alternative to OEM lead times that can exceed 20 weeks for legacy components.

Quality Assurance & Global Logistics

Every 6FX1121-4BB01 unit dispatched from our Xiamen facility undergoes a structured pre-shipment inspection protocol. Visual examination covers the PCB surface, all edge connectors, the front-panel labeling, and the housing for mechanical damage or evidence of prior unauthorized repair. Connector pins are inspected under magnification for corrosion, deformation, or solder bridging. Serial numbers and date codes are cross-referenced against Siemens manufacturing records to confirm authenticity and production batch traceability.

Functional verification is performed on a SIMODRIVE 611 reference rack with a known-good SINUMERIK 840D NCU. The module is powered up, parameterized to a standard axis configuration, and exercised through encoder signal injection tests that verify the interpolation logic, bus communication timing, and diagnostic reporting functions. Modules that pass all verification steps are assigned a test record number that accompanies the shipment documentation.

Packaging follows IEC 61340-5-1 ESD protection requirements: the module is placed in a conductive anti-static bag, sealed, and cushioned within a rigid corrugated carton with minimum 50 mm foam padding on all six faces. For international shipments, the outer carton is labeled with HS code, country of origin (Germany), and net/gross weight for customs clearance efficiency.

Logistics from Xiamen, China covers all major global destinations. Standard air freight to Europe, North America, Southeast Asia, and the Middle East typically achieves door-to-door transit times of 5–10 business days. Express courier options (DHL, FedEx, UPS) are available for urgent requirements with transit times of 3–5 business days. Full export documentation — commercial invoice, packing list, certificate of origin, and test report — is provided with every shipment. All units are covered by a 12-month warranty from the date of shipment.
