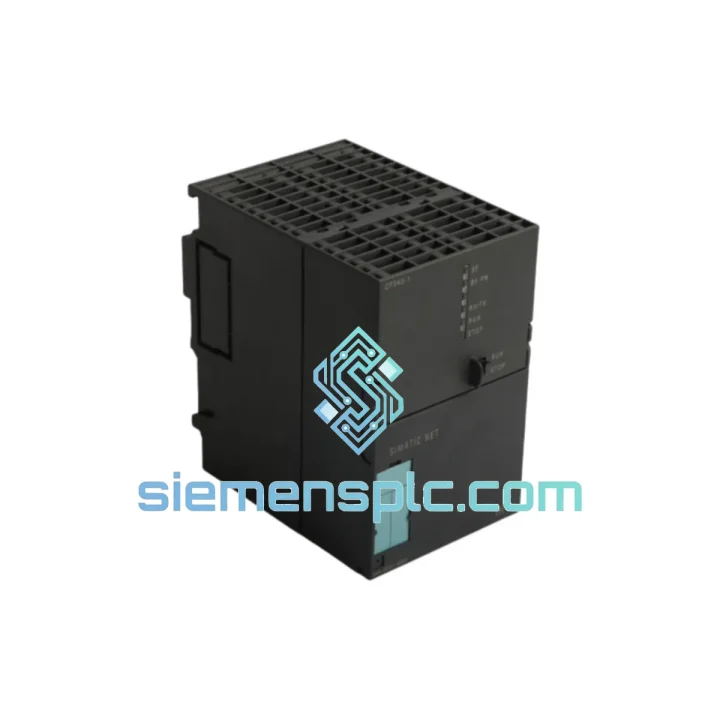

Siemens 6GK7343-1EX21-0XE0 Communications Processor

6GK7343-1EX21-0XE0 CP 343-1 EX21 — Stop the Clock on Your S7-300 Ethernet Downtime

Every minute your S7-300 rack sits offline without a working communications processor, your line is bleeding money. Whether it’s a failed ISO-on-TCP connection that took down your SCADA link, a corrupted firmware state after a power surge, or a physically damaged RJ45 port from a cable pull — the Siemens 6GK7343-1EX21-0XE0 is the exact module you need, and we have it on the shelf in Xiamen right now. No lead-time negotiation. No factory order. Ship today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting and Replacement Tips

After ten years of pulling failed CPs off live racks, here is what actually goes wrong with the 6GK7343-1EX21-0XE0 and how to handle the swap without creating a second fault.

Fault 1 — BF LED solid red, no Ethernet link: Nine times out of ten this is a corrupted MAC address table or a failed internal PHY after a lightning-induced surge on the Ethernet cable. Confirm by checking the CP diagnostic buffer in STEP 7 via Online, Module Information, Diagnostic Buffer. If you see event ID 0x8552 or 0x8553, the hardware is gone. Order the replacement now.

Fault 2 — SF LED flashing, connections drop intermittently: Usually a firmware mismatch after a CPU firmware update. The CP 343-1 EX21 firmware is stored on the module itself — it does not auto-update from the CPU. After installing the replacement, use STEP 7 NCM S7 Firmware Update to push the correct version before going online. Match firmware to your STEP 7 version: V2.x for STEP 7 V5.4 and below; V3.x for V5.5 and above.

Fault 3 — Module not recognized on backplane, no LED activity: Check slot assignment. The CP 343-1 EX21 must be configured in the hardware catalog at the exact physical slot it occupies. If you are moving it to a different slot during replacement, update the HW Config in STEP 7, recompile, and download to the CPU before powering up. Slot mismatch causes a permanent SF fault that looks identical to a dead module.

Replacement Procedure:

1. Place the CPU in STOP mode. Do not hot-swap the CP while the CPU is in RUN — backplane bus errors will corrupt the CPU I/O image.
2. Record the existing CP slot number and the IP address and subnet mask configured in NCM S7 before removal.
3. Power down the rack. Remove the bus connector from the left side of the CP first, then release the DIN rail clips.
4. Seat the replacement 6GK7343-1EX21-0XE0. Reconnect the bus connector — confirm it clicks fully into the backplane edge connector. A partial connection causes intermittent BF faults that are extremely difficult to diagnose.
5. Power up. Open STEP 7 HW Config. The CP should appear with a yellow warning triangle indicating no IP assigned. Right-click, Module Properties, Ethernet Interface, assign the same IP address and subnet mask as the failed unit.
6. Download the HW Config to the CPU. The CP will initialize and the BF LED will extinguish within 30 seconds if the network is healthy.
7. Verify connections in NCM S7 Connections view. All configured S7 and TCP connections should show status Established within 60 seconds of the CPU entering RUN.
8. If connections do not establish: check that the remote partner has not cached the old MAC address. An ARP cache flush on the remote host resolves this in most cases.

Note on addressing: There are no DIP switches or rotary address selectors on this module. All addressing is software-configured via NCM S7. The HW Config download is mandatory before the module will communicate.

Reliability in Harsh Conditions

The CP 343-1 EX21 was not designed for a climate-controlled server room. It was built for the plant floor, and the 6GK7343-1EX21-0XE0 reflects that in every design decision.

The module’s conformal-coated PCB resists condensation and airborne contaminants common in food processing and chemical environments. Operating across 0 to 60 degrees C without derating means it handles the thermal cycling of a steel mill’s electrical cabinet — cold at startup, hot after eight hours of production. The backplane bus connector uses gold-plated contacts rated for 100 or more insertion cycles, which matters when you are swapping modules under pressure during a breakdown.

Vibration resistance meets IEC 60068-2-6 at sinusoidal 10 to 58 Hz with 0.075 mm amplitude, and 58 to 500 Hz at 1 g. In practice this covers the vibration profile of most pump skids, compressor stations, and press lines where S7-300 racks are commonly mounted. The DIN rail mounting with integrated locking clips prevents the module from walking out of the rack under sustained vibration — a failure mode seen repeatedly on cheaper third-party alternatives.

ATEX II 3 G certification for Zone 2 hazardous areas means this CP can be installed in the same cabinet as equipment handling flammable gases or vapors, provided the cabinet itself meets the enclosure requirements. The RJ45 port uses a shielded connector body tied to the module chassis ground, providing a defined path for cable shield currents and reducing susceptibility to conducted EMI from variable-frequency drives and contactors sharing the same cable tray. In high-EMI environments, always use Siemens IE FC TP cable with the IE FC RJ45 Plug 180 (6GK1901-1BB10-2AA0) for a fully shielded field-terminated connection.

Global Express Logistics

Our warehouse is in Xiamen, Fujian, China — one of the country’s primary export hubs with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways. The 6GK7343-1EX21-0XE0 is physically on our shelf, inspected, and ready to pack. This is not a drop-ship arrangement.

Orders confirmed before 15:00 CST ship same business day. Orders after 15:00 ship next morning. Tracking number provided within 2 hours of dispatch.

Estimated door-to-door transit times:

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 2 to 3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3 to 4 business days via FedEx International Priority
• Europe (Germany, Netherlands, Poland, UK): 3 to 5 business days via DHL Express
• North America (USA, Canada, Mexico): 4 to 5 business days via FedEx or UPS
• South America and Africa: 5 to 7 business days depending on customs clearance

Full export documentation is prepared on every shipment: commercial invoice with HS code 8537.10, packing list, and certificate of origin. For customers requiring import licenses for industrial automation equipment, a pro-forma invoice is available in advance to accelerate customs clearance. Anti-static packaging with humidity indicator cards is standard — the module arrives in the same condition it left our warehouse.

For critical plant shutdowns where every hour counts, contact us directly on WhatsApp for real-time coordination on the fastest available routing. We have arranged same-day courier handoffs to international gateways for customers facing production emergencies.
