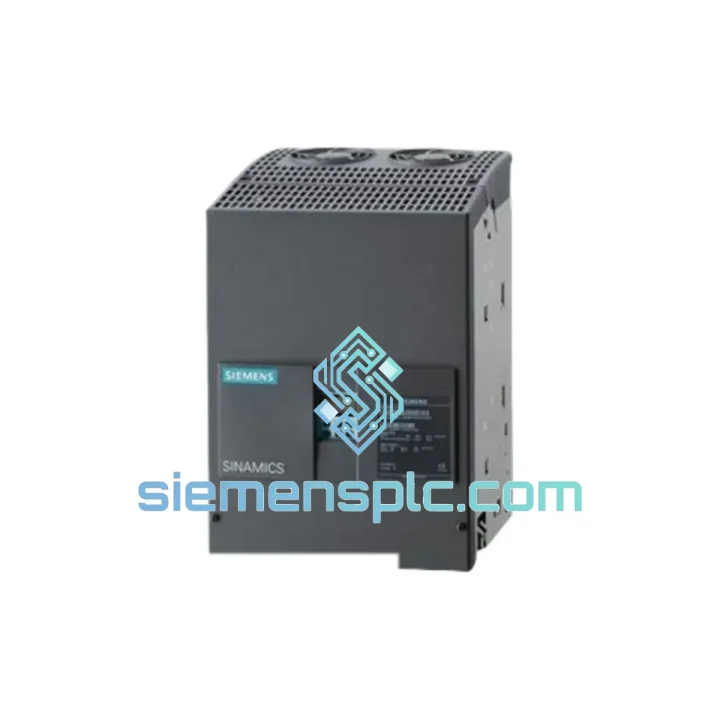

Siemens 6RA8025-6DS22-0AA0 DC Drive Converter

6RA8025-6DS22-0AA0 Down? Every Minute of DC Drive Failure Costs You Real Money — We Ship Today

A SINAMICS DCM failure at 2 AM is not a maintenance ticket — it is a production crisis. Rolling mills, paper winders, extruder lines, and coiler drives running on the Siemens 6RA8025-6DS22-0AA0 do not have a graceful degradation mode. When this 210 A DC drive converter trips and will not reset, the clock starts immediately. At typical industrial downtime costs of $5,000–$50,000 per hour depending on your process, waiting two weeks for an OEM order is simply not an option.

We stock the 6RA8025-6DS22-0AA0 in Xiamen and ship globally via DHL Express and FedEx International Priority. Most orders clear customs and arrive on-site within 3–5 business days. That is the difference between a shift delay and a week-long shutdown.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes on the 6RA8025-6DS22-0AA0 in the field:

F60004 – Armature overcurrent: Nine times out of ten this is not the drive — check your DC motor brushes and commutator condition first. A worn commutator causes current spikes that the drive’s thyristor bridge cannot handle cleanly. If the motor checks out, the fault usually points to a degraded thyristor in the 6-pulse bridge or a failed current transformer on the armature feedback board. Swap the drive, not the motor.

F60022 – Field current controller fault: The field winding circuit is open or the field current feedback is lost. Before condemning the drive, measure field winding resistance at the motor terminals. An open field winding (typically >500 Ω where spec is 20–80 Ω) means the motor needs rewinding, not the drive. If field resistance is normal, the fault is internal — the field thyristor pair or the field current measurement board has failed.

A60019 – Fan alarm / overtemperature warning: The internal cooling fan on the 6RA8025 is a known wear item. Fan bearing failure causes thermal derating before full shutdown. Do not ignore this alarm. A replacement fan costs under $50; a failed thyristor bridge from thermal stress costs the whole drive.

Replacement procedure — what to do before you power up the new unit:

• Parameter backup first: If the old drive still powers up (even in fault), connect STARTER software and upload the parameter set via the USS or PROFIBUS interface. Save the .dcp file. The 6RA8025-6DS22-0AA0 has no onboard parameter memory card slot — all parameters live in the drive’s EEPROM. A replacement unit ships with factory defaults.
• Check the DIP switches on the CUD board: The 6RA80xx series uses hardware DIP switches on the Control Unit Drive (CUD) for base address assignment when multiple drives share a PROFIBUS segment. Switches S1 and S2 set the PROFIBUS node address in binary. Match the old drive’s switch positions exactly before installation — a node address conflict will prevent the PLC from communicating with the drive and will look like a hardware fault.
• Firmware version matching: The 6RA8025-6DS22-0AA0 runs SINAMICS DCM firmware. If your plant uses STARTER for commissioning, verify the firmware version on the replacement unit matches your STARTER project version. Mismatched firmware causes parameter download failures. Firmware can be updated via STARTER’s firmware download function — allow 15 minutes and do not interrupt power during the process.
• Armature and field cable polarity: DC drives are polarity-sensitive. Label your armature cables (C1+/C2–) and field cables (D1+/D2–) before disconnecting the old unit. Reversed armature polarity causes immediate F60004 on first enable. Reversed field polarity causes the motor to run in the wrong direction under field weakening.
• Encoder/tachometer feedback: If your application uses a pulse encoder for closed-loop speed control, verify the encoder supply voltage (5 V or 24 V) and signal type (HTL or TTL) match the replacement drive’s encoder board configuration. The 6RA8025 supports both — but the jumper settings on the SMC30 or onboard encoder interface must be set correctly.
• First power-up sequence: Apply control voltage (24 VDC) first, before applying AC mains. Verify the drive displays the correct firmware version and no persistent faults. Then apply AC mains. Do not enable the drive until PROFIBUS communication is confirmed active (green PROFIBUS LED on CUD board).

Reliability in Harsh Conditions

The SINAMICS DCM platform was not designed for clean-room environments. The 6RA8025-6DS22-0AA0 is built to operate in the conditions that actually exist on industrial floors: steel mill dust, paper mill humidity, chemical plant vibration, and the thermal cycling that comes from running 24/7 in a poorly ventilated cabinet.

The thyristor bridge assembly in the 6RA8025 uses press-pack thyristors rated for continuous operation at the full 210 A output current with appropriate derating curves. The control electronics are conformal-coated against humidity and condensation. The CUD control board operates across an ambient temperature range of 0°C to +55°C without derating, and up to +60°C with a 1% current derating per degree above 55°C.

Vibration resistance meets IEC 60068-2-6 Class 3M4 — the same standard applied to equipment mounted on compressor skids and ship deck machinery. The drive’s internal bus bars and power connections use vibration-resistant locking hardware, not standard hex bolts that back out under continuous vibration.

In high-humidity environments (paper mills, food processing, coastal installations), the conformal coating on the CUD board provides protection against condensation-induced tracking faults. However, if the drive has been stored in an unheated warehouse and brought into a warm, humid environment, allow 24 hours of acclimatization before applying power — or use a low-wattage space heater inside the cabinet to drive off condensation before energizing.

Units supplied from our Xiamen warehouse are inspected for storage-related degradation before shipment. Electrolytic capacitors in DC drives have a finite shelf life — any unit stored beyond 24 months without power cycling requires capacitor reforming before full-load operation. We perform this procedure on units that have been in storage, so you receive a drive that is ready for immediate installation, not one that will fail on first power-up due to capacitor dielectric breakdown.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx gateway access. This is not a drop-ship arrangement. The unit is physically in our warehouse, inspected, and ready to pack when your order is confirmed.

Standard export process for the 6RA8025-6DS22-0AA0:

• Order confirmation to dispatch: Same business day for orders confirmed before 14:00 CST. Next business day for orders confirmed after 14:00 CST.
• Packaging: Anti-static bag, foam-lined double-wall carton, corner protectors. The 6RA8025 weighs 16 kg — we use reinforced cartons rated for 30 kg to handle courier handling abuse.
• DHL Express Worldwide: Xiamen to most of Southeast Asia, Middle East, and Europe in 3–5 business days. Xiamen to North America in 4–6 business days.
• FedEx International Priority: Available as an alternative carrier. Transit times comparable to DHL. Preferred by customers with existing FedEx accounts for consolidated billing.
• Export documentation: Commercial invoice, packing list, and certificate of origin (China) provided with every shipment. HS code 8504.40 applies to this product class. We declare accurate values — we do not undervalue shipments.
• Customs clearance: We provide all documentation required for standard import clearance. For countries requiring additional import permits for industrial electrical equipment, advise us at order time and we will prepare supplementary documentation.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent via email and WhatsApp.

For customers in Southeast Asia (Vietnam, Thailand, Indonesia, Malaysia, Philippines), we also offer consolidated sea freight for multi-unit orders where transit time is less critical than freight cost. Contact us for a sea freight quotation on orders of 3 or more units.
