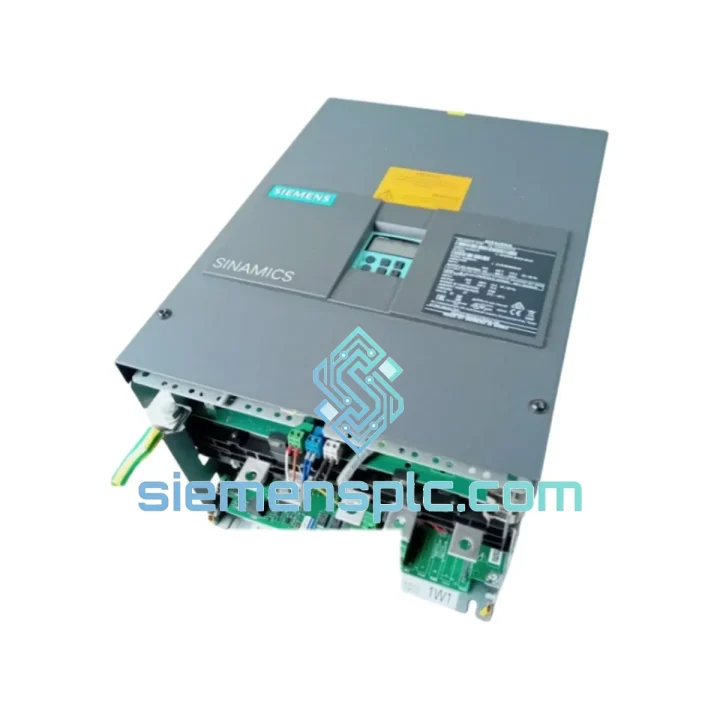

Siemens 6RA8075-6DS22-0AA0 DC Rectifier Module

Siemens 6RA8075-6DS22-0AA0 — Stop the Clock on Your Downtime

Every minute a DC drive sits dead, your production line is bleeding money. A failed rectifier module on a rolling mill, paper winder, or extruder drive doesn’t wait for procurement cycles — and neither do we. The Siemens 6RA8075-6DS22-0AA0 is in stock at our Xiamen warehouse, pre-inspected, and ready to ship within 24 hours via DHL Express or FedEx International Priority. While your competitors are still waiting on factory lead times, your line is already back up.

This is a fully controlled 6-pulse rectifier module within the SINAMICS DCM (DC Master) platform — Siemens’ fully digital DC drive architecture designed for heavy-duty industrial applications. Rated at 75 A DC armature current, it supports 4-quadrant regenerative operation, meaning it handles both motoring and braking cycles without external braking resistors. The integrated single-phase field supply eliminates a separate excitation unit, cutting panel complexity and potential failure points. PROFIBUS DP and USS protocol interfaces make it a native fit in any Siemens TIA Portal or legacy SIMATIC S7 environment.

Steel mills, paper machines, plastics extruders, mining conveyors — this module has earned its place in the harshest continuous-duty applications on the planet. When yours fails, you need an exact replacement with zero compromise on spec. That’s what we deliver.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the module, capture the fault log. On the SINAMICS DCM operator panel (AOP30) or via STARTER/Startdrive, navigate to Diagnostics → Fault Buffer and record all active and historical fault codes. The most common faults that indicate rectifier module failure on the 6RA8075 platform:

• F60022 / F60023 — Thyristor firing fault. If this appears repeatedly after reset, the SCR firing board or the thyristor stack itself is compromised. A module swap is the fastest path to recovery.
• F60030 — DC link overvoltage during regenerative braking. Check if the fault follows the module or stays with the cabinet — if it follows the module, the snubber circuits on the thyristor assembly are degraded.
• F60051 — Field current monitoring fault. The integrated field bridge may have a failed diode or SCR. Don’t assume it’s the motor — isolate the field circuit at the module terminals first.
• A60100 / F60100 — Fan monitoring alarm/fault. The internal cooling fan on the 6RA8075 is a known wear item. Confirm fan rotation before condemning the power stage.

Replacement procedure — field-tested sequence:

1. De-energize the drive and lock out / tag out (LOTO) per site safety procedure. Verify DC bus discharge with a calibrated meter — the 6RA8075 DC bus capacitors can hold dangerous charge for several minutes after power removal.
2. Before disconnecting, photograph all wiring connections, particularly the armature terminals (C1/D1), field terminals (F1/F2), and the PROFIBUS connector position.
3. Export the full parameter set via STARTER or Startdrive to a PC. Save the .dcp or .zip project file. This is non-negotiable — you will need it for the replacement unit.
4. Note the firmware version displayed on the AOP30 (Menu → Device Info). The replacement module must run the same firmware major version to avoid parameter incompatibility. Firmware mismatch is the #1 cause of failed commissioning after a module swap.
5. On the replacement 6RA8075-6DS22-0AA0, verify the DIP switch settings on the CUD (Control Unit Drive) board match the original — particularly the PROFIBUS node address switches if your site uses hardware addressing rather than software parameterization (P0918).
6. After mechanical installation and wiring, perform a factory reset (P0970 = 1) on the new module, then restore your saved parameter set. Do NOT skip the factory reset — residual default parameters from a different application can cause unexpected behavior on first power-up.
7. Verify P0100 (motor rated current), P0305 (armature rated current), and P0307 (field rated current) match your motor nameplate before enabling the drive.
8. Run a stationary motor identification (P1910 = 1) if the motor data is uncertain. This takes approximately 2 minutes and eliminates current regulation instability caused by incorrect motor parameters.

Common configuration pitfalls on the 6RA80 platform: The SINAMICS DCM does not auto-detect the connected motor — all motor data must be entered manually or via the identification routine. If the replacement module was previously used in a different application, residual parameter sets can cause the drive to behave erratically. Always start from a known-good parameter baseline.

Reliability in Harsh Conditions

The 6RA8075-6DS22-0AA0 is not a light-duty component. It was engineered to operate continuously in environments that would destroy consumer-grade electronics within weeks. The thyristor power stack is rated for sustained operation across a wide ambient temperature range, with the forced-air cooling system designed to maintain junction temperatures within safe limits even during prolonged overload cycles.

Vibration resistance is built into the mechanical design — the PCB assemblies use conformal coating and reinforced connector retention to withstand the constant mechanical stress of mill and mining environments. In paper machine applications where humidity regularly exceeds 80% RH, the module’s sealed control electronics maintain isolation integrity without derating. The IP20 enclosure rating assumes installation within a properly sealed control cabinet, which is standard practice in all industrial drive installations.

The thyristor firing circuits use optocoupler isolation between the control logic and the power stage, providing galvanic separation that protects the CUD from power-side transients — a critical feature in steel mill environments where line disturbances are frequent and severe. The integrated EMC filtering on the control supply further reduces susceptibility to conducted interference from adjacent variable frequency drives and switching power supplies sharing the same MCC.

Units supplied from our Xiamen warehouse are stored in climate-controlled conditions with ESD protection and moisture barrier packaging. Each unit is visually inspected for connector integrity, PCB condition, and label authenticity before dispatch. We do not supply units with broken connector housings, corroded terminals, or missing firmware labels — these are the first indicators of counterfeit or salvaged components that will fail within weeks of installation.

Global Express Logistics

Our Xiamen warehouse is positioned for rapid export to all major industrial markets. Xiamen Gaoqi International Airport (XMN) operates daily cargo flights to Frankfurt, Amsterdam, Dubai, Singapore, and Los Angeles — giving us direct access to DHL Express and FedEx International Priority networks without transshipment delays.

Standard dispatch timeline: Order confirmed before 14:00 CST → same-day pickup by DHL/FedEx → airfreight departure same evening → delivery to most European destinations in 3–5 business days, Southeast Asia in 2–3 business days, North America in 4–6 business days.

All shipments include a full commercial invoice, packing list, and certificate of origin (China) for customs clearance. The 6RA8075-6DS22-0AA0 ships under HS Code 8504.40 (static converters) in most jurisdictions — confirm with your customs broker for country-specific classification. ESD-safe inner packaging with foam-lined outer carton is standard. For air freight, units are packed to IATA standards with no hazardous materials declaration required.

For urgent plant-down situations, we can arrange same-day courier collection and provide AWB tracking within 2 hours of dispatch. WhatsApp us directly for real-time shipment coordination: +86 18359268345.
