Siemens 6RY1703-1HD02 C98043-A7021-L1-3 DC Drive Control Board

Siemens 6RY1703-1HD02 C98043-A7021-L1-3 — Stop the Clock on Your Downtime

Every minute a DC drive sits dead, your production line is bleeding money. Whether it’s a steel rolling mill, a paper machine, or a crane hoist that’s locked up at 2 AM, the 6RY1703-1HD02 control board is the single component standing between you and full restart. We stock it. We ship it fast. From Xiamen to your dock — DHL or FedEx, tracked, documented, no excuses.

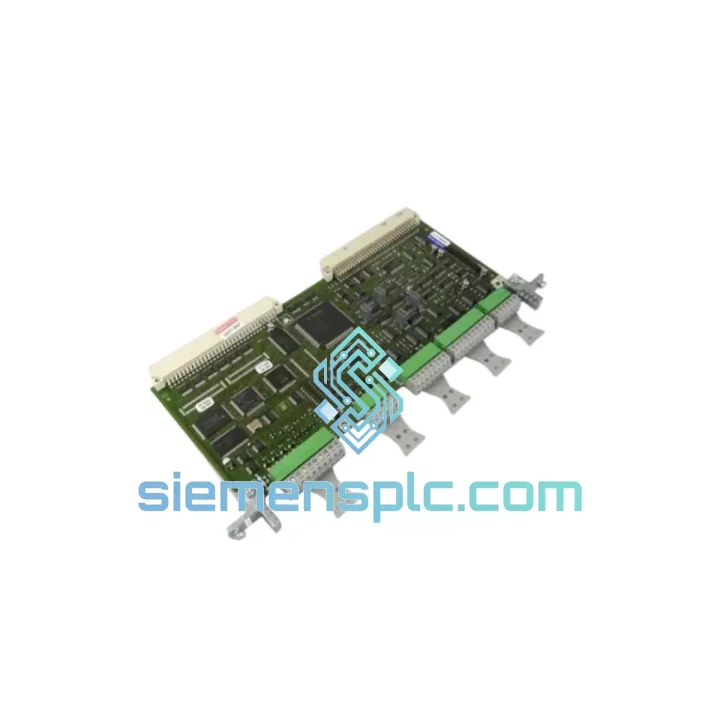

This is the core closed-loop control board for the Siemens SIMOREG DC-MASTER 6RA70 series. It handles speed regulation, field excitation, thyristor firing pulse generation, and all diagnostic logic. When this board fails, the drive goes dark. When you swap it correctly, the drive comes back — same parameters, same performance, zero retuning if you’ve done your backup.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 6RY1703-1HD02:

F005 / F006 — Armature overcurrent or field loss: Before condemning the board, verify the field winding resistance and check for shorted SCRs in the power section. If the power section checks out clean and the fault persists immediately on power-up, the control board’s field regulation circuit is the prime suspect.

F025 — Speed feedback fault: This fault triggers when the board loses tachogenerator or encoder signal. However, if the feedback wiring is intact and the fault still appears after board swap, check P083 (feedback source selection) — it must match your physical feedback device. A new board ships with factory defaults; P083 will need to be set before the drive will accept feedback.

F041 — EEPROM / parameter memory fault: Classic sign of board-level failure. The internal EEPROM has lost its parameter set. If you have a DriveMonitor backup (.par file), you can restore the full parameter set to the replacement board in under 10 minutes. If no backup exists, you’ll need to recommission from scratch using the drive’s nameplate data and motor test sheet.

Board replacement procedure — field-tested sequence:

1. Power down the drive and lock out / tag out. Wait a minimum of 5 minutes for DC bus capacitors to discharge. Verify with a meter — do not skip this.
2. Connect DriveMonitor or STARTER to the existing board via the RS232 port (X300). Upload the full parameter set and save to a local file. Label the file with the drive tag number and date.
3. Photograph the terminal wiring on X100, X101, X102, and the fieldbus adapter before disconnecting anything.
4. Remove the fieldbus adapter (CBP2/CBD) if fitted — it transfers to the new board directly.
5. Release the board retaining clips and slide the 6RY1703-1HD02 out of the backplane. Handle by edges only — ESD damage is real and invisible.
6. Seat the replacement board firmly until both retaining clips engage. Do not force — if resistance is felt, check for bent backplane pins.
7. Reattach the fieldbus adapter. Reconnect terminal wiring per your photographs.
8. Power up. The drive will display F041 or similar on first boot — this is expected on a blank board. Download your saved parameter file immediately.
9. Verify P083 (speed feedback type), P100 (control mode), P353/P354 (ramp times), and P160/P161 (current limits) match your application before enabling the drive.
10. Run a no-load test at 10% speed. Confirm speed feedback is tracking. Gradually increase to full speed under load.

DIP switch / address settings: The 6RY1703-1HD02 does not use hardware DIP switches for node addressing. PROFIBUS address is set via P918 in software. If the drive was previously on a PROFIBUS network, confirm P918 matches the GSD file configuration in your PLC project before going live.

Firmware note: The C98043-A7021-L1-3 board revision is compatible with SIMOREG 6RA70 firmware V3.x and later. If your existing drive is running an older firmware version and you experience unexpected behavior after board swap, a firmware update via DriveMonitor may be required. Contact us for firmware file sourcing if needed.

Reliability in Harsh Conditions

The 6RY1703-1HD02 was designed for environments that would destroy consumer-grade electronics. The PCB carries a full conformal coating — acrylic-based, applied at the factory — which seals the board against condensation, coolant mist, and airborne conductive particles common in steel mills and paper plants. Vibration resistance is validated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random), covering the frequency ranges typical of motor-driven machinery and compressor rooms.

Operating temperature range is -10°C to +55°C ambient, with short-term excursions to +70°C tolerated by the industrial-grade components used throughout. The board’s power supply section uses low-ESR electrolytic capacitors rated for 105°C, which is why these boards outlast cheaper third-party alternatives by years in hot control cabinet environments.

Every unit we ship has passed a visual inspection under magnification for cold solder joints, cracked traces, and capacitor bulge — the three most common failure modes on aged boards. Units sourced from decommissioned equipment are function-tested on a live 6RA70 drive before being cleared for sale. We do not ship untested boards.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. For urgent orders confirmed before 14:00 CST, same-day dispatch is available.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Vietnam): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, UK, Netherlands, Poland): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 4–6 business days via FedEx International Priority
• South America (Brazil, Chile, Argentina): 5–8 business days via DHL or FedEx
• Africa and remote regions: 6–10 business days; contact us for carrier options

All shipments include full commercial invoice, packing list, and HS code declaration (HS 8537.10) for smooth customs clearance. For customers in countries requiring a Certificate of Origin, we can provide a China Chamber of Commerce CO on request. ESD-safe packaging — anti-static bag inside foam-lined double-wall carton — is standard on every board shipment. No exceptions.

Tracking numbers are issued within 2 hours of dispatch and sent directly to your order email. For time-critical shipments, WhatsApp us your order number and we will push tracking updates proactively.
