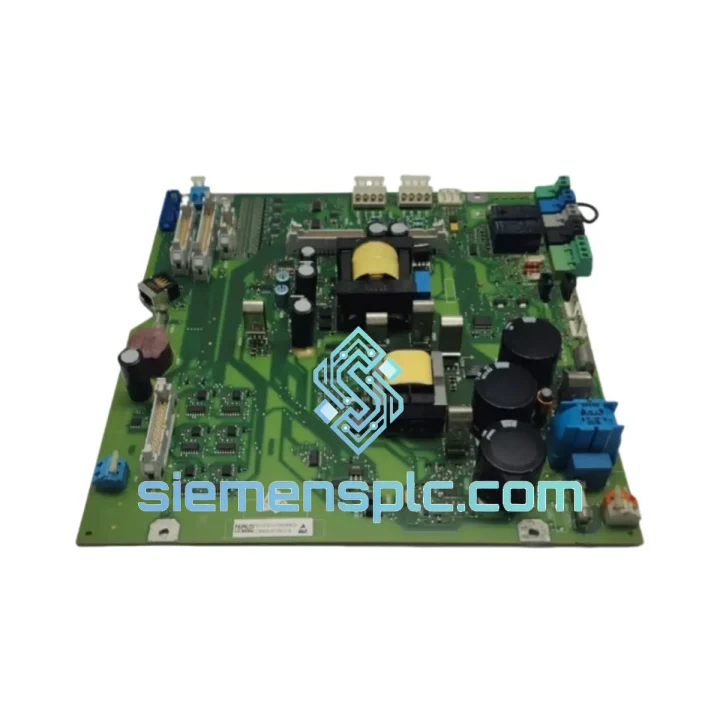

The Siemens 6RY1803-0CM20, board reference C98043-A7109-L100, is the dedicated auxiliary power supply (PSU) module for the SIMOREG DC Master converter family. Within the SIMOREG architecture, this board occupies a structurally critical position: it derives its input from the converter’s internal AC bus and generates the regulated multi-rail DC voltages that power every active circuit on the control stack — gate drive electronics, microprocessor logic, analog signal conditioning, and digital I/O interfaces. Without a functioning PSU board, the converter’s firing circuit cannot generate thyristor gate pulses, and the CUD control unit loses its operating voltage, rendering the entire drive inoperable. This single-board dependency makes the 6RY1803-0CM20 one of the highest-priority spare components in any SIMOREG-based installation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6RY1803-0CM20 employs a two-stage power conversion architecture. The primary stage uses a compact switching topology to step down and rectify the AC input from the converter’s internal transformer, producing an intermediate unregulated DC bus. The secondary stage applies linear regulation to each output rail independently, achieving tight voltage accuracy (typically ±1 % on the ±15 V rails) and low output ripple — both essential for the analog signal chains on the CUD control board, where millivolt-level noise margins govern speed and current regulation accuracy.

The ±15 V rails feed the operational amplifiers responsible for current feedback scaling, speed reference summing, and PI controller computation. Any deviation beyond ±2 % on these rails introduces measurable offset errors in the current regulator, which in high-performance applications such as paper machine drives or winding systems can translate directly to tension variation and product defects. The +5 V rail powers the microprocessor and EPROM on the CUD, while the +24 V rail drives the digital I/O optocouplers and relay coils.

From an EMC standpoint, the board incorporates common-mode chokes on the AC input lines and decoupling capacitor arrays at each output rail. These suppress conducted emissions back onto the converter’s internal bus and prevent high-frequency switching noise from coupling into the analog measurement circuits. The PCB layout follows Siemens’ internal EMC partitioning rules: the switching section is physically separated from the linear regulation section by a ground plane split, with a single-point star ground connection to prevent circulating currents. This design approach is consistent with IEC 61800-3 Category C2 conducted emission limits, allowing the SIMOREG system to operate in industrial environments without additional external filtering in most installations.

The board also integrates an undervoltage lockout (UVLO) circuit on the +5 V rail. If the output drops below the UVLO threshold — typically triggered by input voltage sag or a failing electrolytic capacitor — the UVLO asserts a fault signal to the CUD, initiating a controlled drive shutdown rather than allowing the microprocessor to execute undefined instructions. This fail-safe behavior is a deliberate architectural choice that prevents uncontrolled motor runaway during PSU degradation events.

System Integration Benefits

• Zero-Derating Compatibility: Designed to Siemens’ internal electrical specifications for the SIMOREG platform; all output current ratings are matched to the actual load profile of the CUD and gate drive boards, eliminating the need for external auxiliary power supplies or load-shedding workarounds.
• Deterministic Fault Propagation: The UVLO and overvoltage protection circuits generate structured fault codes readable via the CUD’s parameter r949/r947 fault buffer, enabling maintenance teams to distinguish PSU faults from control board or thyristor faults without oscilloscope measurement.
• Reduced MTTR: Board-level plug-in replacement requires no rewiring; the connector pinout is mechanically keyed to prevent incorrect insertion. A trained technician can complete a board swap in under 20 minutes, minimizing production downtime in continuous-process industries.
• Multi-Generation Platform Support: Compatible across SIMOREG 6RA24, 6RA28, and 6RA70 converter generations, allowing maintenance departments to hold a single PSU board as a common spare across mixed-vintage drive fleets — reducing spare parts inventory cost.
• Stable Analog Reference for High-Precision Regulation: The ±15 V rail’s low temperature coefficient (typically <50 ppm/°C) ensures that speed and current regulator setpoints remain stable across the full cabinet operating temperature range, supporting applications requiring speed regulation tighter than 0.01 %.
• EMC-Compliant Operation: Integrated input filtering and PCB-level EMC partitioning allow the SIMOREG system to meet IEC 61800-3 conducted emission limits without additional external line filters in most standard industrial installations, simplifying cabinet design and reducing BOM cost.
• Diagnostic Transparency: The UVLO fault output is wired to a dedicated status LED on the board faceplate, providing a visual first-level diagnostic indicator that does not require a laptop or parameter access tool to interpret — useful in field environments where engineering support is not immediately available.
• Long-Term Availability: As a documented Siemens spare part with a stable part number, the 6RY1803-0CM20 is supported under Siemens’ long-term spare parts program, and third-party distributors such as siemensplc.com maintain stock to support legacy SIMOREG installations operating beyond the converter’s standard product lifecycle.
