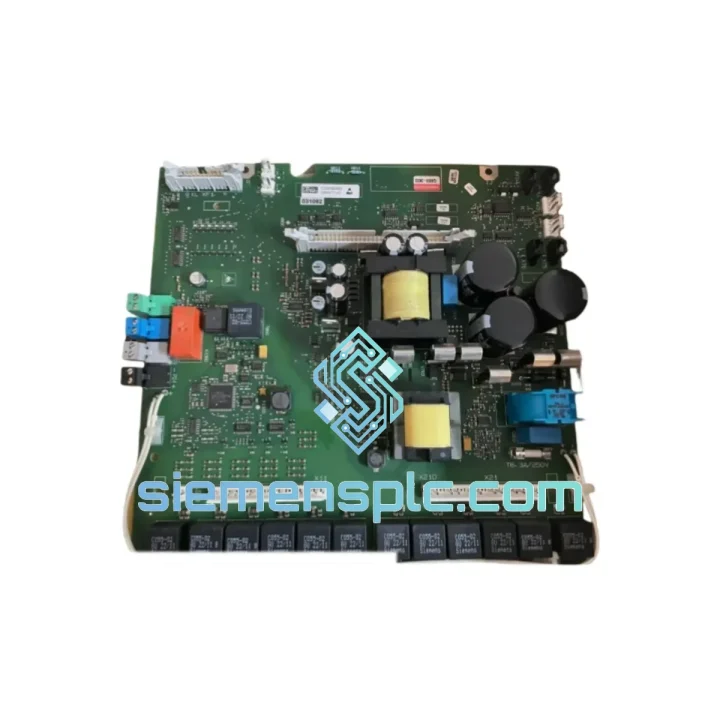

Siemens 6RY1803-0DB02 C98043-A7107-L4 Power Supply Module – SIMOREG DC MASTER

Siemens 6RY1803-0DB02 / C98043-A7107-L4 — Regulated Internal Power Supply Board for SIMOREG DC MASTER Drive Systems

The Siemens 6RY1803-0DB02 (board assembly reference: C98043-A7107-L4) is the internal regulated power supply module designed for the SIMOREG DC MASTER fully digital DC drive platform. Within the drive cabinet architecture, this board occupies the role of primary low-voltage power distribution: it accepts the auxiliary AC input from the drive’s internal transformer secondary and converts it into the stabilized DC rails required by the control electronics, gate firing circuits, and serial communication interfaces. Without a functioning power supply board, the entire control stack — including the CUD1 central control unit, the AOP30 operator panel, and any PROFIBUS or USS communication adapters — loses its operating voltage and the drive becomes non-functional regardless of the condition of the power stage.

The SIMOREG DC MASTER series represents Siemens’ mature, field-proven architecture for fully digital four-quadrant DC drive control, deployed across continuous-process industries where torque precision and speed regulation under variable load are non-negotiable. Applications include steel rolling mill coiler drives, paper machine section drives, extruder main drives, mine hoist systems, and marine thruster controls. In these environments, the power supply board is a high-wear consumable: it operates continuously under thermal cycling, vibration, and line transients, and its failure mode is typically abrupt rather than gradual — making stocked spares a standard maintenance practice for any facility running SIMOREG DC MASTER hardware.

The 6RY1803-0DB02 is a board-level OEM replacement, manufactured to the original Siemens design specification. It is not a third-party equivalent or a reverse-engineered substitute. The PCB layout, component selection, and connector pinout are identical to the factory-installed unit, enabling direct drop-in replacement without any rewiring, firmware reconfiguration, or mechanical adaptation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6RY1803-0DB02 performs a function that is architecturally more complex than a simple linear regulator board. Within the SIMOREG DC MASTER control section, the power supply module must simultaneously serve multiple load domains with differing voltage requirements and noise sensitivity levels — and it must do so with sufficient isolation between domains to prevent ground loops from corrupting the analog measurement circuits that feed the speed and current regulators.

Multi-Rail Regulated Output Architecture: The board generates separate regulated DC rails for the digital logic domain (typically 5 V and 3.3 V for microcontroller and DSP circuits), the analog measurement domain (±15 V for op-amp signal conditioning chains), and the gate driver domain (15 V isolated supplies for thyristor firing pulse transformers). Each rail is independently regulated, meaning a load transient on the gate driver supply — which can be significant during thyristor commutation — does not propagate as a voltage disturbance into the analog measurement rails. This rail independence is critical for maintaining the accuracy of the current feedback signal, which the CUD1 control board uses for closed-loop current regulation at update rates of 1.7 ms.

Galvanic Isolation and EMC Design: The board employs transformer-based galvanic isolation between the auxiliary AC input and the control-side DC outputs. This isolation barrier serves two functions: it prevents common-mode noise from the power stage (which can reach several hundred volts during thyristor switching transients) from coupling into the control electronics, and it satisfies the safety isolation requirements of EN 61800-5-1 for operator-accessible control terminals. The PCB layout routes high-frequency switching nodes away from sensitive analog traces, and the board includes X- and Y-class capacitors at the AC input for differential and common-mode conducted emission suppression, consistent with the drive’s EN 61800-3 Category C2 certification.

Thermal Management: The power dissipation of the board is concentrated in the linear post-regulators and the isolation transformer. The PCB copper pours and component placement are optimized for natural convection within the drive cabinet’s internal airflow path, with no active cooling required at the board level. This passive thermal design eliminates a potential failure mode (fan bearing wear) and contributes to the board’s long mean time between failures in continuous-duty industrial environments.

Fault Detection and Supervision: The board includes undervoltage detection logic on the primary output rails. If any regulated rail drops below its threshold — due to input voltage sag, component degradation, or overload — the supervision circuit asserts a fault signal to the CUD1 control board, which logs the event in the drive’s fault memory (fault code F023 or equivalent, depending on firmware version) and initiates a controlled shutdown. This behavior prevents the drive from operating in an undefined state with degraded control power, which could otherwise result in uncontrolled motor behavior.

System Integration Benefits

• Zero-Modification Drop-In Replacement: Connector positions, PCB mounting holes, and board outline dimensions are identical to the factory-installed unit. Replacement requires no mechanical rework, no cable extension, and no firmware parameter adjustment — the drive resumes normal operation immediately after board swap and power cycle.
• Preserves Closed-Loop Regulation Accuracy: By maintaining stable, low-noise analog supply rails (±15 V), the board ensures that the current and speed feedback signal chains operate within their specified accuracy bands. Degraded supply voltage on the analog domain directly increases measurement noise, which manifests as speed ripple and current regulation instability — symptoms that are often misdiagnosed as encoder or tachometer faults.
• Supports Full Diagnostic Transparency: The board’s undervoltage supervision outputs feed directly into the CUD1 fault logging system. Maintenance engineers can retrieve fault history via the AOP30 operator panel or STARTER commissioning software, enabling root-cause analysis of power supply events without oscilloscope-level investigation.
• Enables Predictive Maintenance Stocking: The 6RY1803-0DB02 is a known wear item in long-running SIMOREG DC MASTER installations. Facilities operating multiple drives of this type typically stock one or two units per site to eliminate the multi-week procurement lead time that would otherwise accompany an emergency breakdown.
• Compatible Across Multiple Drive Ratings: The power supply board is shared across a range of SIMOREG DC MASTER current ratings within the 6RA70 family, reducing the number of distinct spare part numbers a maintenance department must manage.
• Maintains PROFIBUS and USS Communication Integrity: The isolated communication supply rails generated by this board power the PROFIBUS DP interface and USS serial link transceivers. A stable communication supply is necessary for deterministic fieldbus cycle times; supply noise on this rail can cause sporadic communication timeouts that are difficult to trace without board-level measurement.
• Supports Four-Quadrant Operation Continuity: In regenerative braking applications — common in hoist and winding drives — the gate firing circuits must remain precisely timed during the transition between motoring and regenerating quadrants. The board’s regulated gate driver supply ensures firing pulse timing is not affected by the load transients associated with quadrant transitions.
• Reduces Total Cost of Ownership: A board-level replacement at this level costs a fraction of a complete drive replacement or a full control section exchange. For facilities with established SIMOREG DC MASTER infrastructure, maintaining this board as a spare extends the operational life of the drive system without requiring a platform migration.

Quality Assurance & Global Logistics

Every unit of the Siemens 6RY1803-0DB02 / C98043-A7107-L4 supplied by siemensplc.com is sourced through verified Siemens-authorized distribution channels or directly from OEM surplus inventory. We do not handle counterfeit, remarked, or unverified third-party substitute boards. Each unit undergoes the following verification steps before dispatch from our Xiamen, China facility:

• Visual Inspection: Full PCB surface inspection for component damage, solder joint integrity, connector pin condition, and absence of burn marks, corrosion, or mechanical stress fractures.
• Label and Marking Verification: Siemens part number, board revision level, and date code are verified against the order specification. Boards with illegible or inconsistent markings are quarantined.
• Functional Bench Test: Where test fixtures are available, boards are powered under controlled conditions and output rail voltages are measured against specification before packaging.
• Anti-Static and Moisture Protection Packaging: Boards are packed in anti-static bags with desiccant, placed in foam-lined rigid cartons, and sealed with moisture barrier film for international air freight.
• 12-Month Warranty: All units carry a 12-month warranty from the date of shipment. Warranty claims are handled with direct technical support from our engineering team — no third-party RMA routing.

Shipments from Xiamen are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with full tracking provided at time of dispatch. Standard international transit time is 3–7 business days to most destinations in Europe, North America, Southeast Asia, and the Middle East. Export documentation including commercial invoice, packing list, and certificate of origin is provided with every shipment. For orders requiring a test report or certificate of conformity, documentation is prepared and included at no additional charge.
