Siemens 6SA8252-0AC61 DC Drive Control Unit – SIMOREG DC Master

Siemens 6SA8252-0AC61 – Regulator Board at the Core of SIMOREG DC Master Closed-Loop Architecture

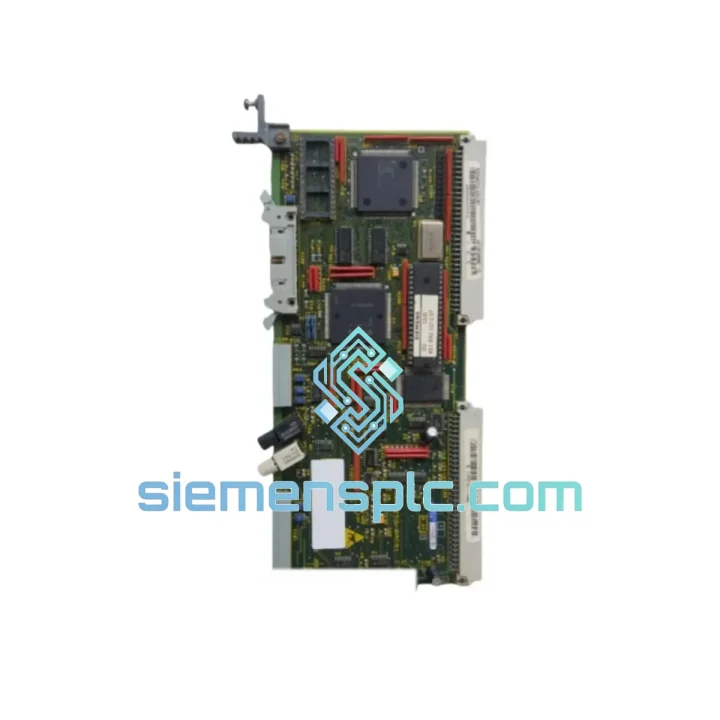

The Siemens 6SA8252-0AC61 is the central regulator board of the SIMOREG DC Master drive platform (6SA82 / 6RA70 series). It executes all closed-loop control functions — armature current regulation, speed control, field current management, and gate pulse synchronization — in a fully digital, microprocessor-based architecture. Unlike analog predecessors, every control parameter is stored in non-volatile EEPROM, eliminating drift and enabling exact parameter replication across replacement units.

This board is not a peripheral accessory. It is the computational core that determines drive behavior under every operating condition: acceleration ramps, regenerative braking, field weakening above base speed, and fault response. When this board fails, the entire drive stops. Sourcing a verified replacement with correct hardware revision is the only path back to production.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SA8252-0AC61 implements a cascaded control topology standard to high-performance DC drives: an outer speed loop feeds a reference to the inner armature current loop, which in turn computes the firing angle α for the thyristor bridge. The critical design characteristic is the separation of these two loops at the hardware level — the current controller operates on a dedicated DSP path with a sampling cycle in the sub-millisecond range, while the speed controller executes on the main CPU at a slower but still deterministic rate. This hierarchy prevents current overshoot during speed transients, which is the primary cause of thyristor failure in poorly designed DC drives.

EMC Architecture: The board employs optocoupler isolation on all digital I/O lines, separating the low-voltage logic domain from the 24 V field wiring. Analog input channels use differential amplifier front-ends with common-mode rejection ratios (CMRR) exceeding 60 dB, which is essential in environments with heavy thyristor switching noise on the DC bus. The PCB layout routes high-frequency clock signals away from analog signal traces, and the ground plane is split between analog and digital domains with a single-point star connection — a design discipline that prevents ground loop interference from corrupting speed feedback signals.

Field Current Regulation: A separate field controller loop manages the excitation current of the DC motor independently of the armature circuit. This allows field weakening operation above base speed by reducing field current in a controlled ramp, extending the motor’s usable speed range without exceeding armature voltage limits. The 6SA8252-0AC61 handles this transition automatically once the relevant P-parameters (field weakening start speed, minimum field current) are configured — no external controller is required.

Gate Pulse Synchronization: Firing pulses to the thyristor bridge are synchronized to the AC supply frequency via a zero-crossing detection circuit on the board. This synchronization is maintained even during supply frequency fluctuations (±2 Hz tolerance), preventing commutation failures that would otherwise result in thyristor shoot-through. The firing angle α is computed in real time and dispatched with microsecond-level timing accuracy.

Non-Volatile Parameter Storage: All 999+ drive parameters are stored in on-board EEPROM. On power-up, the board loads the parameter set and resumes operation without any manual intervention. This is particularly significant in retrofit scenarios: parameters from a failed board can be read via DriveMonitor before removal and written to the replacement unit, restoring the exact control behavior of the original installation.

System Integration Benefits

• Deterministic current loop response: Sub-millisecond armature current control cycle eliminates torque ripple in tension-critical applications such as paper winders and wire drawing machines.
• Sensorless speed estimation: EMF-based speed feedback mode allows operation without a physical encoder — reducing mechanical failure points in high-vibration environments such as mining conveyors.
• 4-quadrant operation support: When paired with a dual-bridge power section, the board manages seamless transition between motoring and regenerative braking quadrants, enabling energy recovery in hoist and crane applications.
• Integrated auto-optimization: Built-in routines (P051 optimization sequence) automatically identify motor parameters and tune speed/current controller gains — reducing commissioning time from hours to minutes.
• Fieldbus transparency: All drive parameters and process values are accessible via USS or PROFIBUS-DP in real time, enabling SCADA and PLC systems to monitor armature current, speed actual value, fault codes, and control word status without additional hardware.
• Fault diagnostic depth: The fault memory stores the last 8 fault events with operating state snapshots (speed, current, DC bus voltage at fault moment), enabling root-cause analysis without oscilloscope instrumentation.
• Modular board replacement: The control board is physically separated from the power section. A failed board can be replaced without disturbing power wiring, thyristor assemblies, or motor cabling — reducing mean time to repair (MTTR) to under 30 minutes for a prepared maintenance team.
• Parameter set portability: DriveMonitor allows full parameter upload/download via RS-232/USB adapter. A single parameter file covers the complete drive configuration, enabling rapid restoration after board swap and supporting multi-unit fleet standardization.
• Configurable protection thresholds: Overcurrent trip level, stall detection time, field loss response, and overspeed threshold are all parameter-configurable — allowing the drive to be adapted to motor nameplate data without hardware modification.
• Analog output for process monitoring: Configurable analog output (0–10 V or 4–20 mA) can mirror any internal process variable — speed, current, torque — to external instrumentation or DCS analog input cards.

Quality Assurance & Global Logistics

Every 6SA8252-0AC61 unit dispatched from our Xiamen facility is a genuine Siemens component sourced through verified industrial supply channels. The verification process covers: OEM label authentication (part number, date code, serial number cross-reference against Siemens production records where available), PCB visual inspection under magnification for solder joint integrity and component seating, and connector pin condition check. Units with any evidence of rework, counterfeit markings, or physical damage are rejected and not offered for sale.

Stock grades are clearly declared at quotation: new-in-box (NIB), surplus-new (unused, original packaging), or tested-serviceable (functionally verified, clearly marked). The 12-month warranty applies to all grades and covers defects in materials and workmanship under normal operating conditions.

Logistics from Xiamen, China: Standard export packaging uses anti-static foam-lined cartons with humidity indicator cards. Shipment options include DHL Express (3–5 business days to Europe/North America), FedEx International Priority (2–4 business days), and TNT/UPS on request. All shipments include commercial invoice, packing list, and Certificate of Origin. For orders requiring expedited customs clearance, we provide HS code documentation (8537.10) and technical product descriptions in English and Chinese. Tracking numbers are issued within 24 hours of dispatch.

For bulk procurement (>3 units) or project-based requirements, contact us for consolidated shipment pricing and lead time commitment.
