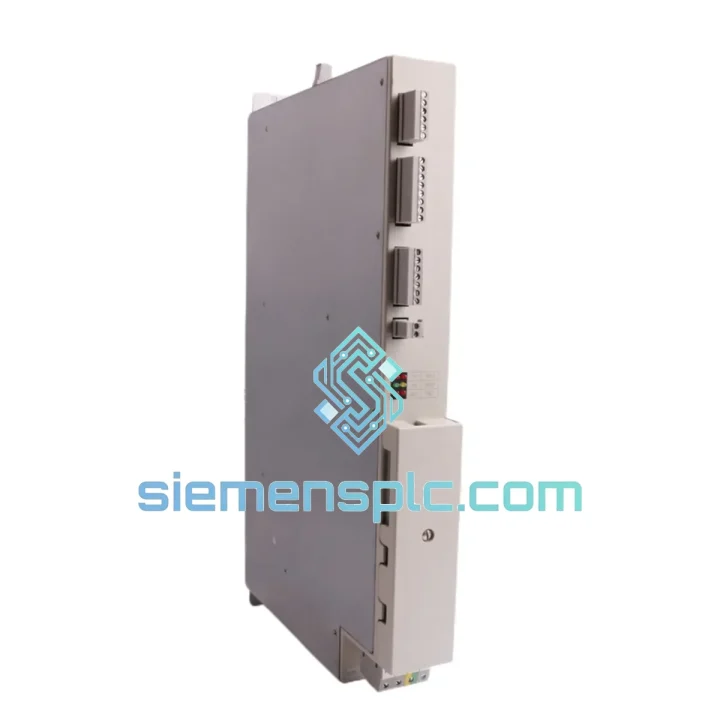

Siemens 6SC6110-0GA01 Servo Drive Module – SIMODRIVE 610

Siemens 6SC6110-0GA01: Single-Axis Servo Drive Module in the SIMODRIVE 610 Architecture

The Siemens 6SC6110-0GA01 is a single-axis servo drive module within the SIMODRIVE 610 modular drive system, engineered for closed-loop torque and velocity control of AC synchronous servo motors in high-demand CNC and industrial motion applications. Operating as a current-controlled PWM inverter stage, this module interfaces directly with the SIMODRIVE 610 power supply unit via the internal DC link bus, receiving regulated DC voltage and returning axis-specific current commands through the proprietary SIMODRIVE drive bus. Its role in the control loop is deterministic: it executes current vector regulation at the hardware level, decoupling the mechanical load dynamics from the CNC interpolation cycle and enabling sub-millisecond torque response without burdening the SINUMERIK controller’s computational resources.

Designed for cabinet integration in multi-axis machining centers, transfer lines, and precision grinding systems, the 6SC6110-0GA01 occupies a defined slot in the SIMODRIVE 610 drive rail and communicates with the SINUMERIK 840C, 840D, and 810D controllers through the drive bus protocol — not PROFIBUS. This architecture ensures that axis position data, current feedback, and fault diagnostics are exchanged on a dedicated, time-deterministic channel, preserving the real-time integrity of the CNC interpolation cycle even under high-axis-count configurations.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SC6110-0GA01 implements a three-phase IGBT inverter bridge with gate driver isolation between the control logic and the power stage. This galvanic separation is not merely a safety measure — it is a functional EMC design decision. By isolating the high-frequency switching transients (PWM carrier frequencies in the range of several kHz) from the signal-level control circuitry, the module maintains signal integrity on the encoder feedback lines and the drive bus interface even in electrically noisy cabinet environments typical of multi-axis CNC installations.

The current regulation loop operates at the hardware level within the module itself, not at the CNC controller. The SINUMERIK sends torque setpoints (or velocity setpoints in speed-control mode) via the drive bus, and the 6SC6110-0GA01’s onboard DSP executes the current vector calculation and PWM generation independently. This distributed processing architecture means that the current control bandwidth is not constrained by the CNC’s interpolation cycle time — the inner current loop closes at a rate several orders of magnitude faster than the position loop, enabling the stiff torque response required for precision contouring.

The encoder interface accepts incremental TTL signals from the motor’s resolver or encoder, with the module performing real-time signal conditioning and quadrature decoding. The resulting position and velocity data is fed back both to the local current controller and upstream to the SINUMERIK via the drive bus, maintaining a coherent position feedback chain without introducing latency from external signal processing hardware.

Thermal management is handled through an integrated heat sink with forced-air cooling compatibility. The module’s thermal protection logic monitors junction temperature via an NTC sensor and initiates a controlled deceleration ramp before triggering a fault shutdown, preventing abrupt axis stops that could damage workpieces or mechanical components in mid-cycle operations.

System Integration Benefits

• Deterministic current loop closure: The onboard DSP closes the current regulation loop locally, decoupling inner-loop bandwidth from the CNC interpolation cycle and enabling torque rise times below 1 ms under rated load conditions.
• Shared DC bus efficiency: Operating on the SIMODRIVE 610 common DC link allows regenerative energy from decelerating axes to be absorbed by accelerating axes within the same cabinet, reducing net energy draw from the supply module and lowering thermal load on the power section.
• Drive bus determinism: The proprietary SIMODRIVE drive bus operates on a fixed, isochronous cycle, ensuring that setpoint and feedback data exchange between the SINUMERIK and all drive modules occurs within a guaranteed time window — a prerequisite for multi-axis interpolation accuracy in contouring applications.
• Integrated fault diagnostics: The module reports overcurrent, overvoltage, encoder fault, and thermal overload conditions directly to the SINUMERIK via the drive bus, enabling the CNC to execute coordinated axis-safe stops rather than individual emergency shutdowns that could leave multi-axis systems in mechanically inconsistent states.
• Slot-based scalability: The SIMODRIVE 610 rail architecture allows additional 6SC6110-0GA01 modules to be added to expand axis count without modifying the power supply or bus wiring, provided the power supply module’s rated output current is not exceeded.
• Motor compatibility breadth: The module’s current control parameters are configurable to match the electrical characteristics of the 1FT5, 1FT6, and 1FK motor families, covering a wide range of torque and speed ratings within a single hardware platform.
• Reduced commissioning complexity: In systems where the SINUMERIK controller retains its machine data backup, replacing a 6SC6110-0GA01 with an identical unit requires only drive bus address assignment and motor data confirmation — no full axis recommissioning from scratch.
• Legacy system continuity: For installations where migrating to SINAMICS S120 is not economically justified, the 6SC6110-0GA01 provides a direct-replacement path that preserves existing wiring, motor assets, and CNC software without system-level redesign.

Quality Assurance & Global Logistics

Every 6SC6110-0GA01 unit shipped from our Xiamen, China facility undergoes a structured pre-shipment inspection protocol. Visual inspection covers connector integrity, PCB condition, IGBT module seating, and label authenticity against Siemens factory markings. Functional verification confirms drive bus communication response and gate driver output signal integrity where test equipment permits. Units are supplied with a traceable supply chain record and a 12-month warranty covering manufacturing defects and premature component failure under normal operating conditions.

Logistics from Xiamen are handled via DHL Express, FedEx International Priority, and UCP air freight channels, with typical transit times of 3–7 business days to Europe, North America, and Southeast Asia. Export documentation including commercial invoice, packing list, and certificate of origin is prepared for all international shipments. HS code classification is provided to facilitate customs clearance. For time-critical plant maintenance scenarios, expedited same-day dispatch is available for confirmed in-stock units upon order placement before 14:00 CST.
