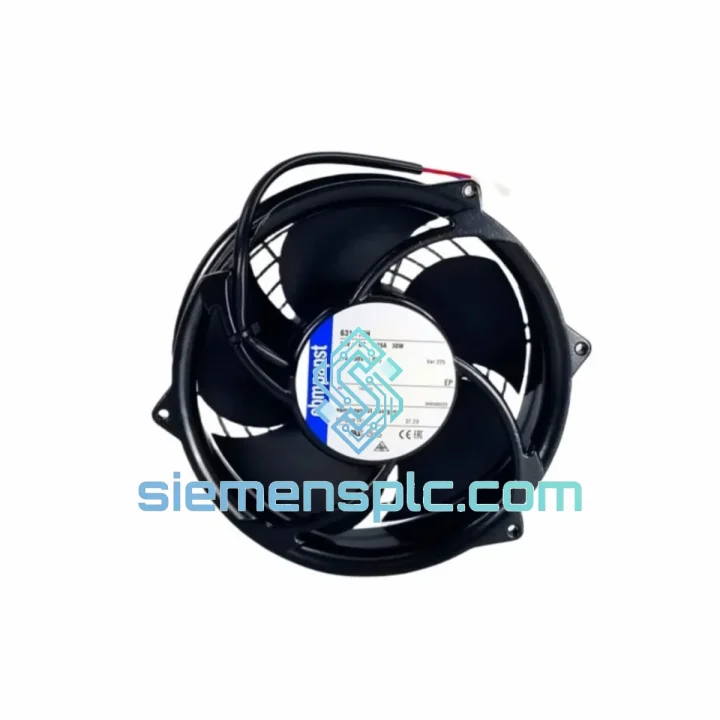

Siemens 6SE6400-7AA00-0AB0 VFD Cooling Fan Unit – MICROMASTER 430 440 FSF

Siemens 6SE6400-7AA00-0AB0 FSF Fan Unit — Thermal Load Management in MM4 Variable Frequency Drive Systems

The 6SE6400-7AA00-0AB0 is the OEM-specified axial cooling fan assembly for Frame Size FSF (Frame Size F) enclosures within the Siemens MICROMASTER 430 and MICROMASTER 440 (MM4) drive family. In any variable frequency drive, the power semiconductor stack — comprising the rectifier bridge, DC bus capacitor bank, and IGBT inverter module — generates continuous conduction and switching losses proportional to output current and switching frequency. At FSF frame ratings (typically 37–75 kW at 400 V AC), these thermal losses can exceed 1.5 kW under full-load continuous duty. The fan unit is the primary mechanism by which this heat is extracted from the heatsink fin array and expelled from the drive enclosure before junction temperatures approach the IGBT’s thermal derating threshold.

The fan assembly mounts at the base of the FSF drive chassis and draws ambient air upward through the internal heatsink in a bottom-to-top forced convection path. This orientation is deliberate: it aligns with the natural buoyancy of heated air and ensures that the coolest available ambient air contacts the rectifier section first, before passing across the higher-dissipation IGBT modules. The motor driving the fan impeller is powered directly from the drive’s internal 230 V AC or 400 V AC auxiliary supply rail, meaning fan operation is tied to drive energization — a design choice that eliminates the need for external fan control wiring and simplifies panel integration.

Bearing selection in this unit uses sealed ball bearings rated for continuous industrial duty. Unlike sleeve-bearing fans, ball-bearing designs maintain consistent airflow performance across the full ambient temperature range (−10 °C to +50 °C) and exhibit a predictable wear curve that supports condition-based maintenance scheduling. Siemens documents a recommended inspection interval of 30,000 operating hours and a replacement interval of 50,000 hours — figures that translate to approximately 5.7 years of 24/7 continuous operation before mandatory replacement. In practice, high-ambient or high-vibration installations may require earlier intervention, detectable via audible bearing noise or a measurable reduction in heatsink airflow velocity.

Failure to maintain the fan unit is the single most common root cause of MM4 drive fault codes F0004 (overtemperature inverter) and F0005 (overtemperature rectifier). These faults trigger a protective drive trip, halting the controlled process. In pump and HVAC applications running 24/7, an unplanned trip can cascade into process upsets, water hammer events, or HVAC zone failures. In conveyor and material handling lines, a drive trip stops product flow and may require manual re-sequencing of upstream and downstream equipment. Proactive fan replacement at the Siemens-specified interval eliminates this failure mode entirely at a component cost that is orders of magnitude lower than IGBT module replacement or full drive exchange.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The thermal architecture of the MM4 FSF drive is engineered around a single-pass forced-air cooling loop. The heatsink is an extruded aluminum fin array with a fin pitch and depth calculated to achieve the required thermal resistance (heatsink-to-ambient, Rth(h-a)) at the rated airflow volume delivered by this fan unit. Substituting a non-OEM fan with a different static pressure curve shifts the operating point on the fan-system curve, reducing actual airflow below the design value and increasing Rth(h-a). Even a 15% reduction in airflow can raise IGBT junction temperature by 8–12 °C under full load — sufficient to accelerate electromigration in bond wires and reduce IGBT lifetime by a statistically significant margin.

The fan motor’s internal thermal protection (PTC or bimetallic cutout) is coordinated with the drive’s overtemperature monitoring logic. If the fan motor itself overheats due to blocked airflow or bearing seizure, the motor protection opens before the fan stalls completely, giving the drive’s temperature sensors time to detect rising heatsink temperature and execute a controlled ramp-down rather than an instantaneous trip. This two-stage protection sequence reduces mechanical stress on the driven load during shutdown.

From an EMC perspective, the fan motor is a potential source of conducted and radiated emissions within the drive enclosure. The OEM fan unit incorporates motor winding suppression and connector-level filtering matched to the MM4 drive’s internal EMC design. Third-party fans without equivalent suppression can introduce high-frequency noise onto the drive’s internal 24 V DC logic rail, causing spurious digital input activations or communication errors on the USS/PROFIBUS interface — failure modes that are difficult to trace without oscilloscope analysis of the logic supply.

The mechanical mounting interface uses a captive-fastener system that constrains the fan assembly in all six degrees of freedom without requiring torque-sensitive fasteners. This design tolerates the vibration spectrum typical of industrial panel installations (IEC 60068-2-6, 10–150 Hz, 1 g) without fastener loosening over the service life of the unit.

System Integration Benefits

• Deterministic thermal headroom: Maintaining OEM airflow volume keeps IGBT junction temperatures within the design envelope, preserving the drive’s full current output capability without thermal derating across the entire ambient temperature range.
• Fault code elimination: Proactive replacement at the 50,000-hour interval removes F0004 and F0005 from the fault history, improving drive availability metrics and simplifying maintenance reporting.
• Zero wiring modification: Identical connector pinout and cable length to the original unit; replacement is completed without panel rewiring, reducing maintenance window duration to under 30 minutes for a trained technician.
• Preserved EMC compliance: OEM suppression components maintain the drive’s CE-marked EMC performance, ensuring continued compliance with EN 61800-3 Category C2/C3 emission limits after maintenance.
• Condition-based maintenance alignment: The ball-bearing wear curve is predictable and audible, enabling maintenance teams to schedule replacement during planned shutdowns rather than responding to unplanned trips.
• IGBT lifetime extension: Each 10 °C reduction in junction temperature approximately doubles power semiconductor lifetime per Arrhenius thermal aging models; maintaining design airflow directly extends IGBT service life.
• Warranty and documentation compliance: Use of the Siemens OEM part number satisfies service documentation requirements for installations under extended Siemens service contracts or OEM machine warranties.
• Reduced total maintenance cost: Fan unit cost is typically less than 1% of IGBT module replacement cost; the cost-benefit ratio of scheduled fan replacement versus reactive power module replacement is unambiguous in any lifecycle cost analysis.
• Diagnostic transparency: A functioning fan unit ensures that the drive’s internal temperature sensors report accurate heatsink temperatures, maintaining the integrity of the drive’s thermal diagnostic data for predictive maintenance systems.
• Multi-application compatibility: A single part number covers both MM430 (pump/fan/HVAC optimized) and MM440 (general purpose/vector control) at FSF frame size, simplifying spare parts inventory management for sites operating mixed MM4 fleets.

Quality Assurance & Global Logistics

Every 6SE6400-7AA00-0AB0 unit dispatched from our Xiamen, China facility is sourced through verified Siemens authorized distribution channels. Each unit undergoes a structured pre-shipment inspection protocol: OEM packaging and label authentication against Siemens current label standards, bearing spin-test to confirm smooth rotation and absence of audible defects, blade integrity and balance check, and connector continuity verification across all pins. Traceability records including batch and lot numbers are retained for a minimum of five years.

Outbound logistics from Xiamen are handled via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe, 4–6 business days to North America, and 2–4 business days to Southeast Asia. Export documentation including commercial invoice, packing list, and certificate of origin is prepared to the destination country’s import requirements. A certificate of conformity is available upon request for all orders. All shipments are covered by cargo insurance. In-stock orders are dispatched within 1 business day of payment confirmation. A 12-month warranty from the date of shipment covers manufacturing defects under normal operating conditions.
