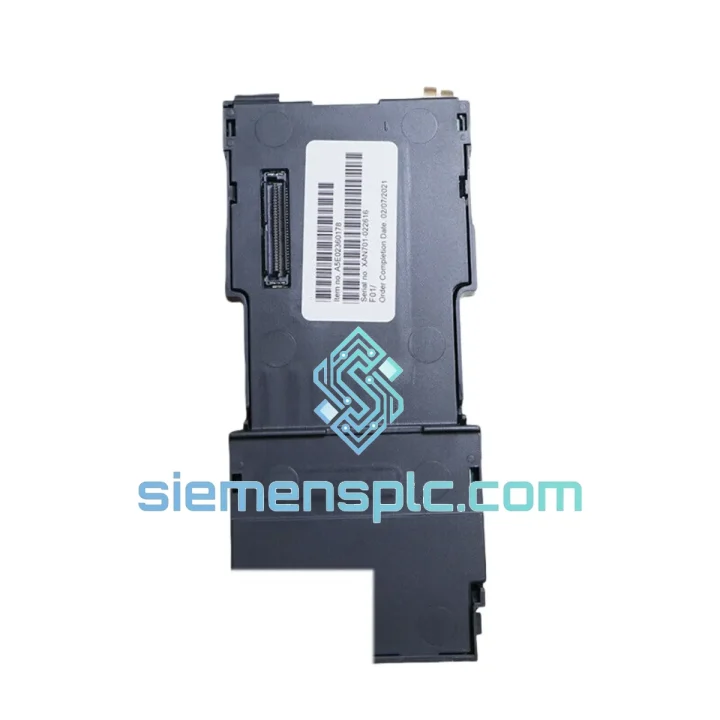

Siemens 6SE6400-7AA00-0BA0 Operator Panel – MICROMASTER 4

Siemens 6SE6400-7AA00-0BA0 Basic Operator Panel — Local Parameter Interface for MICROMASTER 4 Variable Frequency Drives

The 6SE6400-7AA00-0BA0 is the factory-standard Basic Operator Panel (BOP) for the Siemens MICROMASTER 4 drive family, covering the MM410, MM420, MM430, MM440, and COMBIMASTER 411 platforms. Within a drive control loop, this panel occupies the human-machine interface layer: it provides the physical access point through which commissioning engineers read and write drive parameters, acknowledge fault states, and issue manual motor commands — all without requiring a PLC, fieldbus connection, or external power supply. The BOP draws its operating power directly from the drive’s front-panel connector, making it a self-contained diagnostic and configuration tool that can be carried between drive cabinets during site commissioning or maintenance campaigns.

In process-critical environments — water treatment stations, HVAC plant rooms, compressor halls, and conveyor systems — the ability to interrogate a drive locally and in real time is not a convenience; it is a maintenance requirement. The 6SE6400-7AA00-0BA0 satisfies that requirement with a 5-digit, 7-segment LED display that surfaces parameter values, Fxxxx fault codes, and Axxxx alarm codes with no ambiguity. Mean time to repair (MTTR) is directly reduced because the technician reads the fault code at the drive face rather than retrieving it through a SCADA terminal or laptop connection.

The panel’s snap-fit mechanical interface mates with the MICROMASTER 4 front-panel slot in a single motion, requiring no tools, no cables, and no firmware configuration. This zero-wiring architecture is deliberate: it eliminates the connector-degradation failure modes associated with ribbon cables and DB9 adapters that are common on competing operator panel designs. The BOP can be removed and reinserted thousands of times without measurable wear to the drive’s panel connector, a characteristic that makes it practical to share a single BOP across an entire drive bank during initial commissioning, then leave it permanently installed on the primary drive or store it as a certified spare.

Parameter access covers the full MICROMASTER 4 parameter set — P-parameters for configuration and r-parameters for read-only monitoring — navigated via the five-button keypad (UP, DOWN, FN, P, RUN/STOP). The BOP does not support parameter upload or download between drives; that function is reserved for the Advanced Operator Panel (AOP, 6SE6400-7AA00-0AA0). For single-drive commissioning and field diagnostics, however, the BOP provides complete parameter visibility at a significantly lower cost point than the AOP, making it the standard choice for OEM machine builders and system integrators who embed one panel per drive enclosure.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SE6400-7AA00-0BA0 interfaces with the MICROMASTER 4 drive through a proprietary serial bus embedded in the front-panel connector. This bus carries both the panel’s DC operating power and the bidirectional parameter data stream, eliminating the need for a separate communication cable. The serial protocol is synchronous and polled: the drive acts as master, the BOP as slave, with the drive initiating each data exchange cycle. This master-slave architecture ensures that the BOP cannot corrupt drive operation by issuing unsolicited write commands — all parameter writes are validated by the drive’s firmware before being committed to non-volatile memory (EEPROM).

The 7-segment LED display is driven by a dedicated display controller within the BOP, which buffers the incoming data stream and refreshes the display at a rate sufficient to present stable numeric readouts even during rapid parameter scrolling. The LED technology is selected over LCD for its superior readability across the full operating temperature range (0 °C to +50 °C) and its resistance to vibration-induced pixel failure — a relevant consideration in compressor and conveyor environments where panel-mounted drives are subject to continuous mechanical vibration.

From an EMC standpoint, the BOP’s internal circuitry is designed to the same conducted and radiated emission limits as the MICROMASTER 4 drive itself, in accordance with EN 61800-3 Category C2. The front-panel connector incorporates filtering to suppress high-frequency noise generated by the drive’s IGBT switching stages (typically 4–16 kHz carrier frequency) from propagating into the BOP’s display and keypad logic. This filtering is implemented at the connector level rather than on the BOP PCB, which means the BOP maintains clean signal integrity even when installed on drives operating at maximum switching frequency with long motor cables.

The keypad debounce logic is implemented in firmware on the BOP’s microcontroller, with a configurable hold-time threshold that prevents accidental parameter increments during vibration events. The FN (function) key implements a two-key combination lock for motor start commands, requiring a deliberate sequential press sequence — a hardware-level safety interlock that prevents inadvertent motor starts during parameter navigation.

System Integration Benefits

• Deterministic local control loop closure: The BOP allows operators to close a manual speed-reference loop directly at the drive without introducing network latency from a PLC or SCADA layer, which is essential during commissioning when fieldbus addresses have not yet been assigned.
• Fault transparency at the drive face: All MICROMASTER 4 fault codes (F0001–F0999) and alarm codes (A0501–A0952) are displayed in real time, enabling first-response diagnosis without a laptop or diagnostic software.
• Parameter integrity via EEPROM write confirmation: Every parameter write is confirmed by the drive’s firmware before the BOP display updates, giving the engineer immediate visual confirmation that the new value has been stored in non-volatile memory.
• Hot-swap capability across drive bank: The BOP can be removed from one drive and inserted into another while both drives are powered, enabling a single panel to serve an entire drive bank during commissioning without requiring a system shutdown.
• Reduced spare-parts inventory cost: One BOP covers all four MICROMASTER 4 variants (MM410/420/430/440) and COMBIMASTER 411, allowing maintenance teams to stock a single panel SKU rather than model-specific HMI units.
• Jog function for mechanical alignment: The dedicated jog command allows maintenance engineers to inch a motor shaft for coupling alignment or belt tensioning without modifying the drive’s run-enable wiring.
• Setpoint override for process tuning: The BOP’s UP/DOWN keys provide direct frequency setpoint adjustment in 0.01 Hz increments, enabling precise process tuning during initial commissioning without PLC program modifications.
• Fault acknowledgment without PLC intervention: Fault reset can be executed directly from the BOP keypad, allowing a technician to clear a drive fault and restart the motor without requiring a PLC command or SCADA operator action — critical for minimizing downtime in unmanned plant rooms.

Quality Assurance & Global Logistics

Every 6SE6400-7AA00-0BA0 unit supplied by siemensplc.com is sourced through verified Siemens industrial distribution channels. Each unit undergoes a structured incoming inspection protocol before dispatch:

• OEM packaging integrity check — original Siemens carton, label, and holographic seal verified
• Date code and batch traceability cross-referenced against Siemens production records
• Functional plug-in test on a live MICROMASTER 4 drive: parameter read/write, fault display, and motor start/stop commands verified
• Anti-static bag and foam-lined shipping carton for international freight protection

No grey-market, refurbished, or third-party-repackaged units are supplied. All products carry a 12-month warranty against manufacturing defects from the date of dispatch.

Logistics are managed from our warehouse in Xiamen, China. Standard international shipments are dispatched within 1–3 business days of order confirmation via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, depending on destination. Full export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (HS 8537.10) — is provided for customs clearance in all major import markets including the EU, USA, Southeast Asia, and the Middle East.
