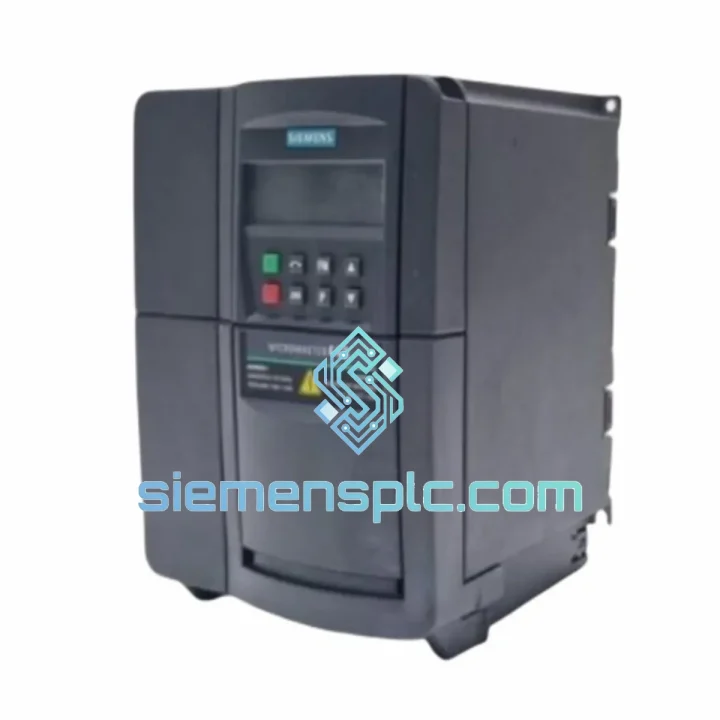

Siemens 6SE6440-2AD22-2BA1 Variable Frequency Drive

6SE6440-2AD22-2BA1 — Every Hour of Downtime Costs You Money. We Ship Today.

Your line is stopped. The MM440 drive tripped and won’t reset. Maintenance has confirmed the 6SE6440-2AD22-2BA1 is dead. You’ve already lost two hours of production — and every hour that passes is burning through your margin. This is exactly the scenario we exist for.

We stock the Siemens 6SE6440-2AD22-2BA1 — a 2.2 kW, 3-phase 200–240 V MICROMASTER 440 variable frequency drive — in Xiamen, China, ready for same-day dispatch via DHL Express or FedEx International Priority. No lead time negotiation. No factory backorder. The unit is on the shelf, tested, and boxed.

URGENT REQUIREMENT? Contact us immediately:
📧 [email protected] | 📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on MM440 drives, these are the failure modes and swap pitfalls that actually bite engineers on-site:

Top Fault Codes on a Dead 6SE6440-2AD22-2BA1:

• F0001 (Overcurrent): IGBT bridge failure — most common hard failure. Drive won’t reset regardless of load. Replacement is the only fix once the gate driver board is gone.
• F0002 (Overvoltage): DC bus capacitor degradation. Check bus voltage with a meter before condemning — if bus reads >420 V DC at rest, the braking circuit or caps are the culprit.
• F0003 (Undervoltage): Input rectifier diode failure or blown input fuse. Verify 3-phase input voltage at L1/L2/L3 terminals before assuming drive fault.
• F0004 (Drive Overtemperature): Internal fan seized or heatsink clogged. On a 2.2 kW unit the fan is non-replaceable in the field — if the drive has been running hot for months, the IGBT junction is likely already degraded.
• F0011 (Motor Overtemperature): PTC thermistor input triggered. Check motor winding resistance and thermistor continuity before swapping the drive — this fault is often a motor issue, not a drive issue.
• A0501 / F0051 (Parameter EEPROM fault): Internal memory corruption. Attempt factory reset (P0010=30, P0970=1). If fault persists after reset, the control board is gone.

Replacement Procedure — Field Checklist:

1. Parameter backup first. If the old drive still powers up (even faulted), connect BOP-2 or AOP and upload parameters to the panel memory. Alternatively, use STARTER software over RS-485 to save a .drv file. A dead drive means you’re re-entering parameters manually — have the original commissioning sheet ready.
2. Isolate and lock out. Confirm 3-phase input is isolated and DC bus has discharged below 50 V DC (measure at DC+/DC– terminals). MM440 bus capacitors hold charge for up to 5 minutes after power-off. Do not skip this.
3. Document all terminal wiring before disconnecting. Photograph the control terminal strip (X1) and power terminals. The 6SE6440-2AD22-2BA1 uses a 3-phase input — verify L1/L2/L3 phase rotation matches the original installation to avoid motor reverse rotation on first start.
4. Check DIP switch S1 on the control board. This switch sets the analog input AI1 signal type (voltage vs. current). On the replacement unit, factory default is 0–10 V. If your process uses 4–20 mA setpoint, flip S1 to the current position before powering up — failure to do this causes erratic speed reference and is a common commissioning mistake.
5. Firmware version awareness. The 6SE6440-2AD22-2BA1 has seen multiple firmware revisions (V3.x through V4.7). If your plant uses PROFIBUS with a GSD file tied to a specific firmware version, confirm the replacement unit’s firmware matches. Check P0018 after first power-up. Firmware downgrade requires Siemens STARTER software and a USB-RS485 adapter.
6. Motor data re-entry (P0300–P0350). Even if you restore parameters from backup, verify motor nameplate data: rated voltage (P0304), rated current (P0305), rated frequency (P0310), rated speed (P0311), rated power (P0307). A mismatch here causes immediate F0011 or poor torque performance.
7. Run motor identification (P1910=1). After parameter entry, execute stationary motor identification with the motor connected but mechanically uncoupled if possible. This calibrates stator resistance and improves SVC performance — skipping this step on a new drive-motor pairing degrades speed regulation accuracy.
8. First start: run at 5 Hz for 30 seconds. Verify rotation direction, check output current on P0027, confirm no fault codes. Only then ramp to full speed.

Reliability in Harsh Conditions

The MM440 platform was designed for industrial environments where consumer-grade electronics simply don’t survive. The 6SE6440-2AD22-2BA1 is built to operate continuously in conditions that would kill lesser drives within months.

The power stage uses Siemens-qualified IGBTs with a junction temperature rating of 150°C, paired with a thermally optimized heatsink that maintains safe operating temperatures up to 50°C ambient without derating. The forced-air cooling system is designed for continuous duty — not the intermittent-rated fans found in budget drives.

Vibration resistance meets IEC 60068-2-6 Class 3M4 requirements: 0.075 mm displacement at 10–57 Hz, 1 g acceleration at 57–150 Hz. This makes the drive suitable for installation on machine frames subject to mechanical vibration from pumps, compressors, and conveyor drives without additional isolation mounts.

Humidity tolerance is rated to 95% relative humidity, non-condensing, per IEC 60068-2-3. The conformal-coated control board provides additional protection against moisture ingress and corrosive atmospheres — a critical feature in food processing, chemical, and coastal installations where humidity cycling is unavoidable.

The DC bus capacitors are rated for 100,000 hours at 40°C — roughly 11 years of continuous operation at rated temperature. In practice, drives in well-ventilated enclosures routinely exceed 15 years of service life. The units we supply are either factory-new or have been fully reconditioned with capacitor replacement and IGBT testing to restore original performance specifications.

EMC compliance is achieved through the integrated Class A filter, with the option to add an external Class B filter for installations requiring stricter conducted emission limits. This eliminates the need for external line reactors in most standard industrial applications, reducing panel space and installation cost.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. This geography is not accidental: it means your replacement drive clears Chinese customs faster and connects to international express networks with fewer intermediate handling steps than inland warehouse locations.

Standard dispatch timeline:

• Order confirmed before 14:00 CST: Same-day dispatch. DHL Express or FedEx International Priority label generated within 2 hours of payment confirmation.
• Order confirmed after 14:00 CST: Next business day dispatch, typically before 10:00 CST.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Vietnam): 2–3 business days
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days
• Europe (Germany, UK, Netherlands, Poland): 3–5 business days
• North America (USA, Canada, Mexico): 4–6 business days
• Australia / New Zealand: 3–5 business days
• South America (Brazil, Chile, Colombia): 5–8 business days

Every shipment includes a commercial invoice with accurate HS code (8504.40) and declared value for customs clearance. We provide the packing list, test report, and tracking number within 1 hour of dispatch. For customers in countries with import duty exemptions on industrial automation components, we can provide a certificate of origin upon request.

For critical shutdowns where air freight lead time is still too long, contact us directly — we have relationships with freight forwarders who operate charter consolidation flights from Xiamen to major industrial hubs. In documented emergency situations, we have achieved door-to-door delivery in under 36 hours to European destinations.
