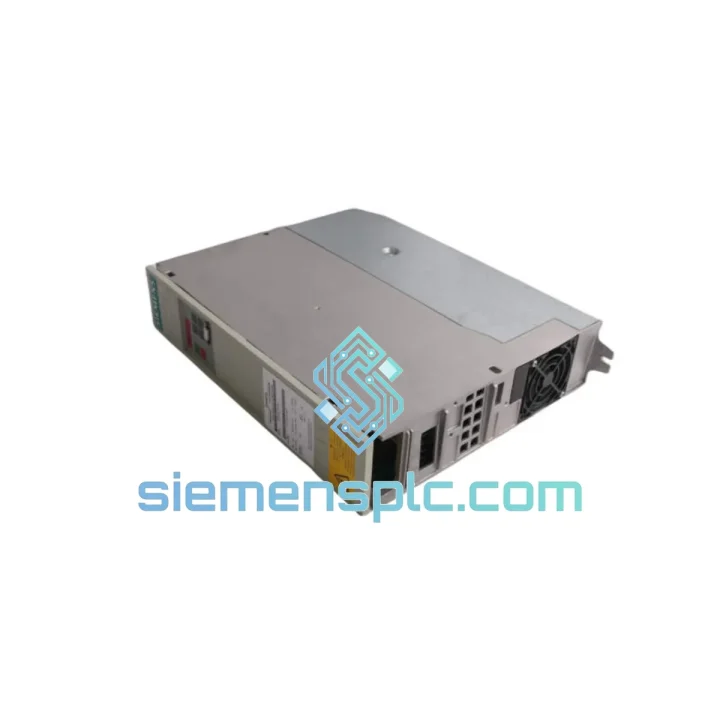

Siemens 6SE7021-0EA51-Z C33+F01+G91 AC Drive

6SE7021-0EA51-Z C33+F01+G91 — Stop the Bleeding: Every Hour of Downtime Costs More Than This Drive

Your CNC spindle just tripped. The MASTERDRIVES MC fault LED is solid red. The shift supervisor is standing behind you. You already know the part number — 6SE7021-0EA51-Z C33+F01+G91 — because you’ve replaced one before, or because the nameplate is right in front of you. What you need now is not a brochure. You need a unit on a plane tonight.

We stock the Siemens 6SE7021-0EA51-Z C33+F01+G91 in Xiamen, China. DHL Express to Frankfurt, Chicago, Singapore, or São Paulo typically clears customs and lands at your door in 3–5 business days. For critical shutdowns, we can arrange same-day dispatch on orders confirmed before 14:00 CST. This is not a lead-time estimate — it is a logistics commitment backed by a decade of emergency parts fulfillment.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault codes that bring you to this page:

• F002 / F003 — DC link overvoltage / undervoltage: Often caused by a failed brake chopper (F01 option). If the chopper IGBT has shorted, the drive will trip on regenerative braking. Confirm with a DC bus voltage measurement before condemning the entire unit — sometimes only the chopper module needs replacement. But if the main board has latched the fault and won’t reset after a power cycle, the converter itself is the culprit.
• F011 — Motor overtemperature / I²t overload: Cross-check motor thermal model parameters (P0610–P0614) before swapping the drive. A misconfigured thermal model will trip a perfectly healthy unit. If parameters are correct and the fault persists across a cold start, the drive’s current measurement circuit may be drifting — replace the unit.
• F023 — Encoder fault / speed feedback loss: Before pulling the drive, check the encoder cable shield continuity and the HTL/TTL voltage at the drive terminal. A broken shield on a long encoder run will inject noise that mimics a drive fault. If the encoder checks out, the C33 option board’s differential receiver may have failed — this is a board-level fault, not repairable in the field.
• F041 — EEPROM / parameter memory fault: This fault after a power surge almost always means the parameter RAM on the CU (Control Unit) board is corrupted. You will need to reload parameters from a backup (DriveMonitor / Starter project file). If you don’t have a backup, contact us — we can supply a factory-default unit and walk you through re-parameterization.

Replacement procedure — what experienced FAEs check before powering up a new unit:

1. DIP switch / address settings: The 6SE7021-0EA51-Z uses hardware address switches on the CU board for PROFIBUS node address. Before removing the old drive, photograph the switch positions. The new unit ships with factory defaults — you must replicate the original address or the PLC will not find the drive on the bus.
2. Option board seating: The C33 I/O expansion board and F01 brake chopper module must be firmly seated in their respective slots. Vibration in transit can loosen connectors. Power off, reseat all option boards, and torque the retaining screws before first power-on.
3. Parameter upload: The 6SE70 series does not auto-clone parameters from a replaced unit. You must upload your saved parameter set via DriveMonitor (P0010 = 30 for factory reset, then load your .par file). If no backup exists, you will need to re-enter all motor data (P0300–P0350), encoder configuration (P0400 series), and application-specific ramp/torque limits manually.
4. Firmware version matching: Check the firmware version on the CU board label (e.g., V1.4x). If your system uses a SIMATIC S7 with a specific GSD file version, a firmware mismatch can cause PROFIBUS communication errors even if the hardware is identical. Confirm firmware compatibility before installation.
5. DC bus pre-charge: Do not connect the drive to a live DC bus without confirming the pre-charge circuit is functional. A hard connection to a charged bus will stress the input capacitors and can cause immediate failure. Use the standard AC supply sequence and allow the pre-charge relay to complete its cycle.
6. First run — no-load test: Before reconnecting the motor, run the drive in no-load mode (P0010 = 0, enable with a jog command) and verify the output voltage and frequency are correct. This confirms the power stage is healthy before you put mechanical load on it.

Reliability in Harsh Conditions

The SIMOVERT MASTERDRIVES MC platform was not designed for climate-controlled server rooms. It was engineered for the floor — foundry auxiliary drives running at 45°C ambient, coastal packaging lines where salt-laden air corrodes unprotected boards within months, and press shops where the floor vibrates at 8–12 Hz continuously during production shifts.

The 6SE7021-0EA51-Z C33+F01+G91 carries a conformal coating on its control boards as standard, providing protection against condensation and airborne contaminants. The forced-air cooling system is designed with a filtered intake path — but that filter requires quarterly cleaning in dusty environments. A clogged filter is the single most common cause of premature thermal failure on this platform in foundry and woodworking applications. If your failed unit shows heat discoloration on the power module heatsink, check the filter before assuming the replacement will last longer without addressing the root cause.

Vibration tolerance is rated to IEC 60068-2-6 (sinusoidal) and IEC 60068-2-64 (random). In press shop installations where the drive cabinet is bolted directly to the press frame, we recommend installing anti-vibration mounts on the cabinet feet. Units installed without isolation in high-vibration environments show accelerated failure of the DC bus capacitors and solder joint fatigue on the power board — typically manifesting as intermittent F002 faults that become permanent within 6–18 months.

Operating temperature range is 0°C to +40°C at full rated current, with derating above 40°C. In practice, the drive will operate reliably up to 55°C ambient with appropriate current derating applied — consult the derating curves in the MASTERDRIVES MC engineering manual (Siemens document 6SE7087-6AK85-0AA0) for your specific application.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental. It gives us same-day handoff to DHL Express, FedEx International Priority, and UPS Worldwide Express for urgent shipments, and access to sea freight consolidators for cost-sensitive bulk orders.

Typical transit times from Xiamen:

• Germany / Netherlands / UK: 3–4 business days (DHL Express)
• USA (East Coast): 3–5 business days (FedEx International Priority)
• USA (West Coast): 2–4 business days (FedEx International Priority)
• Singapore / Malaysia / Thailand: 2–3 business days (DHL Express)
• Brazil / Mexico: 5–7 business days (DHL Express, subject to customs)
• Australia / New Zealand: 3–5 business days (DHL Express)

Every shipment includes a commercial invoice with accurate HS code classification (HS 8504.40 for AC drives), a packing list, and a certificate of origin where required. For EU imports, we provide the necessary documentation for customs clearance under standard MFN tariff rates. For customers in countries with import restrictions on industrial electronics, we can advise on the appropriate import procedure — contact us before ordering if you have specific customs requirements.

All units are packed in double-wall corrugated cartons with 50mm EPS foam inserts on all six faces. Sensitive option boards are individually wrapped in anti-static bags before boxing. We have shipped to 47 countries without a single transit damage claim — and we intend to keep it that way.
