Siemens 6SE7090-0XX84-0FF5 Drive Control Board – SIMOVERT MASTERDRIVES

Siemens 6SE7090-0XX84-0FF5 SIMOVERT MASTERDRIVES Interface Control Board — Role in the Drive Control Loop

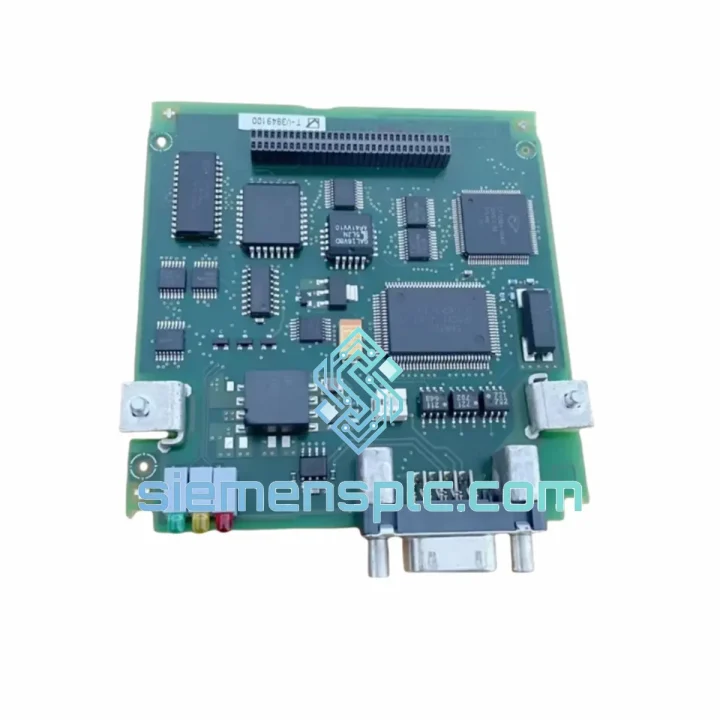

The Siemens 6SE7090-0XX84-0FF5 (internal PCB reference: A5E00364662) is the central control and interface board for the SIMOVERT MASTERDRIVES platform — Siemens’ established AC variable-frequency drive series deployed across heavy industry, process automation, and infrastructure applications. This board occupies the command layer of the drive architecture: it arbitrates between the fieldbus master, the closed-loop vector control algorithm, and the power electronics gate driver stage. Without a functioning control board, the drive’s IGBT switching sequence cannot be coordinated, making this component the single most critical replaceable unit in the MASTERDRIVES assembly.

In a typical MASTERDRIVES Vector Control (VC) installation, the 6SE7090-0XX84-0FF5 receives setpoint data from a PROFIBUS-DP or USS master, executes the flux-vector or V/f control algorithm in real time, and outputs PWM timing signals to the gate driver board. It simultaneously monitors DC-link voltage, output current, heatsink temperature, and encoder feedback — feeding fault data back to the supervisory control system with millisecond-level latency. This deterministic closed-loop behavior is what separates a properly functioning MASTERDRIVES unit from an uncontrolled motor load.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SE7090-0XX84-0FF5 is built around a dual-processor architecture: a primary DSP handles the real-time vector control computation cycle (typically 1–4 ms sampling period), while a secondary microcontroller manages fieldbus communication, parameter storage, and fault logging independently. This separation ensures that a PROFIBUS communication fault does not interrupt the motor control loop — the drive continues executing the last valid setpoint until a configurable timeout triggers a controlled ramp-down.

Optical Isolation on Digital I/O: All six digital inputs pass through 4N35-class optocouplers with a minimum isolation voltage of 2.5 kV RMS. This galvanic barrier prevents ground loop currents — common in large motor installations where PE potential differences between cabinet and field device can reach several volts — from corrupting the logic-level signals reaching the DSP input registers.

EMC Design: The PCB layout follows Siemens’ internal EMC partitioning rules: the analog signal ground plane is physically separated from the digital ground plane, with a single star-point connection at the power supply decoupling stage. High-frequency bypass capacitors (100 nF X7R ceramic) are placed within 3 mm of each IC power pin. The PROFIBUS transceiver section uses a dedicated isolated DC/DC converter to float the bus ground from the drive’s internal reference — a requirement for correct PROFIBUS-DP operation in multi-drive topologies where bus cable shields are grounded at one end only.

Encoder Signal Conditioning: The HTL/TTL encoder input stage includes a differential line receiver (RS-422 compatible) with 120 Ω termination resistors switchable via onboard jumpers. Input frequency handling up to 300 kHz supports high-resolution encoders (e.g., 2048 PPR at 3000 RPM) without pulse dropout. A hardware quadrature decoder pre-processes A/B/Z signals before the DSP interrupt handler, reducing CPU load during high-speed positioning tasks.

Parameter Memory: Drive parameters are stored in onboard EEPROM (non-volatile, rated for 100,000 write cycles). On power-up, the board performs a CRC checksum validation of the parameter block before enabling the gate driver outputs — preventing operation with corrupted configuration data, which is a common failure mode after power interruptions during parameterization.

System Integration Benefits

• Deterministic PROFIBUS-DP Cycle: The board’s PROFIBUS ASIC (SPC3 or equivalent) handles token-passing and data exchange in hardware, guaranteeing bus cycle times independent of the host DSP load — critical for coordinated multi-axis applications where all drives must update setpoints within the same PLC scan cycle.
• Closed-Loop Vector Control Accuracy: With 12-bit analog input resolution and a 1–4 ms control cycle, speed regulation accuracy reaches ±0.01% of rated speed (with encoder feedback), suitable for winding, extruder, and draw-roll applications where speed matching between drives is process-critical.
• Fault Transparency: The board logs the last 8 fault events with timestamp, fault code, and operating values (speed, current, DC-link voltage) at the moment of trip. This data is readable via DriveMonitor over RS-232 or via PROFIBUS acyclic services — eliminating the need for external data loggers during fault investigation.
• Parameterization Without Power Cycling: Most control parameters (ramp times, setpoint sources, PID gains) can be modified online via PROFIBUS acyclic write services without stopping the drive — reducing commissioning downtime in continuous-process plants.
• Dual Setpoint Sources: The board supports simultaneous analog and fieldbus setpoint inputs with configurable priority logic. In the event of a PROFIBUS fault, the drive can automatically fall back to the analog input setpoint — maintaining process continuity without PLC intervention.
• Relay Output for External Interlocking: Three relay outputs with 250 VAC / 2 A rating allow direct wiring to motor contactors, brake solenoids, or PLC digital inputs without intermediate relay modules — simplifying cabinet wiring and reducing potential failure points.
• Encoder-Based Speed Feedback Loop: When an HTL/TTL encoder is connected, the board switches from open-loop V/f to closed-loop flux-vector control automatically, improving torque linearity at low speeds (down to ~1 Hz output frequency) — relevant for hoists, extruders, and test stands requiring controlled low-speed torque.
• Firmware Upgrade Path: The board’s flash memory supports firmware updates via the RS-232 port using Siemens’ Starter or DriveMonitor tools, allowing bug fixes and feature additions without board replacement — extending the serviceable life of existing MASTERDRIVES installations.

Quality Assurance & Global Logistics

Every 6SE7090-0XX84-0FF5 unit supplied by siemensplc.com is sourced through verified industrial supply channels and undergoes a structured pre-dispatch inspection:

• Authenticity Verification: Siemens order number and PCB reference (A5E00364662) are cross-checked against Siemens’ published documentation. Label fonts, holographic markings, and date codes are inspected for consistency.
• Visual PCB Inspection: Board examined under magnification for solder joint integrity, component seating, trace damage, electrolytic capacitor bulging, and corrosion on connector pins.
• Functional Bench Test: Where test fixtures are available, the board is powered at 24 VDC and digital I/O continuity is verified. PROFIBUS transceiver response is checked with a protocol analyzer.
• ESD-Safe Packaging: Boards are packed in anti-static shielding bags, placed in foam-lined cartons, and sealed with moisture-barrier desiccant packs — meeting IEC 61340-5-1 handling requirements for ESD-sensitive assemblies.
• Export Documentation: Each shipment includes a commercial invoice, packing list, and certificate of origin compliant with Xiamen Customs export procedures. HS code classification is provided for customs clearance at destination.
• 12-Month Warranty: siemensplc.com provides a 12-month functional warranty from dispatch date. Units that fail under normal operating conditions within this period are replaced or credited — no restocking fees, no ambiguity.

Logistics from Xiamen, China: Xiamen Gaoqi International Airport and Xiamen Port together form one of South China’s primary export hubs, with direct cargo routes to Frankfurt, Amsterdam, Los Angeles, Dubai, and Singapore. Standard export lead time for in-stock units is 1–3 business days to dispatch. Typical transit times: Europe 3–5 days (DHL Express), North America 3–5 days (FedEx International Priority), Southeast Asia 2–3 days (SF International). Bulk orders above 10 units can be consolidated for sea freight via Xiamen Port with full FCL/LCL documentation support.
