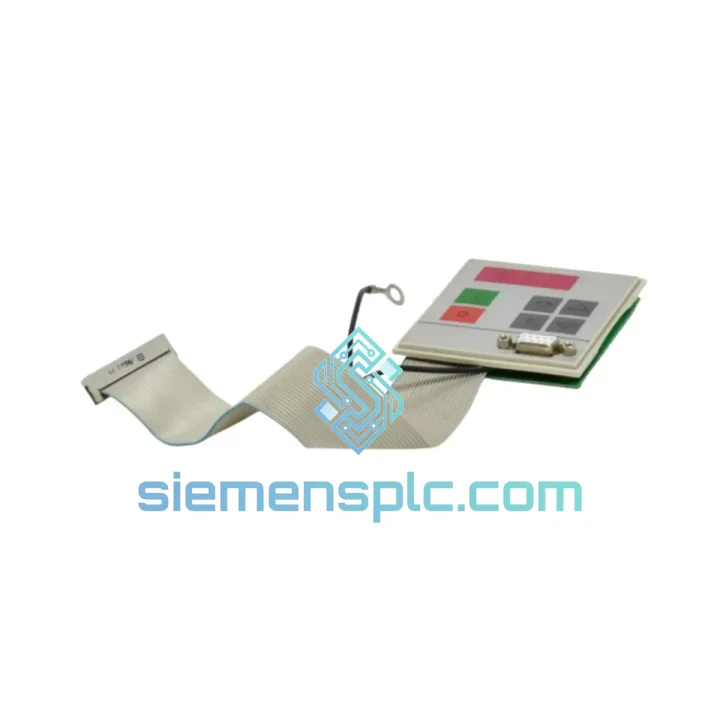

Siemens 6SE7090-0XX84-2FB0 Drive Operator Panel – MASTERDRIVES

Siemens 6SE7090-0XX84-2FB0 PMU Parameterization Unit: On-Drive Parameter Control for MASTERDRIVES MC/VC Inverter Systems

The 6SE7090-0XX84-2FB0 is the factory-standard Parameterization Unit (PMU) for the Siemens MASTERDRIVES MC (Motion Control) and VC (Vector Control) inverter platform. It occupies the dedicated PMU slot on the front panel of all 6SE70xx chassis and compact units, providing direct read/write access to the full drive parameter set without requiring a PC, DriveMonitor software, or any external communication infrastructure. In distributed industrial environments where network access to individual drive cabinets is impractical, the PMU functions as the primary commissioning and diagnostic interface — a self-contained, bus-independent operator terminal embedded in the drive itself.

Unlike higher-level operator panels such as the OP1S (6SE7090-0XX84-0FF0), the PMU is optimized for speed and simplicity: a 5-digit 7-segment LED display presents parameter indices and values in numeric form, and five dedicated function keys (P, ▲, ▼, RUN, STOP/FWD/REV) cover the complete operational workflow from parameter navigation to drive start/stop. The unit draws its operating power directly from the drive’s internal supply rail — no external 24 V DC feed is required — and mounts via a tool-free snap-in mechanism that allows hot-swap replacement in under 60 seconds.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SE7090-0XX84-2FB0 interfaces with the MASTERDRIVES inverter through a proprietary serial backplane link embedded in the PMU slot connector. This link carries both power and bidirectional data on a shared bus, eliminating the need for a separate communication cable and reducing connector count — a deliberate design choice that improves mechanical reliability in high-vibration environments such as rolling mills and compressor stations.

EEPROM-Based Parameter Storage: The PMU contains onboard non-volatile EEPROM memory that can hold a complete drive parameter dataset. During a parameter upload sequence, the PMU reads all writable P-group parameters sequentially from the drive’s internal RAM and writes them to EEPROM. This dataset persists without power, enabling a technician to carry parameter sets between drives physically — a workflow that is particularly valuable when replacing a failed inverter unit in a remote installation where network-based parameter transfer is unavailable.

EMC Design Considerations: The PMU’s signal interface operates at low voltage levels over a short, shielded path within the drive enclosure. The MASTERDRIVES platform is designed to IEC 61800-3 Category C2/C3 EMC requirements, and the PMU slot connector incorporates ground bonding to the drive chassis to prevent differential noise injection into the display and keypad logic. In practice, this means the PMU remains fully functional in environments with significant conducted and radiated interference — including installations adjacent to large motor starters, welding equipment, and high-frequency induction heaters.

Fault and Alarm Code Architecture: The MASTERDRIVES firmware maintains a fault buffer (Fxxx codes) and an alarm buffer (Axxx codes) in drive RAM. The PMU polls these buffers continuously and displays the most recent active code on the 7-segment display without requiring any operator action. This passive monitoring mode allows maintenance personnel to read fault history by scrolling through the buffer using the ▲/▼ keys, providing a chronological fault log without connecting a laptop or accessing the PROFIBUS network.

Local/Remote Control Arbitration: The PMU participates in the MASTERDRIVES control word arbitration logic. When local control is selected via the PMU, the drive’s control word source is switched from the active fieldbus or terminal strip to the PMU keypad. This switchover is implemented in firmware with a defined priority hierarchy, ensuring that a local PMU command cannot inadvertently override a safety-critical stop signal from the PLC — the STOP key on the PMU always retains stop authority regardless of control source selection.

System Integration Benefits

• PC-Independent Commissioning: Full parameter access without DriveMonitor, STARTER, or any PC connection. Reduces commissioning tool dependencies in field service scenarios where laptop access is restricted by site safety rules.
• Sub-60-Second Drive Swap: Parameter upload/download via EEPROM enables complete drive replacement — including full parameter restore — in under one minute, minimizing unplanned downtime on production lines.
• Real-Time Diagnostic Transparency: Continuous fault and alarm code display provides immediate visibility into drive status without opening the cabinet or connecting diagnostic hardware, reducing mean time to diagnosis (MTTD) in fault conditions.
• Deterministic Local Control: The PMU’s local control mode provides a deterministic, latency-free control path independent of fieldbus cycle time, enabling precise manual jog and speed adjustment during mechanical alignment and commissioning.
• Universal 6SE70xx Compatibility: A single PMU model covers the entire MASTERDRIVES MC and VC range — compact and chassis units — eliminating the need to stock multiple operator panel variants for mixed drive fleets.
• No External Power Wiring: Bus-powered design eliminates the 24 V DC auxiliary wiring typically required for external operator panels, reducing cabinet wiring complexity and potential wiring fault points.
• Vibration-Tolerant Mechanical Interface: Tool-free snap-in mounting with positive retention is rated for continuous industrial duty in environments with mechanical vibration, consistent with the MASTERDRIVES platform’s industrial-grade mechanical specification.
• Firmware-Transparent Operation: The PMU operates transparently across all MASTERDRIVES firmware versions within the 6SE70xx series. No firmware update or configuration of the PMU itself is required when used with any compatible drive variant.
• Chronological Fault Buffer Access: Scrollable fault history buffer allows post-event analysis of drive trip sequences without a connected PC, supporting root-cause analysis in installations without continuous SCADA monitoring.
• Reduced Training Overhead: The numeric parameter index interface is consistent across all MASTERDRIVES variants, meaning technicians trained on one 6SE70xx drive can operate the PMU on any other unit in the series without additional training.

Quality Assurance & Global Logistics

Every 6SE7090-0XX84-2FB0 unit supplied by siemensplc.com is sourced as genuine Siemens original equipment. Units are procured through verified supply channels with full part traceability back to Siemens manufacturing. Prior to dispatch, each unit undergoes a physical inspection covering connector pin integrity, keypad actuation response, display segment functionality, and housing condition. Units that do not meet inspection criteria are quarantined and not offered for sale.

Packaging follows ESD-safe protocols: each PMU is individually bagged in anti-static polyethylene, placed in foam-lined rigid cartons, and sealed for transit. For international shipments, cartons are further consolidated into double-wall export boxes with moisture-barrier lining appropriate for sea and air freight conditions.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port — two of China’s primary export hubs for industrial goods. Standard international dispatch is achieved within 1–3 business days of order confirmation. Express air freight options (DHL, FedEx, UPS) are available for urgent requirements, with typical transit times of 3–7 business days to Europe, North America, Southeast Asia, and the Middle East. All shipments include tracking numbers and commercial invoice documentation suitable for customs clearance. A 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions.
