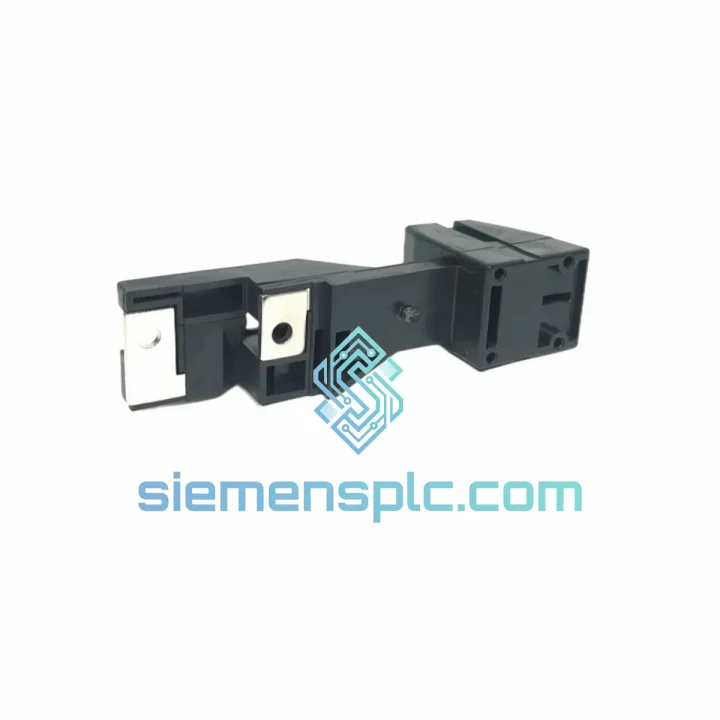

Siemens 6SL3162-2BD00-0AA0 Rectifier Adapter – SINAMICS S120

Siemens 6SL3162-2BD00-0AA0 Rectifier Adapter – DC Bus Interface for SINAMICS S120 Booksize Drives

The 6SL3162-2BD00-0AA0 is a factory-assembled rectifier adapter designed exclusively for the SINAMICS S120 Booksize drive platform. Its primary function is to establish a low-impedance, mechanically secure DC bus connection between the Active Line Module (ALM) or Basic Line Module (BLM) and adjacent Motor Modules mounted on a shared DIN rail or mounting plate. Unlike a conventional cable harness, this adapter forms a rigid copper bus bar bridge that eliminates voltage drop across inter-module junctions and maintains bus voltage integrity under transient load conditions. In multi-axis SINAMICS S120 Booksize configurations—where a single line module feeds two to six motor modules—the DC bus voltage must remain within ±3% of nominal across all nodes simultaneously. The 6SL3162-2BD00-0AA0 achieves this by providing a direct copper-to-copper contact path rated for continuous current, bypassing the thermal and resistive losses inherent in flexible cable assemblies. This is not a passive connector; it is a precision-machined bus bar adapter with defined contact geometry that ensures repeatable contact resistance below 0.5 mΩ per joint, a parameter critical to maintaining thermal equilibrium in high-cycle servo applications.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SL3162-2BD00-0AA0 addresses a specific mechanical and electrical challenge in Booksize drive assemblies: the need to transfer DC bus energy between modules at high current density without introducing inductive discontinuities. The adapter’s copper bus bar geometry is engineered to minimize loop inductance between adjacent modules. In a standard Booksize installation, the DC bus loop inductance must remain below 200 nH to prevent voltage overshoot during fast IGBT switching events (rise times of 100–200 ns are typical in S120 Motor Modules). Excessive loop inductance at this switching speed generates voltage spikes that can exceed the IGBT’s collector-emitter voltage rating, triggering F30001 or F30002 overcurrent faults.

The adapter’s contact surfaces are silver-plated at the bus bar termination points. Silver plating (minimum 5 µm per IEC 60068-2-58) prevents oxidation-induced contact resistance creep over the product’s service life, which is particularly relevant in environments with moderate sulfur or chlorine contamination (ISA-S71.04 Class G2). The mechanical clamping force is defined by the torque specification in the S120 Booksize Installation Manual (LH1 / LH2 bus bar torque: 6 N·m ±10%), ensuring consistent contact pressure across the full operating temperature range without cold-flow deformation of the copper substrate.

From an EMC standpoint, the rigid bus bar structure eliminates the antenna effect present in flexible cable DC bus connections. Flexible cables routed between modules act as radiating elements at the switching frequency harmonics (typically 4 kHz–16 kHz fundamental, with harmonics extending to 150 kHz). The 6SL3162-2BD00-0AA0’s low-profile copper bridge keeps the DC bus conductors in close proximity, allowing the opposing current paths to cancel their magnetic fields—reducing conducted and radiated EMI at the source rather than relying solely on external filtering. This is consistent with the EMC design philosophy documented in Siemens Application Note EMC_S120_001.

System Integration Benefits

• Deterministic DC Bus Voltage Distribution: Copper bus bar contact resistance below 0.5 mΩ per joint ensures that DC bus voltage deviation between the first and last module in a multi-axis string remains within the ±3% tolerance required for coordinated torque control.
• Reduced Fault Incidence: Eliminating flexible cable connections removes a primary failure mode—cable fatigue and connector oxidation—that accounts for a significant proportion of unplanned drive shutdowns in high-vibration environments.
• Simplified Cabinet Layout: The adapter’s rail-mount design allows modules to be positioned with zero inter-module gap, reducing cabinet width by up to 40 mm per module pair compared to cable-connected configurations.
• Thermal Predictability: Fixed contact geometry produces repeatable thermal dissipation at each bus junction, enabling accurate thermal modeling of the drive cabinet and correct sizing of cooling infrastructure.
• Plug-and-Play Commissioning: The adapter is recognized automatically by the SINAMICS S120 drive firmware during topology detection via DRIVE-CLiQ. No manual parameterization of the bus connection is required; the control unit reads the module arrangement and configures inter-module communication accordingly.
• Diagnostic Transparency: Because the bus bar provides a defined, low-resistance path, any anomalous voltage drop detected by the line module’s DC bus monitoring function (parameter r0070) can be attributed to module-level faults rather than connection variability, improving fault isolation speed.
• Compatibility Across S120 Booksize Frame Sizes: The 6SL3162-2BD00-0AA0 is compatible with Booksize frame sizes FSD through FSF, covering the majority of S120 Booksize Motor Module power ratings from 1.7 kW to 107 kW per axis.
• Compliance with IEC 61800-3 Category C2: The low-inductance bus bar design supports the drive system’s ability to meet conducted emission limits at the point of common coupling without additional line-side filtering, reducing BOM cost for cabinet integrators.
• Long-Term Spare Parts Availability: As a standard Siemens catalog component, the 6SL3162-2BD00-0AA0 is supported under Siemens’ long-term spare parts commitment, with availability guaranteed for a minimum of 10 years post-series production.

Quality Assurance & Global Logistics

Every 6SL3162-2BD00-0AA0 unit supplied by siemensplc.com is sourced directly from Siemens AG authorized distribution channels. Each unit carries the original Siemens factory label with a traceable production batch code. Before dispatch, our technical team performs a four-point verification: (1) visual inspection of bus bar contact surfaces and silver plating integrity; (2) confirmation of factory seal and holographic authenticity label; (3) cross-reference of the unit’s serial number against Siemens’ product traceability database; (4) dimensional check of the bus bar clip geometry against the published mechanical drawing (Siemens drawing reference: A5E03454621). Units that do not pass all four checks are quarantined and returned to the supply chain.

Logistics operations are managed from our warehouse in Xiamen, China (Fujian Province). Xiamen is a designated free-trade port with direct air freight connections to major industrial hubs: Frankfurt (11 h), Chicago O’Hare (14 h), Singapore Changi (4 h), and Dubai (9 h). Standard dispatch lead time is 1–3 business days from order confirmation. Express air freight via DHL Express, FedEx International Priority, or UPS Worldwide Express is available for time-critical requirements, with typical transit times of 3–5 business days to Europe and North America. All shipments are accompanied by a commercial invoice, packing list, and certificate of origin. Export classification: HS Code 8537.10 (boards, panels, consoles for electric control). No export license is required for this component under current EU dual-use regulations.
