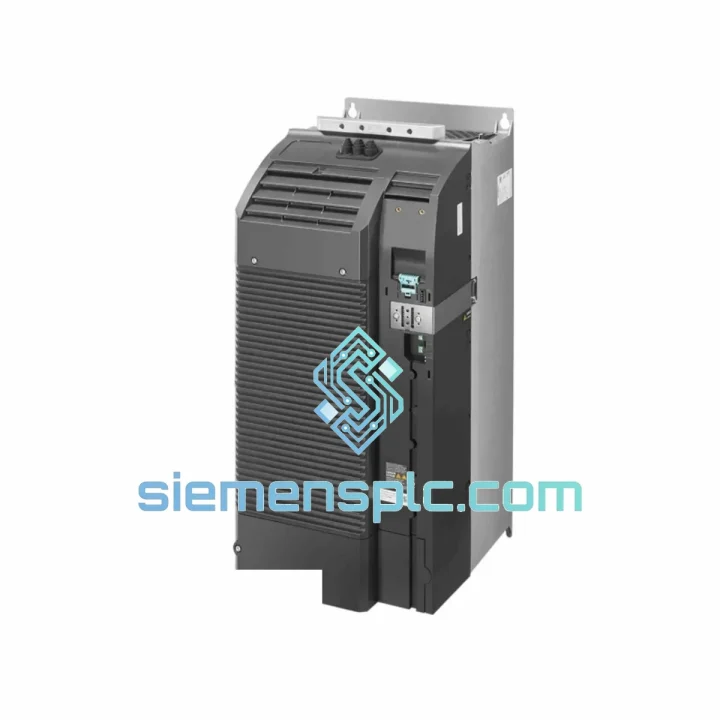

Siemens 6SL3210-1PE31-5UL0 AC Drive Power Module – SINAMICS G120

Siemens 6SL3210-1PE31-5UL0 PM240-2 — 15 kW Variable-Speed Power Stage for SINAMICS G120 Drive Systems

The 6SL3210-1PE31-5UL0 is the 15 kW (20 HP) second-generation power module within Siemens’ SINAMICS G120 modular drive platform. Rated for 380–480 V 3AC input at 31.5 A continuous output current, this unit functions as the dedicated power conversion stage in a split-architecture variable-frequency drive system. It handles AC-to-DC rectification, DC-link energy storage, IGBT-based pulse-width-modulated inversion, and regenerative braking chopper switching — all within a 268 × 140 × 195 mm IP20 enclosure weighing approximately 2.97 kg. The control intelligence resides entirely in a separately mounted Control Unit (CU240B-2, CU240E-2, CU240E-2 F, or CU250S-2), connected via a 24 V DC backplane interface that carries gate-drive commands, thermal telemetry, and fault status in both directions.

In a closed-loop speed or torque control architecture, the PM240-2 occupies the position between the mains supply and the motor terminals. Its role is deterministic: convert three-phase AC at variable grid frequency into a regulated three-phase output whose voltage magnitude and frequency are dictated by the Control Unit’s PWM algorithm. The integrated Class C2 EMC filter (EN 61800-3) suppresses conducted emissions at the mains port, eliminating the need for an external line filter in the majority of industrial cabinet installations. The built-in braking chopper activates when DC-link voltage exceeds the overvoltage threshold during motor deceleration or regenerative load conditions, routing excess energy to an externally connected braking resistor rather than tripping the drive on an overvoltage fault.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PM240-2 power stage is built around a three-phase uncontrolled diode rectifier feeding a capacitor-bank DC link. At 15 kW / 400 V, the DC link operates at approximately 540 V DC under nominal load. The IGBT inverter bridge uses six discrete IGBT modules with integrated freewheeling diodes; gate-drive signals arrive from the Control Unit via the backplane connector at logic-level differential pairs, galvanically isolated from the power stage by optocoupler barriers rated for ≥ 2.5 kV isolation voltage. This optical isolation boundary is the primary EMC defense mechanism: it prevents high-frequency switching transients on the DC link from coupling into the control signal paths.

The integrated Class C2 EMC filter consists of a common-mode choke on the AC input lines combined with X- and Y-class capacitors to PE. The common-mode choke presents high impedance to common-mode noise currents generated by the IGBT switching transitions (dV/dt typically 1–5 kV/µs at 4 kHz pulse frequency), attenuating conducted emissions to levels compliant with EN 55011 Class A limits at the mains terminal. Increasing the pulse frequency to 8 or 16 kHz reduces audible motor noise but increases switching losses and requires output current derating per the characteristic curves in the hardware installation manual.

The braking chopper is a single IGBT switch connected across the DC link in series with the R+/R− terminals. When DC-link voltage rises above the chopper activation threshold (approximately 780 V DC for a 400 V supply), the Control Unit’s firmware activates the chopper gate signal, dissipating regenerative energy in the external resistor. The chopper duty cycle is modulated to maintain DC-link voltage within the safe operating window, preventing nuisance overvoltage trips during rapid deceleration ramps. Thermal protection of the braking resistor is the responsibility of the external resistor’s own thermostat or a PTC input wired to the Control Unit’s digital input.

The backplane interface between PM240-2 and Control Unit carries: (a) 24 V DC auxiliary power from the Control Unit to the PM240-2 fan and gate-drive supply; (b) PWM gate-drive signals for all six IGBTs; (c) DC-link voltage measurement feedback; (d) heatsink NTC temperature signal; and (e) a fault/ready status bit. This five-function interface is the sole electrical connection between the two modules, which is why the PM240-2 retains zero application parameters — all drive configuration data (P-parameters, motor data, fieldbus addresses) resides in the Control Unit’s non-volatile memory and survives a power-module swap without re-parameterization.

System Integration Benefits

• Zero-downtime power-stage replacement: Because all parameterization is stored in the Control Unit, a field technician can swap a failed PM240-2 in under 10 minutes without a laptop or commissioning tool, restoring production without re-entering motor data or PID tuning values.
• Deterministic real-time response: Gate-drive signals from the Control Unit are synchronized to the PWM carrier cycle (250 µs at 4 kHz), ensuring that speed setpoint changes from the PLC are reflected in motor output within one carrier period — critical for tension-control and positioning applications.
• Diagnostic transparency via PROFINET/PROFIBUS: The Control Unit exposes DC-link voltage, output current, heatsink temperature, and active fault codes as process data objects readable by any PROFINET IO controller or PROFIBUS DP master, enabling predictive maintenance dashboards without additional instrumentation.
• Scalable safety integration: Pairing with CU240E-2 F or CU250S-2 enables STO (Safe Torque Off) at SIL 2 / PLd without an external safety relay, reducing panel wiring complexity and achieving EN ISO 13849-1 compliance for machinery directive applications.
• Energy metering capability: The Control Unit can report cumulative kWh consumption via fieldbus, supporting ISO 50001 energy management audits and enabling per-drive energy allocation in multi-drive installations.
• Flexible fieldbus topology: A single PM240-2 hardware platform supports PROFINET, PROFIBUS DP, USS, and Modbus RTU depending on Control Unit selection — no hardware change required to migrate between communication protocols.
• Harmonic mitigation: The six-pulse rectifier front end, combined with the integrated AC line reactor effect of the common-mode choke, limits total harmonic current distortion (THDi) to levels acceptable for most industrial power systems without an additional line reactor in standard installations.
• Thermal headroom management: The NTC heatsink temperature signal fed back to the Control Unit enables automatic pulse-frequency reduction at elevated ambient temperatures, extending drive lifetime by reducing IGBT junction temperature cycling without requiring operator intervention.

Quality Assurance & Global Logistics

Every 6SL3210-1PE31-5UL0 unit supplied by siemensplc.com is sourced as a genuine Siemens OEM product manufactured in Germany. Each unit carries a factory-applied serial number and production date code traceable through Siemens’ internal manufacturing records. Certificates of conformity (CE Declaration of Conformity, UL Certificate of Compliance) are available on request for customs and regulatory documentation purposes.

Pre-shipment inspection at our Xiamen, China facility includes: power-on self-test to verify DC-link charge circuit integrity; visual inspection of IGBT module seating and backplane connector pin condition; verification of fan operation; and confirmation of label data against the purchase order part number. Units that do not pass inspection are quarantined and returned to the supply chain — no refurbished or repaired units are shipped as new.

Packaging follows Siemens OEM specification: anti-static inner bag, molded foam insert, original Siemens carton, and outer double-wall corrugated box rated for international air and sea freight handling. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment to facilitate customs clearance in the destination country. Typical dispatch lead time for in-stock units is 1–3 business days from order confirmation. International delivery via DHL Express (3–5 business days to most destinations), FedEx International Priority, or consolidated sea freight for volume orders. All shipments are fully insured and tracked from Xiamen to the consignee’s door.

A 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Warranty claims are processed by advance replacement where stock permits, minimizing production downtime for the end user.
