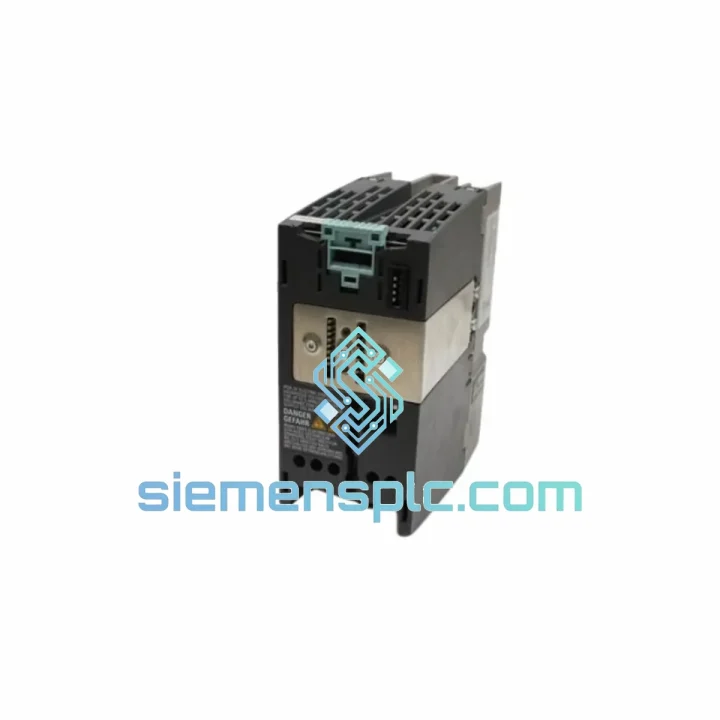

Siemens 6SL3224-0BE34-5UA0 PM240 Power Module

6SL3224-0BE34-5UA0 In Stock — Every Hour of Downtime Costs You Money

Your line stopped. The G120 drive tripped and won’t reset. Maintenance has already swapped the Control Unit — fault still there. You pull the PM240 and the DC bus capacitors are visibly bulged. You need a 6SL3224-0BE34-5UA0 on-site before the next shift, not in three weeks. We stock it in Xiamen. It ships today.

This is not a catalogue listing. This is a field-ready unit, tested, boxed, and waiting for your DHL label. We’ve shipped this exact module to plants in Germany, Malaysia, Mexico, and Saudi Arabia — all on emergency orders. We know what “urgent” means on a production floor.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures on the 6SL3224-0BE34-5UA0:

F30001 / F30002 — DC bus overvoltage / undervoltage: Before condemning the PM240, verify your incoming supply is stable under load. A weak upstream transformer or loose L1/L2/L3 terminal will throw these faults intermittently. If the fault is hard (won’t clear on power cycle), measure DC bus voltage directly at the PM240 terminals — anything outside 510–720 VDC at 400 V input points to internal rectifier or capacitor failure. Replace the module.

F30004 — Inverter overtemperature: The PM240 frame size FSE has a single internal fan. Fan bearing failure is the #1 cause of thermal shutdown on units over 3 years old. You’ll hear it before the fault trips — a low-frequency rumble at startup. If the fan is seized, the module will derate and eventually trip within 20–40 minutes of full-load operation. Fan replacement is possible but not field-practical; module swap is faster.

F30021 — Ground fault detected: The PM240 has internal ground fault monitoring. This fault fires when motor cable insulation breaks down, not always when the module itself fails. Disconnect the motor cables at the PM240 output terminals (U2/V2/W2) and attempt a no-load run. If F30021 clears, your motor or cable is the culprit. If it persists with no load connected, the PM240 output stage is compromised — swap the module.

Replacement procedure — field checklist:

• Power down, lock out, verify zero voltage on DC bus (wait minimum 5 minutes — the 45 kW frame holds charge longer than smaller units).
• Photograph all terminal connections before disconnecting. L1/L2/L3 input, U2/V2/W2 output, PE, and the Drive-CLiQ ribbon to the Control Unit.
• The CU snaps off the PM240 via the top latch — do not force it. Release the latch, slide the CU forward, then lift. The Drive-CLiQ connection separates automatically.
• On the replacement PM240, verify the firmware version label on the module matches or is newer than the original. Mismatched firmware between PM and CU can cause A01590 (firmware mismatch alarm) on first power-up — not a fault, but it will prompt a firmware update via STARTER or TIA Portal.
• Re-mount the original CU onto the new PM240. All parameters stored in the CU are retained — no re-commissioning required if the CU is undamaged.
• Torque input terminals to 6 Nm, output terminals to 6 Nm, PE to 6 Nm. Under-torqued terminals on a 45 kW drive will arc under load within weeks.
• Power up. Check for A01590 (firmware) or F01018 (CU/PM incompatibility). If clean, run a motor identification (P1910 = 1) if the motor data was never properly set — this is often skipped during emergency swaps and causes nuisance trips later.

DIP switch / addressing note: The PM240 has no user-accessible DIP switches. All addressing and configuration is handled through the Control Unit. If you’re replacing a PM240 in a multi-drive cabinet where drives share a common DC bus, confirm the DC bus link bars are rated for the combined current — the 45 kW frame draws up to 89 A continuous.

Reliability in Harsh Conditions

The PM240 FSE frame was designed for panel installation in industrial environments, not climate-controlled server rooms. Siemens validates this module against IEC 60068-2 environmental test standards — vibration up to 1.5 mm displacement at 10–58 Hz, shock resistance to 15 g / 11 ms half-sine, and operating temperature from -10°C to +50°C (derated above 40°C at 2.5% per degree).

In practice, we’ve seen these modules pulled from cement plant control panels running at 45°C ambient with no derating applied — and they’ve run for years. The forced-air cooling path is the weak point: the inlet filter on the panel door must be cleaned quarterly in dusty environments. A blocked filter raises internal temperature by 8–12°C, which cuts capacitor life by half.

Humidity tolerance is rated to 95% RH non-condensing. In coastal or tropical installations, condensation during plant shutdowns is the real risk. If your plant goes cold overnight, fit anti-condensation heaters in the panel. A failed PM240 from moisture ingress is not covered under warranty — and it’s entirely preventable.

The DC bus capacitors in the 45 kW frame are the primary wear component. Under normal operating conditions (40°C, 80% load, 20 starts/day), expect 8–12 years of service life. Frequent starts, high ambient temperature, and voltage spikes all accelerate aging. If your plant has a history of supply-side transients, fit a line reactor upstream — the 6SL3203-0BE32-5AA0 is the matched Siemens option for this frame.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct DHL and FedEx gateway access. For emergency orders confirmed before 14:00 CST, same-day dispatch is standard.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand, Vietnam): DHL Express — 1–2 business days
• Middle East (UAE, Saudi Arabia, Qatar): FedEx International Priority — 2–3 business days
• Europe (Germany, Netherlands, Poland, UK): DHL Express — 3–4 business days
• North America (USA, Canada, Mexico): FedEx IP — 3–5 business days
• South America (Brazil, Chile, Colombia): DHL Express — 4–6 business days
• Australia / New Zealand: DHL Express — 3–4 business days

Every shipment includes a commercial invoice with accurate HS code (8504.40), packing list, and certificate of origin. For customers requiring import clearance support, we provide pre-shipment documentation within 2 hours of order confirmation. Dangerous goods classification does not apply to this module — no lithium batteries, no hazmat — which means no airline restrictions and no freight surcharges beyond standard express rates.

For orders of 3 units or more, we recommend DHL Economy Select or FedEx International Economy to reduce freight cost without significantly extending lead time. Contact us for a freight quote before checkout on bulk orders.

All units are packed in anti-static foam-lined export cartons with corner protection. The PM240 FSE frame is sensitive to mechanical shock during transit — we do not use loose fill or bubble wrap alone. Every box is drop-tested before dispatch.

Contact Information

Reach our technical sales team directly — no call centers, no ticket queues. You’ll speak with someone who knows the G120 platform.

Email: [email protected]
WhatsApp: +86 18359268345
