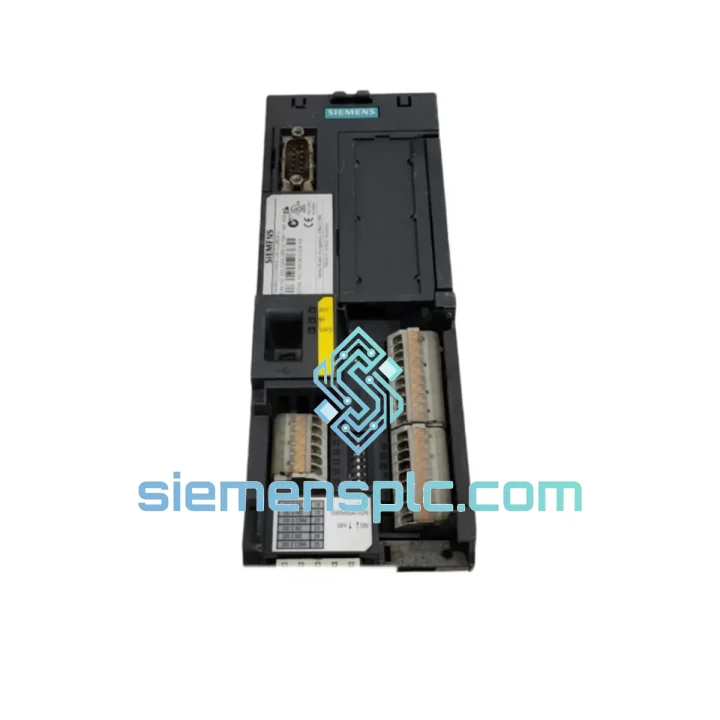

Siemens 6SL3244-0BB12-1BA1 Drive Control Unit – SINAMICS G120

Siemens 6SL3244-0BB12-1BA1 CU240E-2: Fieldbus-Integrated Control Intelligence for SINAMICS G120 Drive Systems

The Siemens 6SL3244-0BB12-1BA1 is the CU240E-2 variant of the SINAMICS G120 Control Unit family — a dedicated drive controller engineered for applications where USS and MODBUS RTU serial communication must coexist with integrated functional safety. Within the G120 modular architecture, the Control Unit carries the full computational burden of the drive: it executes the closed-loop vector control algorithm, manages all fieldbus transactions, arbitrates I/O signal conditioning, and enforces the STO (Safe Torque Off) safety function independently of the Power Module. The Power Module itself contains no intelligence; it is the CU240E-2 that determines whether a motor runs, at what speed, and under what safety constraints.

This unit occupies a deliberate position in the G120 lineup. Below it sits the CU240B-2, which omits safety terminals and offers fewer I/O channels. Above it sits the CU240E-2 DP, which adds PROFIBUS DP at the cost of higher infrastructure investment. The 6SL3244-0BB12-1BA1 is the correct selection for facilities running RS-485 serial networks — water treatment plants using SCADA over MODBUS, OEM machine builders integrating with third-party PLCs via USS, or retrofit projects where PROFIBUS infrastructure does not exist and is not planned.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CU240E-2 is built around a 32-bit fixed-point DSP core executing the SINAMICS G120 firmware stack. The control cycle runs at a base sampling rate of 125 µs for the current controller and 1 ms for the speed controller — figures that define the drive’s dynamic response ceiling. Understanding the hardware architecture clarifies why this unit performs reliably in demanding industrial environments.

Backplane Communication Bus: The CU240E-2 interfaces with the Power Module via a proprietary high-speed serial backplane connector. This link carries the PWM setpoint, actual DC-link voltage measurement, IGBT temperature feedback, and fault status in a deterministic, cycle-synchronous manner. The physical separation of control and power electronics — a defining feature of the G120 modular concept — means the CU240E-2 can be replaced under a controlled shutdown without disturbing the Power Module’s wiring or thermal management hardware.

EMC Design and Signal Isolation: All six digital inputs are optocoupler-isolated with a minimum isolation voltage of 500 V AC. The analog input channels use differential measurement with a common-mode rejection ratio (CMRR) exceeding 60 dB at 50/60 Hz, which suppresses ground-loop interference common in long cable runs across industrial facilities. The RS-485 transceiver for USS/MODBUS is protected against ±15 kV ESD events (IEC 61000-4-2 Level 4) and includes bus termination resistor switching via firmware parameter P2020, eliminating the need for external termination hardware at line ends.

STO Safety Circuit Architecture: The Safe Torque Off function is implemented via a dual-channel hardware path that bypasses the DSP entirely. When the STO terminals (EP+ and EP−) are de-energized, two independent gate-driver enable signals are simultaneously cut, preventing IGBT firing regardless of the firmware state. This architecture satisfies the requirement for independence between the safety function and the standard control path, which is the basis for the SIL 2 / PLd certification. The proof-test interval (PTI) for the STO function is 8,760 hours (1 year), consistent with EN 62061 requirements for SIL 2 systems.

Parameter Storage and Non-Volatile Memory: Drive parameters are stored in internal EEPROM with a write endurance of 100,000 cycles. The SD card slot provides a secondary storage path for parameter sets, firmware images, and trace data. Parameter cloning via SD card executes without a PC connection — the operator inserts a pre-programmed card, navigates to P0010/P0970 via BOP-2, and the unit reads and applies the parameter set within approximately 90 seconds. This mechanism is particularly valuable for multi-drive commissioning and field replacement scenarios where STARTER or TIA Portal access is not available.

System Integration Benefits

• Deterministic MODBUS RTU Polling: The RS-485 port supports baud rates from 4,800 to 57,600 bps with configurable parity and stop bits. Response latency from MODBUS request receipt to register data transmission is ≤ 5 ms at 19,200 bps, enabling reliable integration into SCADA polling cycles of 100 ms or faster without missed responses.
• USS Multi-Drop Topology: Up to 31 CU240E-2 units can share a single RS-485 USS bus segment, each addressed independently via P2011. This reduces fieldbus cabling cost significantly in multi-drive installations such as conveyor systems or pump stations with parallel drive banks.
• Integrated PID Controller: The onboard PID function block (P2200 group) accepts a process variable from AI1 and a setpoint from the fieldbus or AI2, eliminating the need for an external PLC loop for single-variable process control. Derivative filter time, integral anti-windup, and output limiting are all configurable without external hardware.
• Fault and Warning Transparency: The CU240E-2 maintains a fault history buffer of the last 8 fault events with timestamps, fault values (r0949), and fault codes (r0945). All fault and warning states are mappable to digital outputs or transmitted over MODBUS/USS, enabling upstream SCADA or PLC systems to log drive health data without operator intervention.
• Flying Restart Function: Parameter P1200 enables the drive to synchronize to a spinning motor without a full stop-and-restart sequence. This is critical in fan and pump applications where the load inertia keeps the motor rotating after a power interruption, preventing the overcurrent trip that would otherwise occur on a direct re-energization.
• Motor Data Identification (MDS): The automatic motor identification routine (P1910) measures stator resistance, rotor resistance, leakage inductance, and magnetizing inductance at standstill, then writes optimized control parameters to the vector controller. This eliminates manual motor data entry errors and compensates for motor parameter drift over service life.
• Kinetic Buffering: During brief supply voltage dips (P1240 group), the drive extracts kinetic energy from the rotating load to maintain the DC-link voltage above the undervoltage threshold, sustaining operation through interruptions of up to several hundred milliseconds depending on load inertia. This prevents nuisance trips in facilities with unstable grid supply.
• Scalable Safety Without External Relays: The integrated STO function eliminates the external safety relay module that would otherwise be required between the E-stop circuit and the drive enable input. For a 10-drive installation, this removes 10 relay modules, associated wiring, and periodic relay contact testing from the safety maintenance schedule — a measurable reduction in panel complexity and lifecycle cost.

Quality Assurance & Global Logistics

Every Siemens 6SL3244-0BB12-1BA1 unit dispatched from our Xiamen facility is sourced through verified supply channels and processed through a structured pre-shipment inspection protocol. Authenticity is confirmed by cross-referencing the unit’s serial number against Siemens product traceability records and inspecting the holographic security label, firmware version string, and housing mold markings — all of which carry production-batch-specific characteristics that distinguish genuine Siemens hardware from aftermarket substitutes.

Physical inspection covers connector pin alignment, housing parting-line quality, and label adhesion. Where test equipment is available, the RS-485 port is verified for correct differential output voltage (1.5 V minimum per EIA-485 specification) and the 24 V backplane supply rail is checked for correct regulation. Units are packed in anti-static ESD bags, placed in foam-lined cartons, and sealed with moisture-barrier desiccant packs rated for 30-day ocean freight exposure.

Shipments from Xiamen reach major industrial hubs on the following typical transit schedules: Southeast Asia 3–5 days, Middle East 5–7 days, Europe 7–12 days, North America 7–14 days. Express courier options (DHL, FedEx, UPS) are available for urgent requirements. All shipments include a commercial invoice, packing list, and certificate of conformity. HS code 8537.10 is applied for customs classification. A 12-month warranty covers manufacturing defects from the date of shipment.
