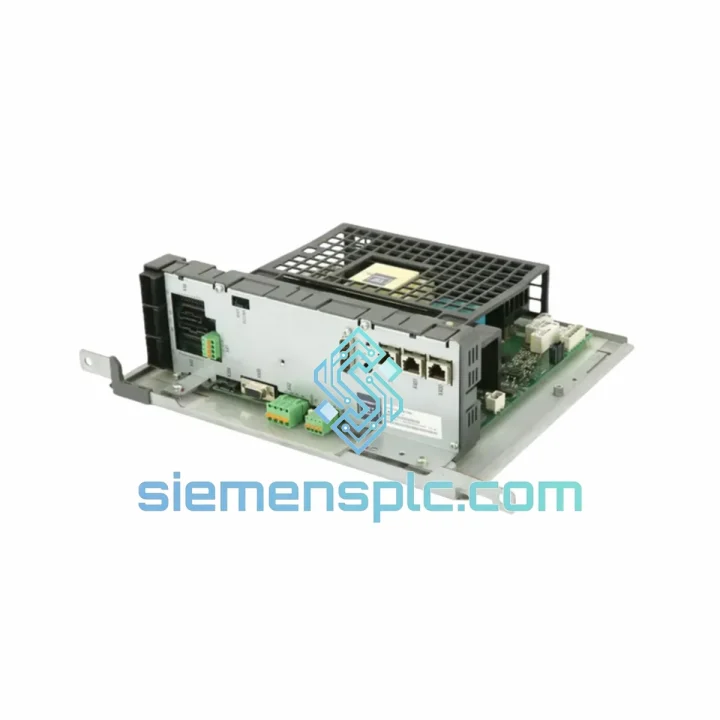

Siemens 6SL3350-6TK00-0EA0 Control Interface Module – SINAMICS S120

Siemens 6SL3350-6TK00-0EA0 — SINAMICS S120 Control Interface Module in Multi-Axis Drive Architectures

The Siemens 6SL3350-6TK00-0EA0 is the Control Interface Module (CIM) within the SINAMICS S120 drive platform, engineered to serve as the deterministic communication backbone between a supervisory CNC or motion controller and the distributed power electronics of a multi-axis drive cabinet. Unlike a conventional gateway, the CIM does not merely translate protocol frames — it participates actively in the isochronous real-time (IRT) cycle of the DRIVE-CLiQ topology, maintaining sub-millisecond synchronization across all connected Motor Modules and encoder feedback channels. In high-axis-count systems — such as a 5-axis machining center or a 12-axis robotic welding cell — this determinism is the architectural prerequisite for contour accuracy and coordinated torque delivery.

The module occupies a structurally critical position in the S120 booksize cabinet: it interfaces upstream to the SINUMERIK 840D sl or SIMOTION D controller via the NCU/CX32 backplane, and downstream to each Motor Module’s DRIVE-CLiQ port. Every encoder signal, every current setpoint, and every fault telegram passes through this node. Its internal FPGA-based arbitration logic ensures that the IRT clock domain is maintained even under transient bus load conditions, preventing the axis-to-axis phase drift that would otherwise manifest as contouring error at the workpiece.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SL3350-6TK00-0EA0 implements several hardware-level design decisions that distinguish it from generic drive interface boards:

DRIVE-CLiQ Isochronous Real-Time Arbitration: The CIM hosts the master clock node for the DRIVE-CLiQ ring. Its internal oscillator is disciplined to the NCU’s system clock via a phase-locked loop (PLL), achieving clock synchronization accuracy of ±1 µs across all downstream nodes. This eliminates the accumulated jitter that would otherwise degrade interpolation quality in multi-axis contouring. The arbitration logic is implemented in dedicated silicon (FPGA), not in firmware running on a general-purpose processor, which means clock maintenance is immune to software interrupt latency.

Optical Isolation on Digital I/O Paths: All digital input and output signals routed through the CIM’s interface connectors pass through optocoupler stages rated at 2.5 kV isolation voltage. This galvanic barrier prevents ground loop currents — common in large drive cabinets where motor frame grounds and control commons diverge by tens of volts — from corrupting the logic-level signals that carry encoder position data and safety relay states.

EMC Shielding Architecture: The module’s PCB stack uses a dedicated ground plane layer interleaved between the high-frequency DRIVE-CLiQ signal traces and the 24 VDC power distribution layer. Ferrite beads are placed at each connector entry point to suppress common-mode noise in the 10–100 MHz band, which is the primary emission range of PWM switching transients from adjacent Motor Modules. This design allows the CIM to maintain signal integrity even when mounted within 50 mm of a 30 kW Motor Module operating at 4 kHz switching frequency.

Redundant Watchdog Architecture: The CIM implements a two-tier watchdog: a hardware watchdog timer that resets the communication controller if the IRT frame sequence is interrupted for more than 3 consecutive cycles, and a software watchdog in the drive firmware that monitors the health of each downstream Motor Module. If a Motor Module fails to respond within the configured timeout, the CIM issues a coordinated coast-stop command to all axes simultaneously, preventing mechanical damage from unsynchronized deceleration.

Thermal Management: The module’s power dissipation is approximately 8 W under full load. Heat is conducted via a copper spreader plate to the cabinet’s forced-air cooling channel. The internal NTC thermistor reports junction temperature to the drive firmware at 1 Hz, enabling predictive thermal derating before the hardware over-temperature threshold (85 °C) is reached.

System Integration Benefits

• Deterministic IRT cycle synchronization: The 125 µs IRT cycle maintained by the CIM’s FPGA clock master ensures that all axis position setpoints are applied within the same interpolation window, eliminating inter-axis phase error in coordinated motion profiles.
• Automatic motor and encoder identification: DRIVE-CLiQ carries electronic nameplate data from each connected motor and encoder. The CIM reads this data at power-up and configures the corresponding Motor Module parameters automatically, reducing commissioning time from hours to minutes on a multi-axis system.
• Transparent fault propagation: Every fault event — from an encoder signal loss to a Motor Module over-current — is timestamped at the CIM with microsecond resolution and forwarded to the NCU’s diagnostic buffer. This allows maintenance engineers to reconstruct the exact sequence of events leading to a trip without relying on external data loggers.
• Safety Integrated channel routing: The CIM routes the Safety Integrated (SI) communication channel between the NCU and each Motor Module’s safe pulse cancellation circuit. This enables STO (Safe Torque Off) and SS1 (Safe Stop 1) functions to be executed without removing 24 VDC control power, preserving the drive’s ability to restart after a safety event without a full power cycle.
• Scalable topology without additional hardware: A single 6SL3350-6TK00-0EA0 can interface with up to 14 DRIVE-CLiQ nodes (Motor Modules, encoder modules, or terminal modules) in a daisy-chain or star topology, eliminating the need for additional hub hardware in systems with up to 14 axes.
• Firmware-independent hardware diagnostics: The CIM’s FPGA logic continuously monitors DRIVE-CLiQ signal quality (eye diagram margin, CRC error rate) and reports degradation to the drive firmware before a hard communication fault occurs. This allows planned maintenance of cable connections before an unplanned production stop.
• Seamless SINUMERIK / SIMOTION integration: The CIM is recognized natively by STARTER, SCOUT, and SINUMERIK Operate commissioning tools. No third-party configuration software or protocol converters are required, and all axis parameters are stored in the NCU’s non-volatile memory for rapid replacement.
• Reduced cabinet wiring complexity: By consolidating the control interface for all axes into a single module with a standardized DRIVE-CLiQ daisy-chain, the CIM eliminates the parallel wiring harnesses that would otherwise be required for encoder feedback, setpoint distribution, and safety relay circuits — reducing cabinet assembly time and the probability of wiring errors.

Quality Assurance & Global Logistics

Every Siemens 6SL3350-6TK00-0EA0 unit dispatched from our Xiamen, China facility undergoes a documented pre-shipment protocol:

• Visual inspection of PCB, connectors, and housing for mechanical damage or counterfeit indicators
• Verification of Siemens factory serial number and date code against the product label
• Functional power-on test confirming DRIVE-CLiQ port activity and 24 VDC supply acceptance
• Original Siemens packaging preserved where available; ESD-safe anti-static bags and foam-lined cartons used for all shipments
• Export documentation prepared in compliance with CN customs regulations and destination country import requirements
• DHL Express, FedEx International Priority, and UPS Worldwide Express available — typical transit time 3–7 business days to Europe, North America, and Southeast Asia
• 12-month warranty from shipment date; DOA replacement dispatched within 48 hours upon confirmation
• Batch traceability records retained for 5 years to support customer audit requirements
