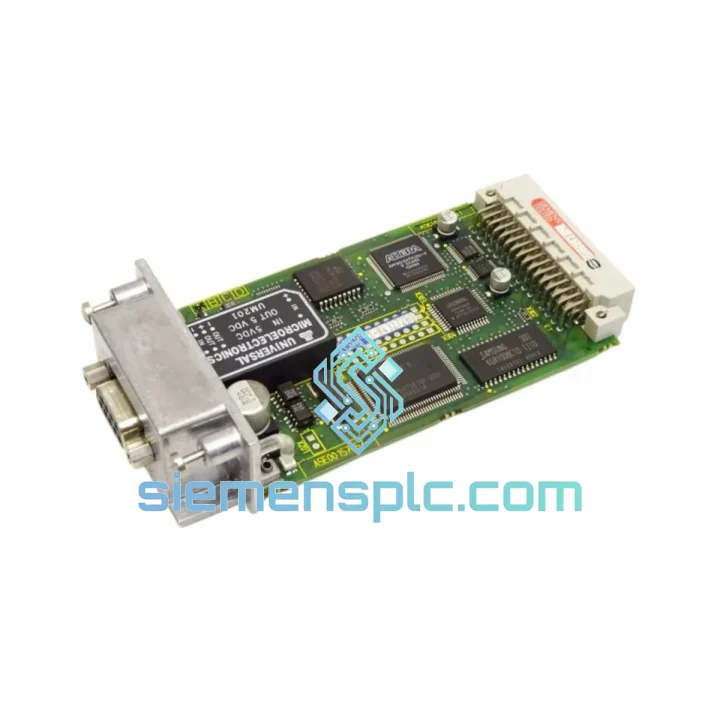

Siemens 6SN1118-0DH21-0AA1 CNC Drive Control Unit

Siemens 6SN1118-0DH21-0AA1 — Stop the Clock on Your Downtime. Ship Today.

Every minute a CNC axis is down, the losses compound — scrapped parts, idle operators, missed delivery windows, and a plant manager breathing down your neck. The Siemens 6SN1118-0DH21-0AA1 SIMODRIVE 611-D dual-axis digital control unit is the exact module that brings your spindle or feed axis back online. We stock it in Xiamen. We ship it today. That’s the only thing that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Pulled from real field experience. These are the failure modes and swap pitfalls that catch engineers off guard on the 6SN1118-0DH21-0AA1:

1. Alarm 300500 / 300502 — Encoder Fault on Axis X or Y
Nine times out of ten this is the control unit’s encoder evaluation circuit, not the motor encoder itself. Before condemning the encoder cable, swap the CU first. If the alarm follows the slot, the 6SN1118-0DH21-0AA1 is your culprit. Check the encoder connector pins for fretting corrosion — a common failure on machines with high vibration cycles.

2. Alarm 380500 — Drive Not Ready / Communication Fault
This alarm fires when the drive bus handshake between the CU and the NCU fails. After installing the replacement module, power-cycle the entire drive group — do not hot-swap. The 611-D bus requires a clean initialization sequence. If the alarm persists, verify the drive bus termination plug is seated on the last module in the chain.

3. Firmware Version Mismatch
The -0AA1 revision carries a different firmware baseline than the -0AA0. If you are replacing an -0AA0 with this -0AA1, re-upload your axis parameter set via STARTER or SIMATIC S7 after installation. Do not assume the factory defaults match your machine’s tuning. Axis gains, filter settings, and encoder resolution parameters must be re-entered from your backup file (p0-file or .dxd archive).

4. Drive Address / Slot Assignment
The SIMODRIVE 611-D uses physical slot position on the drive bus backplane to determine drive address. The replacement CU must be inserted into the exact same slot as the failed unit. Inserting it into a different slot will cause the NCU to report a topology mismatch alarm (840D: Alarm 26010). Do not rearrange modules during a hot swap.

5. Axis Parameter Backup — Do It Before You Pull the Old Module
If the failed CU still powers up partially, connect STARTER and export the axis parameter set immediately. Even a partially functional module can yield a readable parameter backup. This saves 2–4 hours of manual re-commissioning on the bench.

6. 24 V Logic Supply Check
A failed CU can drag down the 24 V bus and cause cascading alarms across adjacent modules. Before assuming multiple modules have failed, measure the 24 V rail at the NE module output. If it is below 22 V under load, the CU’s internal short may be the root cause — not a systemic power supply failure.

Reliability in Harsh Conditions

The SIMODRIVE 611-D platform was engineered for the machine tool floor, not a climate-controlled server room. The 6SN1118-0DH21-0AA1 control unit is built to operate continuously in environments that would degrade lesser electronics:

Vibration Resistance: The PCB assembly uses conformal coating and through-hole component anchoring on high-mass components. Connector housings are latched and keyed to resist vibration-induced fretting. Machines running 24/7 with spindle imbalance or coolant pump vibration transmit constant mechanical stress — this module is rated for it.

Thermal Cycling: Industrial cabinets see wide temperature swings between cold morning startups and full-load afternoon production. The 611-D CU’s thermal design accommodates 0–55 °C operating range with derating curves documented in the Siemens commissioning manual. Electrolytic capacitors are rated for extended service life at elevated temperatures — a known weak point on competing platforms.

EMI & Electrical Noise: The module’s signal processing circuitry is shielded against the high-frequency switching noise generated by adjacent power modules in the 611 drive bus. Encoder signal conditioning includes differential line receiver circuits that reject common-mode noise — critical in environments with large VFDs, welding equipment, or induction heaters nearby.

Humidity & Contamination: While rated IP20 (cabinet-mount), the PCB coating provides a baseline defense against condensation events and airborne metallic dust — a real concern in grinding and turning applications. Ensure cabinet door seals are intact and filter mats are serviced on schedule to protect the module’s rated service life.

Global Express Logistics

We operate from Xiamen, China — one of the country’s primary export hubs with direct access to international freight lanes. When you place an urgent order for the 6SN1118-0DH21-0AA1, here is exactly what happens:

Same-Day Dispatch: Orders confirmed before 15:00 CST are packed and handed to the carrier the same business day. The module ships in anti-static packaging inside a foam-lined carton with humidity indicator card. No exceptions for urgent orders.

Carrier Options: We ship via DHL Express, FedEx International Priority, and UPS Worldwide Express. For most destinations in Europe, Southeast Asia, and North America, transit time is 2–4 business days door-to-door. Middle East and South America typically 3–5 business days.

Customs Documentation: Full commercial invoice, packing list, HS code declaration (HS 8537.10 / 8504.40 as applicable), and Certificate of Origin are prepared with every shipment. We have handled export documentation for customers in Germany, Italy, South Korea, India, Brazil, and the UAE — no surprises at customs.

Tracking & Communication: You receive a tracking number within 2 hours of dispatch. For production-critical shipments, our team monitors the consignment and proactively flags any carrier delays. If a shipment is held at customs, we provide the documentation support to clear it fast.

Emergency Freight: For situations where even 48 hours is too long, contact us directly on WhatsApp. We can arrange next-flight-out courier options for select destinations. This is not a standard service — it is a last resort for genuine production emergencies, and we treat it that way.
