Siemens 6SN1118-0DM21-0AA0 Drive Controller Module – SIMODRIVE 611

Siemens 6SN1118-0DM21-0AA0 — Closed-Loop Axis Control Intelligence for SIMODRIVE 611 Drive Systems

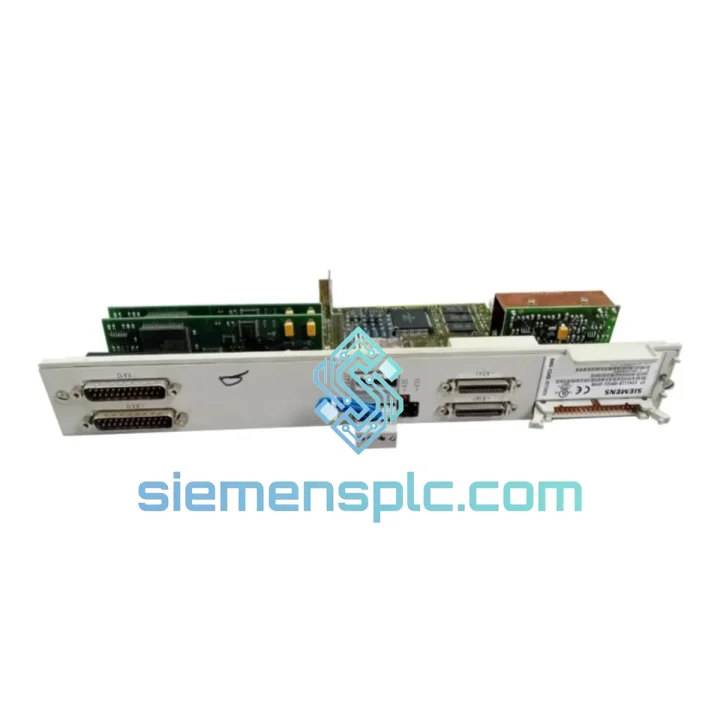

The Siemens 6SN1118-0DM21-0AA0 is the axis control board (Regelungseinschub) for the SIMODRIVE 611 modular servo drive platform. Its function within the drive system is unambiguous: it executes the closed-loop current and speed regulation algorithms that govern torque delivery and positional accuracy on feed and spindle axes in CNC machine tools. Without this board, the power module is electrically inert — it cannot respond to setpoint commands, process encoder feedback, or communicate with the SINUMERIK CNC controller. This is not a peripheral accessory; it is the computational core of the drive unit.

The SIMODRIVE 611 platform was engineered by Siemens for high-dynamic servo applications where deterministic response times and sub-millisecond current regulation cycles are non-negotiable. The 6SN1118-0DM21-0AA0 specifically targets dual-axis configurations, managing two independent servo channels from a single board footprint — a design choice that reduces backplane slot consumption and simplifies cabinet layout in multi-axis machining centers. It interfaces directly with the SINUMERIK 840D/810D via the internal SIMODRIVE drive bus, a synchronous serial link operating at a fixed clock rate that ensures cycle-accurate setpoint transfer between the NC kernel and the drive’s DSP.

The board’s encoder interface accepts both incremental TTL signals (1 Vpp sinusoidal or square-wave) and absolute encoder protocols, enabling deployment across a wide range of Siemens 1FT6, 1FK7, and 1PH7/1PH8 motor families without external signal conditioning hardware. Encoder data is processed at the DSP level within each current regulation cycle, ensuring that position feedback latency does not introduce phase lag into the velocity control loop — a critical requirement in high-speed contouring applications where following error budgets are measured in micrometers.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SN1118-0DM21-0AA0 is built around a fixed-point DSP architecture that executes the field-oriented control (FOC) algorithm — also referred to as vector control — for permanent-magnet synchronous motors (PMSM) and induction spindle motors. The FOC implementation decouples the flux-producing (d-axis) and torque-producing (q-axis) current components in the rotating reference frame, allowing independent regulation of each. This decoupling is what enables the SIMODRIVE 611 to deliver rated torque from zero speed without the thermal runaway risk associated with scalar V/f control strategies.

EMC Design Architecture: The board employs a multi-layer PCB with dedicated ground planes separating the analog encoder signal conditioning circuitry from the digital DSP and communication logic. Optocoupler isolation barriers are placed at all external signal entry points — encoder inputs, enable signals, and the drive bus interface — with a minimum isolation voltage of 500 V DC. Ferrite bead filtering is applied to the +5 V supply rail at the board edge connector to suppress high-frequency conducted emissions from the backplane. This layered approach ensures the board meets EN 61800-3 Category C2 conducted and radiated emission limits without external filtering hardware.

Encoder Signal Processing: The analog encoder input path uses a differential receiver with a common-mode rejection ratio (CMRR) exceeding 60 dB at 1 MHz, which is essential in cabinet environments where long encoder cables run parallel to motor power conductors. The 1 Vpp sinusoidal signals are interpolated internally by the DSP to achieve position resolution significantly finer than the encoder’s native line count — a technique that allows standard 2048-line encoders to deliver sub-micron position feedback without hardware interpolation modules.

Drive Bus Communication: The SIMODRIVE drive bus is a synchronous serial interface clocked by the SINUMERIK NCU. The 6SN1118-0DM21-0AA0 operates as a bus slave, latching setpoint data (speed reference, torque limit, enable bits) at the start of each NC interpolation cycle and returning actual values (speed, current, fault status) within the same cycle window. The fixed-latency, deterministic nature of this exchange is what allows the SINUMERIK 840D to implement cross-axis interpolation with nanometer-level path accuracy — the NC kernel knows exactly when each drive has acted on its setpoint.

Fault Detection Logic: The board implements hardware-level overcurrent detection with a response time of less than 10 µs — faster than any software interrupt handler. On detection, the board asserts a hardware enable kill signal that disables the IGBT gate drivers in the power module within one switching period, preventing shoot-through and protecting both the power semiconductors and the connected motor winding. Simultaneously, a fault code is latched in the board’s non-volatile status register and transmitted to the SINUMERIK for display and logging.

System Integration Benefits

• Deterministic Dual-Axis Synchronization: Both servo channels on the 6SN1118-0DM21-0AA0 share a common DSP clock and are regulated within the same current loop cycle, ensuring zero phase offset between axes — a prerequisite for gantry synchronization and electronic gearing applications.
• Reduced Cabinet Footprint: Dual-axis architecture halves the number of control boards required in multi-axis systems, directly reducing cabinet width, wiring complexity, and heat dissipation per axis.
• Native SINUMERIK 840D/810D Compatibility: No gateway hardware, no protocol converters. The board communicates directly on the SIMODRIVE drive bus, preserving the full diagnostic transparency of the SINUMERIK HMI — including real-time servo trace, drive optimization, and axis-specific alarm text.
• Plug-In Field Replacement: The Regelungseinschub form factor allows the control board to be extracted and replaced without disturbing the power module wiring, DC bus connections, or motor cables. Mean time to repair (MTTR) in a trained maintenance environment is under 30 minutes.
• Broad Motor Compatibility: Supports Siemens 1FT6 (synchronous servo), 1FK7 (compact servo), 1PH7/1PH8 (induction spindle), and third-party motors with compatible encoder interfaces — reducing spare parts inventory complexity across mixed-motor installations.
• Integrated Diagnostic Transparency: Onboard LED indicators provide immediate visual status for drive enable, ready state, and fault condition without requiring connection to the SINUMERIK HMI — useful during commissioning and field troubleshooting when the CNC may not be powered.
• Parameter Non-Volatility: Drive parameters are stored in the SINUMERIK NCU, not on the control board itself. Board replacement does not require re-parameterization — the NCU downloads the axis dataset to the new board automatically on power-up, eliminating the risk of parameter transcription errors during maintenance.
• Scalable System Architecture: The SIMODRIVE 611 modular design allows the 6SN1118-0DM21-0AA0 to be deployed in systems ranging from 2-axis lathes to 31-axis machining centers without architectural changes — the same board type, the same commissioning procedure, the same spare part across the entire machine population.
• Thermal Management Compatibility: The board’s power dissipation profile is matched to the SIMODRIVE 611 cabinet cooling design (forced-air or liquid-cooled variants), ensuring thermal margins are maintained at rated continuous current without derating.

Quality Assurance & Global Logistics

Every Siemens 6SN1118-0DM21-0AA0 unit dispatched from our Xiamen facility is sourced exclusively from verified Siemens-authorized distribution channels or factory-surplus inventory with full traceability documentation. We do not handle counterfeit, remarked, or unverified-origin components. Each unit undergoes a structured pre-shipment inspection protocol:

• Visual Inspection: PCB surface examination for solder joint integrity, component seating, and absence of physical damage or corrosion on connector pins and edge contacts.
• Label & Marking Verification: Part number, date code, and Siemens production markings are cross-referenced against Siemens AG documentation to confirm authenticity.
• Functional Bench Test (where applicable): Units are powered in a controlled SIMODRIVE 611 test rig to verify drive bus communication, encoder input response, and fault detection logic prior to shipment.
• ESD-Safe Packaging: Modules are sealed in anti-static bags, placed in foam-lined rigid cartons, and outer-packed with shock-absorbing material rated for international air freight handling.
• Export Documentation: Commercial invoice, packing list, certificate of origin, and — on request — material safety data sheet and test report are provided for customs clearance in all major import markets.

Logistics from Xiamen, China to global destinations is executed via DHL Express, FedEx International Priority, and UPS Worldwide Express. Standard transit times: 2–4 business days to Europe and North America, 1–3 business days to Southeast Asia and the Middle East. All shipments include door-to-door tracking and are covered by carrier insurance. For time-critical production line recoveries, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. A 12-month warranty covers all units against manufacturing defects and premature failure under normal operating conditions.
