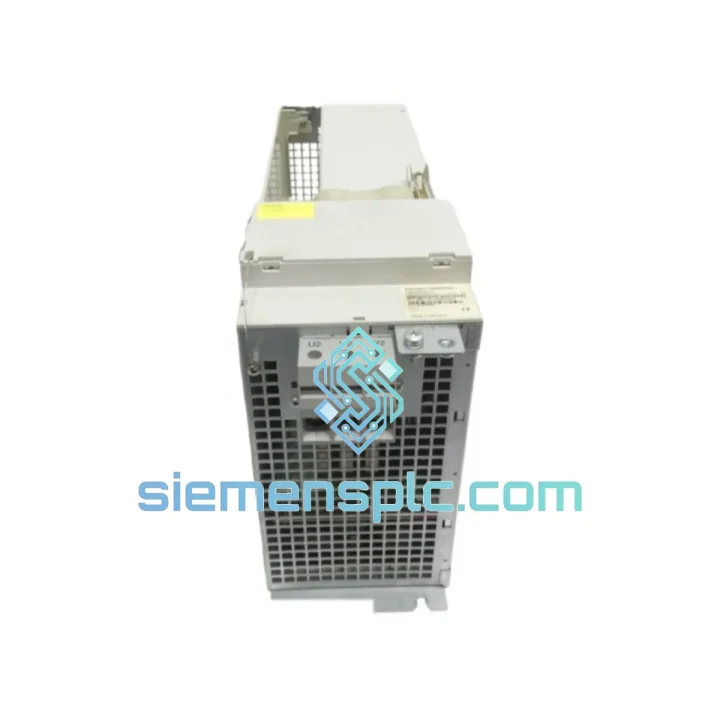

Siemens 6SN1123-1AA00-0EA1 Servo Drive Power Module

Siemens 6SN1123-1AA00-0EA1 – Stop the Clock on Your CNC Downtime

Your spindle is dead. The DC bus is flat. Production is stopped and every hour costs real money. The Siemens 6SN1123-1AA00-0EA1 — the 80 A power module at the heart of your SIMODRIVE 611 drive cabinet — is one of the most failure-critical components in any CNC servo system. When it goes down, nothing else matters until it is back online. We stock this module in Xiamen and ship same-day via DHL Express. That is the only thing you need to know right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on SIMODRIVE 611 cabinets, these are the failure patterns and swap pitfalls that catch engineers off guard:

Common Failure Signatures for 6SN1123-1AA00-0EA1:

• Alarm 300500 / 300600 (DC bus undervoltage / overvoltage): Often the first alarm before a hard power module failure. If the NE module checks out and the alarm persists under load, the power module’s internal IGBT bridge or pre-charge circuit is the likely culprit.
• Alarm 300700 (I²t overload): Can indicate a degraded power module that can no longer sustain rated current. Check thermal paste condition on the heatsink contact surface — dried-out compound is a common root cause on units over 8 years old.
• Alarm 300900 (Power module hardware fault): This is a direct hardware fault flag. The module’s internal monitoring circuit has detected an IGBT gate drive failure or short. Replace the module — do not attempt to clear and restart.
• No DC bus charge after NE module powers up: If the NE module’s ready LED is green but the DC bus stays at 0 V, the power module’s pre-charge relay or inrush resistor has failed open. Confirm by measuring DC bus terminals directly.
• Intermittent axis faults under heavy cutting load: Thermal cycling fatigue on solder joints inside the power module. Fault clears after cooldown but returns under load — a classic sign the module is at end of life.

Replacement Checklist — Do Not Skip These Steps:

• Discharge the DC bus fully before touching any terminals. Use a 1 kΩ / 50 W resistor across the DC bus rails and wait a minimum of 5 minutes. Measure with a meter before proceeding.
• Verify the replacement unit’s current rating suffix: -0EA1 = 80 A. The -0DA1 is 50 A and the -0CA1 is 36 A — they are physically identical but electrically mismatched. Installing the wrong rating will either trip on overload or fail to protect the motor.
• The 6SN1123-1AA00-0EA1 does not require firmware flashing or parameter transfer — it is a pure power stage with no onboard memory. Configuration lives in the control board (6SN1118-series). Swap the power module only; leave the control board in place unless it is also faulty.
• Check the backplane bus connector pins on both the cabinet slot and the replacement module for bent or corroded contacts before seating. A poor backplane connection will generate spurious alarms that look like a faulty replacement unit.
• After installation, perform a DC bus pre-charge test before enabling the drive enable signal. Monitor bus voltage ramp on the NE module display — it should reach nominal within 3–5 seconds without tripping.
• If the machine uses a shared DC bus configuration (multiple power modules on one NE module), confirm the total connected load does not exceed the NE module’s rated output after the swap.

Reliability in Harsh Conditions

The SIMODRIVE 611 platform was designed for the factory floor, not the lab. The 6SN1123-1AA00-0EA1 reflects that engineering philosophy throughout its construction.

The power module’s IGBT bridge assembly is mounted on a precision-machined aluminum heatsink with a forced-air cooling path that maintains junction temperatures within safe limits even at sustained 80 A output in 40°C ambient environments. The internal fan is monitored by the module’s control logic — a fan failure triggers an alarm before thermal damage occurs, giving maintenance teams time to respond rather than discovering a burned module after the fact.

Vibration resistance is addressed through conformal coating on the control PCB and through-hole component construction on high-stress areas of the power board. Units installed in press lines and stamping machines — environments with continuous mechanical shock — routinely achieve 10+ year service lives when cooling is maintained.

Humidity and condensation are managed through the IP20 enclosure rating combined with the cabinet’s own climate control. For installations in high-humidity environments such as food processing or coastal facilities, Siemens recommends anti-condensation heaters in the drive cabinet — a precaution that extends power module life significantly by preventing moisture ingress during cold startups.

Every unit we ship from Xiamen is tested under load before packaging. Units that show any sign of thermal stress, capacitor bulge, or IGBT gate anomaly are rejected. You receive a module that has passed functional verification, not just a visual inspection.

Global Express Logistics

Machine-down situations do not respect business hours or time zones. Our Xiamen warehouse operates with same-day dispatch for orders confirmed before 16:00 CST.

Standard Export Process:

• Order Confirmation → Warehouse Pick: Within 2 hours of payment or PO confirmation, the unit is pulled, re-inspected, and staged for packaging.
• Export Documentation: Commercial invoice, packing list, and certificate of origin are prepared in parallel with packaging. HS Code 8537.10 is used for customs classification. We handle Xiamen Customs declaration in-house — no third-party broker delays.
• Packaging: Anti-static bag, foam-lined double-wall carton, humidity indicator card. The module arrives in the same condition it left our warehouse.
• Carrier Selection: DHL Express is our default for most destinations — typically 2–4 business days to Europe, 3–5 days to the Americas, 1–3 days to Southeast Asia. FedEx International Priority is available as an alternative. We provide the tracking number within 4 hours of dispatch.
• Customs Clearance Support: We provide all documentation required for import clearance in EU, US, and most Asian markets. For destinations with specific import licensing requirements, contact us before ordering so we can advise on the correct procedure.

For genuine machine-down emergencies, contact us via WhatsApp — we can arrange weekend dispatch and coordinate with DHL’s On-Demand Delivery service to meet your site’s receiving schedule.
