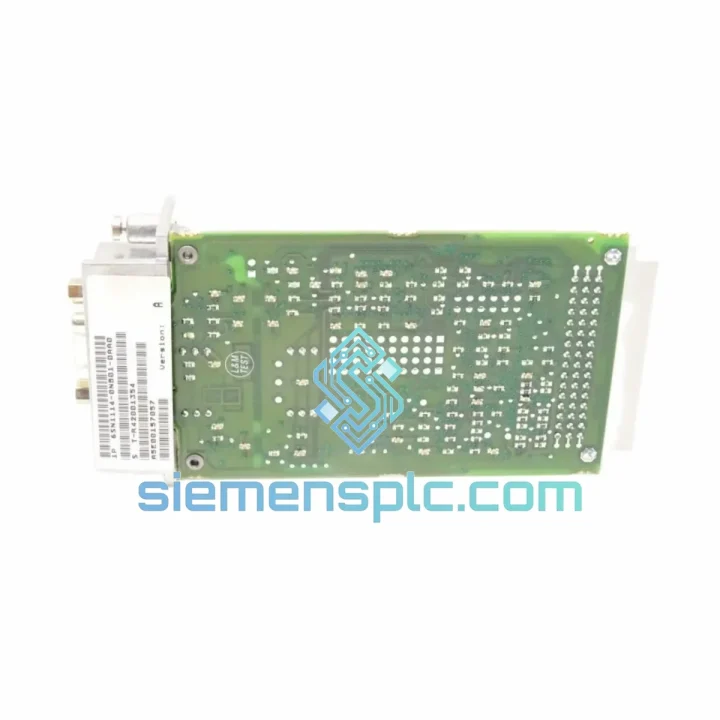

Siemens 6SN1123-1AA00-0HA1 Power Module – SIMODRIVE 611

Siemens 6SN1123-1AA00-0HA1 – DC Bus Power Module in the SIMODRIVE 611 Drive Architecture

The 6SN1123-1AA00-0HA1 is a booksize-format power module within the SIMODRIVE 611 modular drive system. Its primary function is to convert the rectified DC bus voltage—supplied by an upstream infeed/regenerative feedback module—into a controlled output current delivered to the connected servo motor via a matched digital or analog control module. In a multi-axis CNC drive line-up, this unit occupies the axis-level power stage, handling the high-frequency PWM switching that governs torque and speed response in feed and spindle axes. The module operates at a continuous output current of 15 A, with a DC bus nominal of 600 V DC, making it applicable to 400 V AC three-phase supply networks with ±10% tolerance.

In practical CNC machine tool deployments—horizontal machining centers, turning centers, grinding machines, and gear hobbing equipment—the 6SN1123-1AA00-0HA1 serves as the power backbone for one servo axis. Its booksize mechanical format allows dense drive line-up configurations inside standard electrical cabinets, where multiple power modules share a common DC bus rail and a single infeed module. This shared-bus topology enables regenerative braking energy from decelerating axes to be redistributed to accelerating axes within the same cabinet, reducing net energy draw from the supply network.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SN1123-1AA00-0HA1 implements a three-phase IGBT inverter bridge as its core switching topology. Six IGBT devices—arranged in a standard three-leg configuration—receive gate drive signals from the control module via the SIMODRIVE 611 drive bus connector. The gate drive circuitry incorporates desaturation detection: if an IGBT enters linear operation due to overcurrent or short-circuit conditions, the gate driver pulls the gate low within microseconds and latches a fault state, preventing thermal runaway in the power semiconductors.

The DC bus capacitor bank integrated within the module performs two functions: it filters high-frequency ripple generated by the PWM switching (reducing conducted emissions back onto the shared bus), and it provides a local energy reservoir that supports short-duration peak current demands—up to 31 A for 250 ms—without collapsing the bus voltage. This local capacitance is sized to maintain bus voltage within ±5% during the peak current interval, which is critical for maintaining position loop stability in high-dynamic feed axes.

Thermal management relies on an aluminum extruded heatsink bonded to the IGBT module, with a rear-mounted axial fan drawing air through the fin array. The thermal resistance junction-to-heatsink (Rth j-h) of the IGBT assembly is matched to the fan’s airflow rate such that at 40 °C ambient and 15 A continuous, the junction temperature remains below 125 °C—the rated maximum for the IGBT die. A thermistor embedded in the heatsink provides an analog temperature signal to the control module; if the heatsink temperature exceeds the threshold, the drive reduces output current (I²t derating) before triggering a hard fault, allowing the machine controller to execute a controlled stop rather than an abrupt trip.

EMC design follows a layered approach. The power module’s internal wiring uses twisted-pair routing for gate drive signals to minimize loop area and radiated emissions. The DC bus bars are geometrically arranged to achieve partial flux cancellation between the positive and negative rails, reducing bus bar inductance and the associated voltage spikes during IGBT switching transitions. The module’s metal enclosure provides a Faraday shield for the internal electronics, and the PE (protective earth) bonding point is located at the base of the unit to ensure a low-impedance ground path to the cabinet structure—a requirement under EN 55011 for Class A industrial EMC compliance.

System Integration Benefits

• Shared DC Bus Architecture: Multiple 6SN1123-series power modules connect to a common DC bus rail fed by a single 6SN1145-series infeed module. This eliminates redundant rectifier stages per axis and allows regenerative braking energy from decelerating axes to directly power accelerating axes, reducing peak demand on the supply transformer.
• Deterministic Drive Bus Communication: The SIMODRIVE 611 drive bus operates at a fixed cycle time synchronized to the CNC interpolation cycle (typically 1 ms or 2 ms). This deterministic communication eliminates jitter in the current setpoint delivery path, which directly translates to sub-micron position repeatability in precision machining applications.
• Plug-Compatible Retrofit: The 6SN1123-1AA00-0HA1 is mechanically and electrically interchangeable with other 611 power modules of the same current class. No parameter changes are required on the control module or CNC after replacement, reducing machine downtime during maintenance to the time required for physical swap and functional verification.
• Integrated Current Sensing with Diagnostic Transparency: Hall-effect current sensors on each output phase feed actual current values back to the control module at the PWM cycle rate. These values are accessible via the SIMODRIVE 611 diagnostic interface, allowing maintenance engineers to trend motor current signatures and detect bearing wear or load anomalies before they cause unplanned downtime.
• Thermal Derating with Controlled Degradation: Rather than tripping immediately on thermal overload, the module executes a graduated current reduction sequence. This allows the machine controller to complete the current machining pass at reduced feed rate before commanding a stop, protecting the workpiece and tooling from scrap caused by abrupt motion interruption.
• Scalable Axis Count: The booksize format and shared bus topology allow the drive line-up to be expanded by adding additional power modules without modifying the infeed section, provided the infeed module’s rated power is not exceeded. This supports machine variants with different axis counts from a common electrical cabinet design.
• Compatibility with Safety-Integrated Functions: When paired with a digital HSA control module that supports SIMODRIVE Safety Integrated, the power module participates in the safe torque off (STO) and safe stop 1 (SS1) functions. The gate drive inhibit path is hardwired through the safety relay circuit, ensuring that STO is achieved without relying on software execution—meeting IEC 62061 SIL 2 / EN ISO 13849-1 PLd requirements.
• Long-Term Spare Parts Availability: The SIMODRIVE 611 platform has an extensive installed base in CNC machine tools manufactured from the 1990s through the 2010s. Siemens and authorized distributors maintain spare parts availability for this series, and the 6SN1123-1AA00-0HA1 remains one of the most widely stocked power module variants, reducing procurement lead time for maintenance operations.

Quality Assurance & Global Logistics

Every 6SN1123-1AA00-0HA1 unit shipped from our Xiamen, China facility is sourced as genuine Siemens AG manufactured hardware. Incoming units undergo a multi-point inspection protocol: label authenticity verification against Siemens part number and date code conventions, connector and bus bar contact inspection under magnification, and a power-on functional check where applicable. Serial number and hardware revision data are recorded against each order for full traceability.

Packaging follows ESD-safe handling procedures throughout. Units are placed in anti-static poly bags, cushioned with conductive foam inserts, and packed in double-wall corrugated cartons rated for international air and sea freight. Original Siemens carton and documentation are preserved where available.

Logistics from Xiamen cover all major global destinations. Air freight to Europe (Frankfurt, Amsterdam) and North America (Los Angeles, Chicago) typically achieves 3–5 business day transit. Sea freight LCL consolidation is available for multi-unit orders where lead time permits. Export documentation—commercial invoice, packing list, certificate of origin, and HS code 8504.40 classification—is prepared for every shipment to support customs clearance in the destination country. DDP (Delivered Duty Paid) terms are available for select destinations upon request.
