Siemens 6SN1145-1BA01-0DA1 Infeed Module

6SN1145-1BA01-0DA1 — DC Bus Down, Line Stopped: Get This Module Shipped Today

Three minutes after the alarm fired, your maintenance lead already knew: the infeed module is gone. The DC bus won’t hold, every axis in the drive group is locked out, and the machining center is cold. You’re not looking for a brochure — you’re looking for a unit on a shelf that can be on a plane tonight. That unit is the Siemens 6SN1145-1BA01-0DA1, and it is in stock at our Xiamen facility right now.

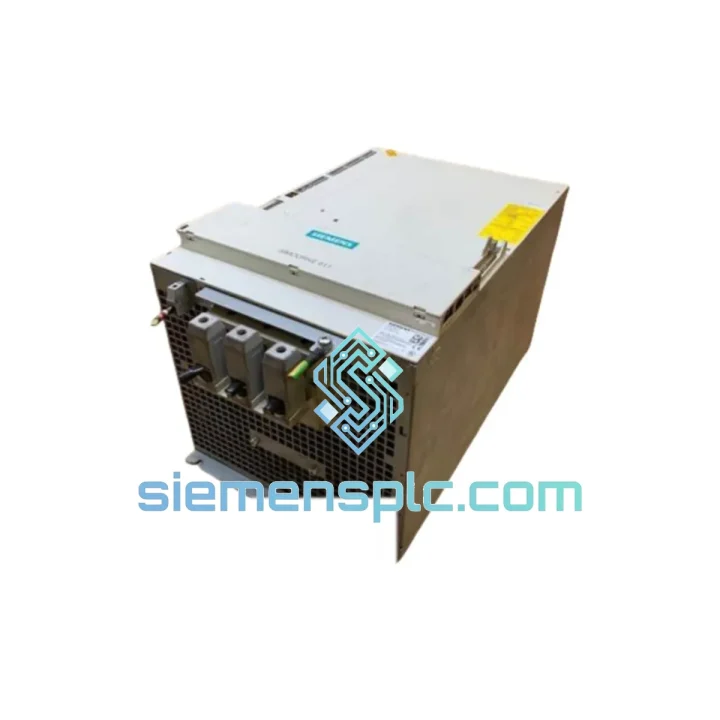

This is the active regenerative infeed module for the SIMODRIVE 611 booksize platform. It establishes and regulates the ~600 V DC link that feeds every axis module in the drive group. Without it, nothing moves. With a confirmed replacement in transit, your team can plan the swap, prep the cabinet, and have the line back up within hours of delivery — not weeks.

We stock this module because we know what a production-down situation costs per hour. Our team has handled emergency dispatches to automotive stamping lines in Germany, CNC machining cells in Taiwan, and paper mills in Brazil. We know how to pack it, document it, and get it cleared through customs without delays.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Failure signatures that point directly to this module:

• Alarm 26 / F26 — DC bus undervoltage: The infeed module has failed to build or sustain the 600 V DC link. Before condemning the module, verify the 3-phase input fuses and the upstream line contactor. If both are intact and the DC bus reads below 540 V under no-load conditions, the rectifier bridge or IGBT front-end inside the 6SN1145-1BA01-0DA1 has failed. Replace the module.
• “Drive not ready” with infeed LED off or red: The infeed module outputs a DC-bus-ready relay signal to the SINUMERIK via connector X9. If the CNC reports drive not ready and the infeed shows no green LED, check 24 V DC auxiliary supply on X9 pins 1 and 2 first. If auxiliary power is confirmed good, the module’s internal self-test is failing — the module is defective.
• Load-dependent DC bus trips: If the fault only appears under axis acceleration or heavy cutting load, suspect the internal DC bus capacitor bank. Capacitor ESR rises with thermal cycling and age. On modules older than 8 years, field capacitor replacement is rarely cost-effective — a direct module swap is faster and more reliable.
• DC bus overvoltage during deceleration: The active IGBT front-end is responsible for returning braking energy to the mains. A failed IGBT or gate driver causes the DC bus to spike during axis deceleration, triggering overvoltage protection. This fault is frequently misattributed to the motor or axis module — always check the infeed first.
• Thermal shutdown after 20–40 minutes: The internal cooling fan is a known wear item on this module. A seized fan bearing causes the power stage to overheat and shut down under load. Before installing any surplus unit, spin the fan manually to confirm free rotation.

Replacement procedure — field checklist:

• De-energize the full drive group. Wait a minimum of 5 minutes for DC bus capacitors to discharge below 50 V. Verify with a calibrated meter — do not rely on the LED indicator alone.
• The 6SN1145-1BA01-0DA1 is a direct plug-and-play replacement for the same part number. No firmware download, no DIP switch configuration, no address assignment is required on the infeed module. Factory jumpers handle hardware configuration internally.
• If substituting a -1BA00- (non-regenerative) variant with this -1BA01- (regenerative) unit, confirm that your mains supply impedance and upstream protection devices are rated to accept regenerated current before proceeding. Reference Siemens Planning Guide 6SN1197-0AA00-0BP8.
• After installation, power on with the SINUMERIK in JOG mode. Monitor DC bus voltage on the drive diagnostics screen. Nominal no-load reading: 580–620 V DC. Any reading outside this range indicates a wiring or upstream supply issue — do not enable axes until resolved.
• Confirm fan operation within the first 60 seconds of power-on. A fan that is not spinning at rated speed will cause thermal shutdown within 30 minutes under production load.

Reliability in Harsh Conditions

The SIMODRIVE 611 platform was designed for continuous operation on the floor of a German automotive press shop — not a temperature-controlled equipment room. The 6SN1145-1BA01-0DA1 reflects that design philosophy at every level of its construction.

The power stage uses industrial-grade IGBTs with junction temperature ratings to 150 °C, mounted on a thermally optimized heatsink that maintains safe operating margins even when cabinet ambient reaches the rated 40 °C ceiling. Internal bus capacitors are specified for 105 °C continuous operation — a meaningful step above the 85 °C components found in lower-grade equipment, and a direct contributor to extended service life in hot cabinets.

Vibration and shock performance is validated to IEC 60068-2-6 (sinusoidal vibration) and IEC 60068-2-64 (random vibration), covering the mechanical stress profiles of press rooms, foundry floors, and heavy-duty machining environments. PCB assemblies carry conformal coating to resist humidity ingress and conductive contamination — essential in coolant-mist environments where bare boards fail within months.

EMC performance meets EN 61800-3 Category C2 through integrated line filtering and shielded internal wiring. Adjacent CNC systems and precision measurement equipment sharing the same cabinet or mains supply will not see disruptive switching noise from this module.

Every unit leaving our warehouse has been stored in a temperature-controlled, ESD-safe environment. Incoming inspection covers visual examination of the capacitor bank for bulging or electrolyte leakage, fan bearing rotation check, and a functional power-on test under controlled conditions. Units that do not pass are not listed for sale.

Global Express Logistics

Our stocking warehouse is in Xiamen, Fujian — a primary export hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Express gateways. Stock is physically on-site. There is no drop-ship delay, no third-party warehouse handoff, no waiting for a supplier to locate the unit.

• Same-day dispatch: Orders confirmed before 15:00 CST are packed and handed to the carrier the same business day. Orders confirmed after 15:00 ship the following morning.
• Transit-safe packaging: Each module ships in anti-static bubble wrap inside a rigid double-wall corrugated carton with foam corner inserts. Gross shipping weight approximately 5.5 kg. Packaging is validated for courier handling — no damage from normal transit vibration or drop events.
• Export documentation: Commercial invoice, packing list, and Certificate of Origin provided as standard. HS Code 8537.10 declared. Additional documentation — test reports, datasheet, letter of conformity — available on request to support customs clearance in markets with strict import controls on industrial electronics.
• Typical transit times: 2–4 business days to Europe; 3–5 days to North America; 1–3 days to Southeast Asia. Tracking numbers provided within 2 hours of carrier pickup.
• Production-down priority: Contact us directly on WhatsApp for emergency freight options including DHL On Demand Delivery and FedEx SameDay where available in your region.
