Siemens 6SN1145-1BB00-0FA0 Infeed Regenerative Feedback Module – SIMODRIVE 611

Siemens 6SN1145-1BB00-0FA0 — DC Bus Infeed & Regenerative Feedback Control in SIMODRIVE 611 Architecture

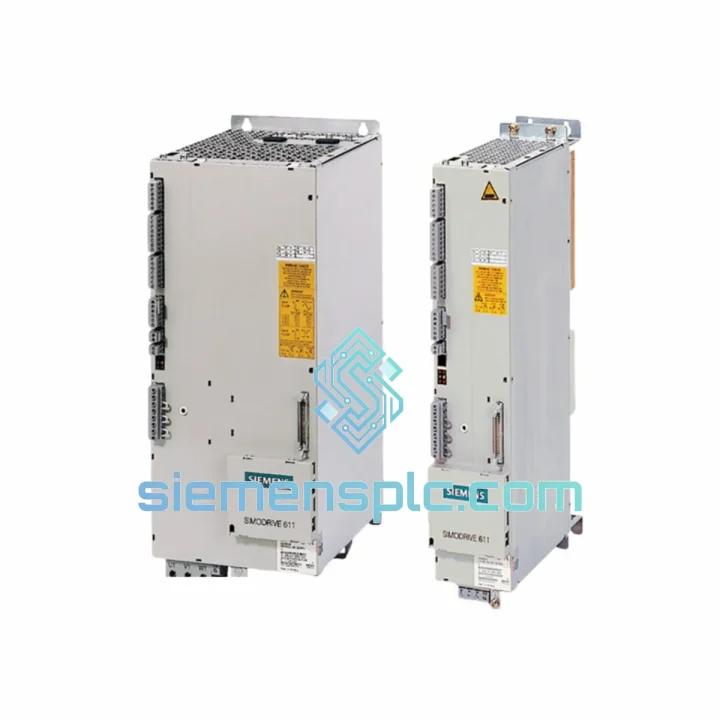

The Siemens 6SN1145-1BB00-0FA0 is the infeed and regenerative feedback module within the SIMODRIVE 611 modular drive system. Its primary function is to regulate the 600 V DC bus voltage shared across all axis drive modules in a common-bus cabinet configuration. Unlike resistive braking units that dissipate deceleration energy as heat, this module routes kinetic energy recovered during motor braking back into the AC supply network — a closed-loop energy exchange that directly reduces net power consumption in multi-axis servo installations.

In a SIMODRIVE 611 cabinet, the 6SN1145-1BB00-0FA0 occupies the leftmost slot and acts as the electrical gateway between the three-phase AC supply and the internal DC bus. All downstream feed and spindle drive modules (6SN1123-x, 6SN1124-x series) draw from and return energy to this shared bus. The module continuously monitors bus voltage, supply phase symmetry, and regenerative current flow, generating fault signals that propagate to the SINUMERIK CNC controller via the drive bus interface.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 6SN1145-1BB00-0FA0 implements an Active Front End (AFE) rectifier topology rather than a passive diode bridge. This distinction is architecturally significant: a passive rectifier can only draw current from the supply, whereas the AFE topology uses a controlled IGBT bridge to both draw and return current to the AC network. The IGBT switching is governed by a dedicated DSP that executes a space-vector PWM algorithm, maintaining near-unity power factor at the supply terminals and keeping total harmonic distortion (THD) within IEC 61000-3-12 limits for industrial installations.

The DC bus capacitor bank inside the module serves a dual role: it filters high-frequency switching ripple from the IGBT stage and provides a short-term energy reservoir that absorbs transient regenerative pulses from multiple axes decelerating simultaneously. The capacitor sizing is matched to the rated infeed power of the module, ensuring bus voltage excursions remain within the ±10 % tolerance window that downstream drive modules require for stable operation.

EMC Design: The module’s PCB layout separates high-current power traces from low-level signal and feedback circuits using a defined ground plane partition. Ferrite cores are placed on the DC bus output conductors to attenuate common-mode noise generated by the IGBT switching transitions. The metal housing provides a Faraday enclosure that attenuates radiated emissions, and the module’s PE (protective earth) bonding point connects directly to the cabinet rail to establish a low-impedance return path for high-frequency interference currents — a design approach consistent with Siemens EMC guidelines for SIMODRIVE 611 installations.

Fault Detection Logic: An onboard monitoring circuit continuously samples DC bus voltage at a rate sufficient to detect transient overvoltage events caused by rapid multi-axis deceleration. If bus voltage exceeds the upper threshold, the module reduces regenerative feedback current within one PWM cycle to prevent overvoltage faults from propagating to axis modules. Phase loss on the AC supply side is detected within two supply cycles, triggering an orderly shutdown sequence that protects both the module and connected drive modules from operating in an unbalanced supply condition.

System Integration Benefits

• Deterministic bus voltage regulation: The AFE control loop maintains DC bus voltage within ±10 V of the 600 V setpoint under dynamic load changes, providing the stable supply voltage that axis drive modules require for precise torque and speed control.
• Net energy reduction in multi-axis systems: Regenerative energy from decelerating axes is returned to the AC supply rather than burned in braking resistors, measurably reducing energy consumption in high-cycle applications such as CNC machining centers and transfer lines.
• Elimination of braking resistor hardware: Removing resistive braking units from the cabinet reduces component count, eliminates a thermal load source, and simplifies cabinet thermal management calculations.
• Unity power factor operation: The AFE topology draws sinusoidal current from the supply at near-unity power factor, reducing reactive power demand and avoiding power factor penalty charges in facilities with utility metering.
• Diagnostic transparency via drive bus: Fault codes, bus voltage measurements, and regenerative current values are accessible to the SINUMERIK controller via the SIMODRIVE drive bus, enabling condition monitoring without additional instrumentation.
• Scalable common-bus architecture: A single 6SN1145-1BB00-0FA0 can supply multiple axis and spindle drive modules on the shared 600 V DC bus, reducing the number of individual supply units required compared to standalone drive topologies.
• Plug-compatible replacement: The module’s mechanical and electrical interface is standardized within the SIMODRIVE 611 booksize format, allowing direct replacement without cabinet rewiring or parameter reconfiguration of axis modules.
• Reduced thermal stress on cabinet components: By eliminating resistive braking heat dissipation, ambient temperature inside the cabinet is lower, extending the service life of capacitors, fans, and other thermally sensitive components throughout the drive system.

Quality Assurance & Global Logistics

Every Siemens 6SN1145-1BB00-0FA0 unit supplied by siemensplc.com is sourced through verified industrial supply channels and subjected to a structured inspection process before dispatch. Visual inspection covers housing integrity, connector pin condition, PCB surface examination, and label authenticity verification including date-code cross-referencing against Siemens production records. Functional verification confirms power-stage continuity and control board response prior to packaging.

Units are packed in anti-static foam-lined cartons with corner protection rated for international air freight handling. Export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration — is prepared for each shipment to facilitate customs clearance in the destination country.

Logistics operations are based in Xiamen, China, with direct access to Xiamen Gaoqi International Airport and Xiamen Port, supporting both express air freight and sea freight consolidation. Standard express delivery via DHL, FedEx, or UPS reaches most destinations in Asia, Europe, and North America within 3–7 business days. Sea freight consolidation is available for bulk MRO procurement orders. In-stock units ship within 1–3 business days of order confirmation. A 12-month warranty covers all units from the date of shipment.
