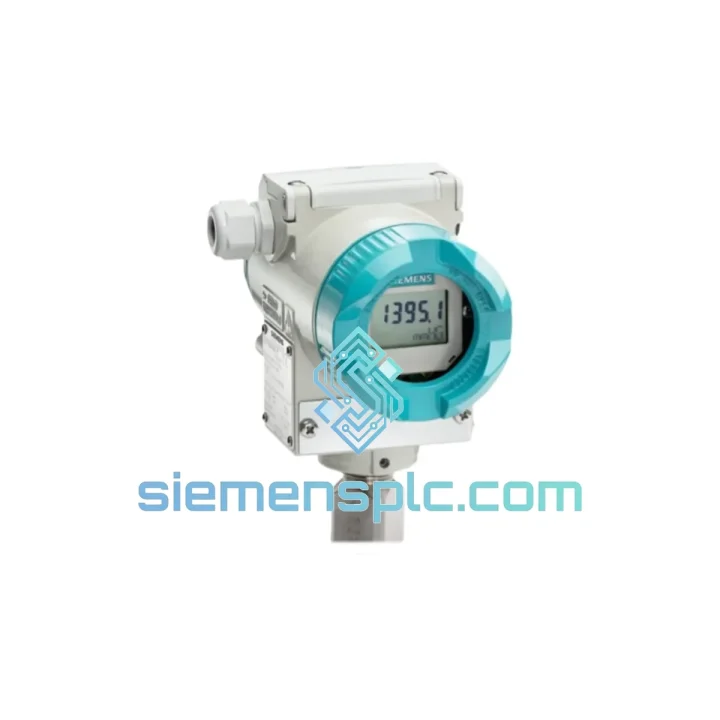

Siemens 7MF0300-1TE01-5AF2-Z Pressure Transmitter

Siemens 7MF0300-1TE01-5AF2-Z — Stop the Bleed: Every Hour of Downtime Costs You Real Money

Your process is down. The control room is on the phone. Maintenance is standing by. The culprit: a failed pressure transmitter on a loop that nobody thought would go first. We’ve seen this exact scenario hundreds of times across chemical plants, water treatment facilities, and power generation sites. The Siemens 7MF0300-1TE01-5AF2-Z SITRANS P300 pressure transmitter is in stock at our Xiamen warehouse — not on a 12-week lead time from a distributor who doesn’t actually have it. We ship same day or next business day via DHL Express or FedEx International Priority. Your line can be back up before the end of the week.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 7MF0300-1TE01-5AF2-Z fails in predictable ways once you’ve seen enough of them in the field. Here’s what to check before you pull the trigger on a replacement, and what to watch during swap-out:

Common Failure Modes:

• Output frozen at 3.6 mA or 21 mA: Classic sensor cell saturation or internal electronics fault. If HART communication is still alive but the analog output is pegged, the cell is likely gone — not the electronics board. Don’t waste time swapping the terminal head first.
• Erratic 4–20 mA output with no process change: Check for moisture ingress at the conduit entry. The IP67 rating holds under static immersion, but repeated thermal cycling with a poorly sealed cable gland will wick water into the terminal compartment over 18–24 months. Inspect the O-ring on the terminal cover — it hardens and loses compression in high-temperature environments.
• HART communication loss (no response to handheld): Verify loop resistance is between 230–500 Ω. Below 230 Ω, HART signal amplitude collapses. Above 600 Ω, the transmitter may not power up correctly. A cheap multimeter across the loop resistor saves 30 minutes of head-scratching.
• Zero drift after process restart: The P300 uses a piezoresistive sensor cell. After a hard overpressure event (even within the static pressure limit), the zero point can shift by 0.3–0.5% of span. Perform a zero trim via HART before assuming the unit is defective.

Replacement Procedure — Key Steps:

• Before removal, note the current HART tag, PV range, damping value, and engineering units. Use a HART 475 or equivalent handheld to read and record the device configuration — takes 2 minutes and saves you from re-engineering the loop from scratch.
• The Z-suffix on this part number indicates customer-specific options. Confirm your Z-option string (printed on the nameplate) before ordering. Common Z-options include special process connections, extended temperature ranges, and gold-plated wetted parts for hydrogen service.
• On installation, perform a sensor trim (lower and upper trim) if the new unit will be used at a different calibrated range than the factory default. The P300 supports full HART trim without removing the unit from the process.
• Torque the process connection to 40–50 Nm for G ½ B. Under-torquing is the leading cause of process leaks on first startup after a transmitter swap.
• After loop restoration, verify the 4 mA (0%) and 20 mA (100%) endpoints at the DCS/PLC input card. A 0.1% accuracy transmitter is useless if the analog input card hasn’t been calibrated in three years.

Reliability in Harsh Conditions

The SITRANS P300 platform was not designed for a clean instrument room. It was built for the kind of environments where instrumentation goes to die — and survives anyway. The 7MF0300-1TE01-5AF2-Z carries an IP67 rating, meaning it withstands temporary immersion to 1 meter for 30 minutes. In practice, this matters during plant washdowns, flooding events, and outdoor installations in monsoon-prone regions.

Vibration resistance is rated to IEC 60068-2-6: 2g from 10–2000 Hz. On compressor skids and pump discharge lines where mechanical vibration is constant, the P300’s welded sensor cell construction outperforms units with bolted or adhesive-bonded assemblies. There are no internal mechanical joints to fatigue-crack under cyclic loading.

The operating temperature range of −40 °C to +85 °C covers the vast majority of outdoor and process applications without requiring heat tracing or sun shields. The electronics are conformal-coated at the factory, providing additional protection against condensation in high-humidity environments such as coastal chemical plants and tropical water treatment facilities.

For aggressive media, the Hastelloy C-276 wetted parts option (available as a Z-suffix configuration) handles chloride-containing process fluids, dilute acids, and oxidizing environments where 316L stainless steel would pit and fail within months. If your process involves seawater, bleach dosing, or hydrochloric acid, specify the Hastelloy option — it is not a luxury, it is a maintenance interval multiplier.

Global Express Logistics

Our inventory is held at a bonded warehouse in Xiamen, China — one of the most connected export hubs in Asia, with direct DHL Express and FedEx International Priority services to over 220 countries and territories. Here’s how the process works from the moment you confirm your order:

• Order confirmation: Same-day confirmation with stock verification and proforma invoice issued within 2 hours during business hours (UTC+8, Mon–Sat).
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared in parallel with packing. For EU imports, we provide EUR.1 movement certificates where applicable. For US imports, we provide HTS classification documentation.
• Dispatch: Units ship within 24 hours of payment confirmation for in-stock items. DHL Express transit times: Southeast Asia 1–2 days, Europe 3–5 days, North America 3–5 days, Middle East 2–4 days, South America 5–7 days.
• Tracking: AWB number provided immediately upon dispatch. Real-time tracking link sent via email and WhatsApp.
• Customs clearance: We declare accurate HS codes and commercial values. We do not under-declare. This protects your shipment from customs holds that would defeat the entire purpose of express shipping.
• Urgent freight: For genuine production emergencies, contact us via WhatsApp for same-day dispatch options and charter freight coordination if required.
