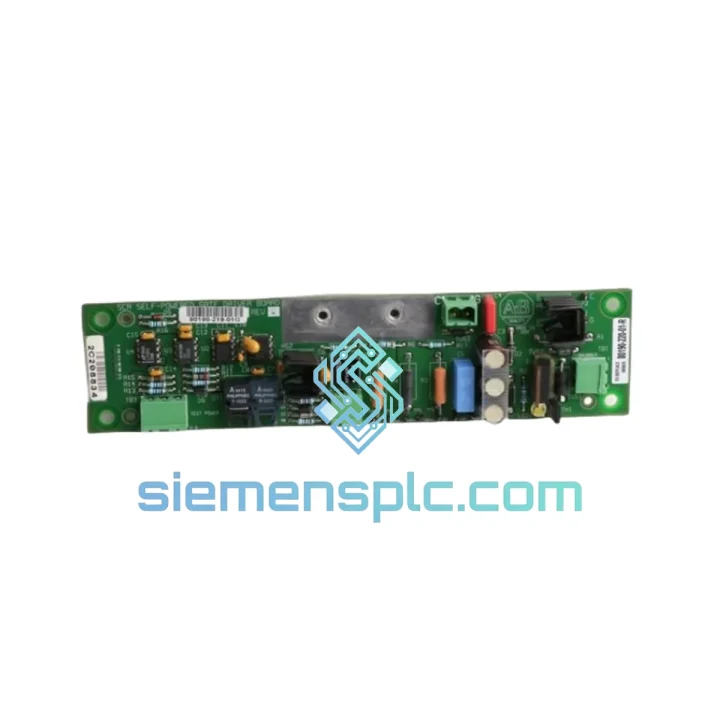

Siemens 80190-220-01-R SP-SCRGD Control Board

80190-220-01-R SP-SCRGD Board: Stop the Clock on Your Downtime — Ship Today from Xiamen

Every minute a production line sits idle costs real money. If your system just threw a fault and you’ve traced it back to the SP-SCRGD customer-packaged board (P/N: 80190-220-01-R), you don’t have time for a 6-week OEM lead time. We stock this board in Xiamen and can have it moving via DHL Express within hours of order confirmation. That’s the difference between a 4-hour recovery and a 4-week nightmare.

This is a 100% original Siemens SP-SCRGD series board — not a clone, not a re-labeled substitute. It ships with full traceability documentation, an anti-static protective package, and a 12-month warranty backed by our engineering team. We’ve handled emergency replacements for plants across Southeast Asia, the Middle East, and Europe. We know what’s at stake when a line goes down.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 10 years of field work, here’s what I’ve seen go wrong with SP-SCRGD boards and what to watch for during swap-out:

Common Failure Signatures:

• Intermittent CPU fault / SF LED solid red: Often caused by SP-SCRGD board losing communication with the backplane. Check the edge connector for oxidation before condemning the board — clean with IPA first. If fault persists after cleaning, the board is the culprit.
• STOP mode with no apparent trigger: Firmware mismatch between the SP-SCRGD board and the CPU module. After installing the replacement, verify firmware revision compatibility via STEP 7 or TIA Portal before going online.
• Cyclic I/O timeout errors (OB86 triggered): The SP-SCRGD board handles rack-level addressing. If the replacement board has a different hardware revision, the rack address may need to be re-confirmed via DIP switch settings on the backplane.
• Power-on with no bus activity: Check the 24 VDC supply rail to the board slot. A failed board can sometimes drag down the supply — measure voltage at the backplane connector before inserting the new board.

Step-by-Step Replacement Procedure:

1. Place the CPU in STOP mode. Confirm all outputs are de-energized before proceeding.
2. Document the current DIP switch positions on the existing board with a photo — do not rely on memory.
3. Power down the rack. Wait 30 seconds for capacitors to discharge.
4. Remove the faulty 80190-220-01-R board. Note the slot position — some systems use slot-dependent addressing.
5. Set DIP switches on the replacement board to match the documented positions from step 2.
6. Seat the new board firmly into the backplane. Confirm the locking tabs engage.
7. Power up the rack. Monitor the SF and BF LEDs during initialization — both should extinguish within 10 seconds on a healthy system.
8. Go online via STEP 7 / TIA Portal. Run a hardware configuration comparison to confirm the module is recognized correctly.
9. Perform a warm restart. Monitor for 15 minutes before returning to AUTO mode.

Firmware Note: If the replacement board has a newer hardware revision than the original, update the hardware catalog in your project file before downloading. Mismatched HW revisions are the #1 cause of post-replacement faults that look like a bad board but aren’t.

Reliability in Harsh Conditions

The SP-SCRGD series was engineered for environments that would kill consumer-grade electronics. Siemens designed this board to operate continuously in the kind of conditions found on real production floors — not in a climate-controlled lab.

• Vibration resistance: Rated to IEC 60068-2-6 sinusoidal vibration profiles. The board uses conformal coating on critical circuit areas to prevent micro-fractures in solder joints under sustained mechanical stress — a common failure mode in press shops and compressor rooms.
• Thermal tolerance: Operational across a wide ambient temperature range. The board’s thermal design accounts for convective airflow within standard Siemens rack enclosures. Ensure rack ventilation slots are unobstructed — restricted airflow is the leading cause of premature board failure in hot climates.
• Humidity and condensation: The conformal coating provides a barrier against moisture ingress. However, if the board has been exposed to condensation (common in coastal or high-humidity facilities), inspect the edge connector and component surfaces before installation. A 2-hour bake at 50°C in a dry cabinet will drive off residual moisture before powering up.
• EMI immunity: Designed to IEC 61000-4 series immunity standards. In high-EMI environments (near large VFDs or welding equipment), ensure the rack cabinet is properly bonded to the plant earth grid. A floating cabinet ground is a frequent source of unexplained board faults.

Global Express Logistics

Our Xiamen warehouse is positioned specifically for fast international dispatch. Xiamen Gaoqi International Airport handles daily DHL and FedEx freighter operations, which means your board doesn’t sit waiting for a connecting flight.

• Order cutoff: Orders confirmed before 14:00 CST ship same business day.
• DHL Express: Xiamen → Europe: 3–5 business days. Xiamen → Middle East: 3–4 business days. Xiamen → Southeast Asia: 1–3 business days. Xiamen → North America: 4–6 business days.
• FedEx International Priority: Available as an alternative carrier. Transit times comparable to DHL. Preferred by customers with existing FedEx accounts for consolidated billing.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared at time of dispatch. HS code classification assistance is provided — critical for smooth customs clearance in the EU and GCC countries.
• Packaging: Anti-static bag → bubble wrap → double-wall corrugated carton. Fragile and ESD-sensitive labels applied. The board arrives in the same condition it left our warehouse.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent via email and WhatsApp.

If your plant is in a country with complex import requirements (India, Brazil, Indonesia), contact us before ordering. We’ve shipped to all three and can advise on documentation requirements to avoid customs holds.
