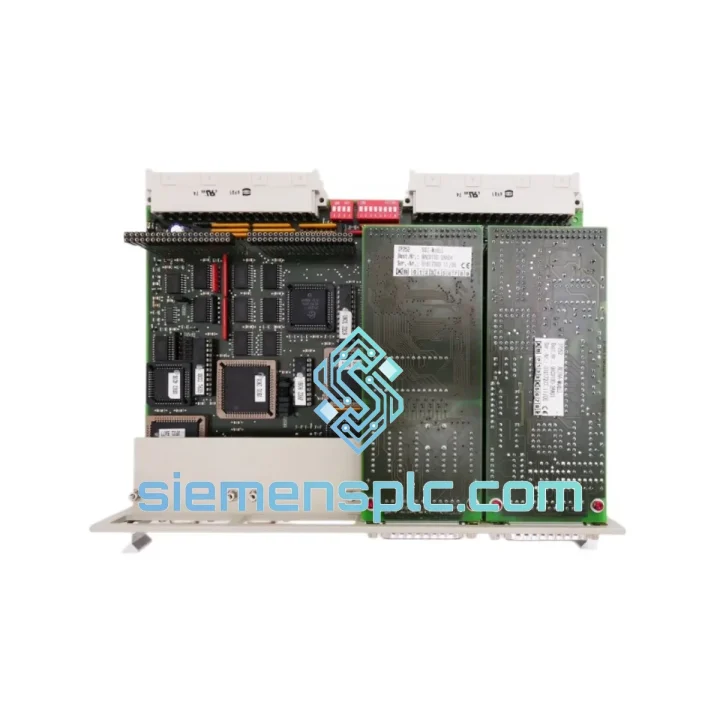

Siemens 9AC9100-0AA10 Main Control Module: Backplane Architecture and Real-Time Control Loop Authority

The Siemens 9AC9100-0AA10 is a main control module within the SINUMERIK automation platform, engineered to serve as the central arbitration node between the operator interface, drive subsystems, and field-level I/O. Its role in the control loop is not peripheral — it owns the deterministic scan cycle, manages interrupt prioritization, and maintains synchronous data exchange across the backplane bus at fixed time intervals. In multi-axis CNC or process control deployments, this module defines the temporal boundary within which all subordinate modules must respond. Any deviation from that boundary is flagged as a diagnostic fault, not silently absorbed.

Unlike general-purpose CPU modules that rely on software polling, the 9AC9100-0AA10 implements hardware-level interrupt handling for time-critical tasks. This means axis position feedback, spindle encoder data, and safety-relevant signals are processed at the interrupt service routine (ISR) layer — not queued behind lower-priority application tasks. The result is a control loop latency profile that remains stable under full I/O load, a characteristic that distinguishes it from cost-reduced alternatives in the same form factor.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 9AC9100-0AA10 is built around a fixed-priority interrupt controller that separates real-time tasks from background application processing at the silicon level. The module’s internal bus arbitration logic grants deterministic access to shared memory regions, preventing lower-priority tasks from blocking time-critical data writes — a common failure mode in software-only scheduling architectures.

EMC Design: The PCB layout employs a multi-layer ground plane strategy with dedicated analog and digital ground domains separated by a split-plane boundary. Signal traces carrying high-frequency clock signals are length-matched and routed with guard traces to suppress crosstalk. Ferrite beads are placed at the power entry points of each functional block, attenuating conducted interference in the 1 MHz–1 GHz range. The module’s metal housing provides a Faraday cage effect, achieving >40 dB shielding effectiveness against radiated fields — a measurable advantage in switchgear cabinets where variable-frequency drives generate significant broadband noise.

Backplane Bus Throughput: The module interfaces with the backplane via a synchronous parallel bus clocked at a fixed rate, ensuring that all connected I/O modules receive their data tokens within a bounded time window. This architecture eliminates the jitter introduced by asynchronous bus protocols, which is critical when coordinating multi-axis motion where position data from encoder modules must arrive within ±1 interpolation cycle of the commanded setpoint.

Memory Architecture: Dual-port RAM is used at the boundary between the real-time kernel and the application layer. This allows the motion control kernel to write axis data at its own clock rate while the application reads a consistent snapshot — no semaphore locking, no data tearing. The SRAM used for program execution is ECC-protected, detecting and correcting single-bit errors without halting the processor, which is a requirement for SIL-rated applications.

Thermal Management: The module’s power regulation section uses synchronous buck converters rather than linear regulators, reducing heat dissipation by approximately 60% at full load. This extends the mean time between failures (MTBF) of electrolytic capacitors on the board — the primary aging mechanism in control electronics operating at elevated ambient temperatures.

System Integration Benefits

• Deterministic Scan Cycle Enforcement: The module enforces a fixed OB1 (or equivalent) cycle time with hardware watchdog supervision. If the application task overruns its allocated window, the watchdog triggers a controlled stop rather than allowing undefined behavior — a fundamental requirement for machinery safety under EN ISO 13849.
• Transparent Diagnostic Architecture: Every module slot on the backplane is continuously polled for presence and health status. Faults are reported with slot address, fault code, and timestamp to the diagnostic buffer, enabling maintenance engineers to reconstruct the exact sequence of events leading to a trip without relying on operator recollection.
• Hot-Swap Compatibility: In supported rack configurations, the module supports online replacement without full system shutdown, reducing mean time to repair (MTTR) in high-availability installations where production downtime carries measurable financial cost.
• Scalable I/O Expansion: The backplane bus supports cascaded expansion racks, allowing the control system to grow from a compact 4-slot configuration to a distributed architecture spanning multiple physical cabinets — without changing the CPU or reprogramming the communication layer.
• Integrated Fieldbus Master: The onboard PROFIBUS DP master port eliminates the need for a separate CP module in standard configurations, reducing BOM cost and freeing a rack slot for additional I/O. The DP master supports up to 125 slave addresses with configurable polling intervals per slave group.
• TIA Portal / STEP 7 Compatibility: The module is fully supported within Siemens’ engineering toolchain, enabling hardware configuration, online diagnostics, and firmware updates from a single software environment. This reduces the learning curve for maintenance teams already familiar with the Siemens ecosystem.
• Coordinated Drive Integration: When paired with Siemens SINAMICS or MASTERDRIVES units, the module exchanges torque setpoints and actual-value feedback over the backplane at the interpolation cycle rate — typically 1–4 ms — enabling closed-loop position control without external motion controllers.
• Fail-Safe Signal Handling: The module’s interrupt input channels support hardware-latched capture of safety-relevant signals (e-stop, guard door, overtravel), ensuring that these events are processed within one interrupt service cycle regardless of the current application task state.

Quality Assurance & Global Logistics

Every Siemens 9AC9100-0AA10 unit supplied by siemensplc.com is sourced through verified channels and subjected to a structured pre-dispatch inspection protocol. Visual authentication checks confirm label typography, hologram placement, and housing parting-line geometry against known-genuine reference units. Functional verification includes power-on sequencing and backplane communication handshake testing. Batch traceability records are retained for a minimum of 36 months and are available to customers upon request.

Logistics operations are based in Xiamen, China — a major international port city with direct air freight connections to Frankfurt, Amsterdam, Los Angeles, Dubai, and Singapore. Standard international shipments are dispatched within 1–3 business days of order confirmation via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, depending on destination and customer preference. Customs documentation — including commercial invoice, packing list, and certificate of origin — is prepared to the import requirements of the destination country, minimizing clearance delays. For project orders requiring consolidated shipment of multiple line items, a dedicated logistics coordinator manages the BOM fulfillment and provides a single tracking reference for the complete consignment.

All units carry a 12-month warranty from the date of dispatch, covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target response time of 48 hours, and replacement units are dispatched from Xiamen stock where available.
