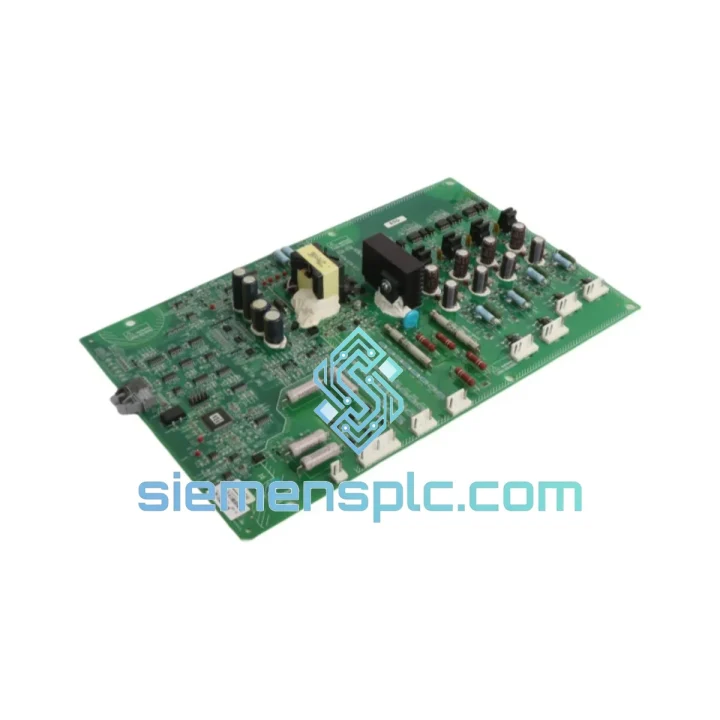

Siemens A1A10000432.30M PLC Control Board – SIMATIC S5

Siemens A1A10000432.30M — SIMATIC S5 Backplane Control Board in Industrial Process Loops

The Siemens A1A10000432.30M is a board-level control assembly engineered for the SIMATIC S5 programmable controller family. Within a closed-loop control architecture, this module occupies the interface layer between the CPU’s internal bus and the physical I/O subracks, managing address decoding, interrupt arbitration, and synchronous data transfer across the S5 parallel backplane. Its role is not peripheral — it is the structural backbone that determines whether the CPU’s scan cycle translates into deterministic field-level actuation.

The SIMATIC S5 platform was designed to IEC 61131-2 hardware requirements and has accumulated over three decades of validated runtime in continuous-process and discrete-manufacturing environments. The A1A10000432.30M is a direct-fit replacement component within that ecosystem, maintaining full electrical and logical compatibility with the original rack geometry and bus timing specifications. For facilities where S5 infrastructure remains in service — whether due to capital deferral, process criticality, or validated-system constraints — this board represents the lowest-risk path to restoring full system operability after a hardware fault.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The A1A10000432.30M operates at the intersection of the S5 CPU’s internal address/data bus and the subrack slot connectors. Several hardware design characteristics are worth examining in detail:

Backplane Bus Arbitration: The S5 parallel bus uses a multiplexed address/data scheme where the CPU asserts an address strobe (AS) signal to latch the target slot address before driving data. The control board’s address decoder logic — implemented in discrete TTL or early CMOS gate arrays depending on the production revision — must resolve slot selection within the CPU’s defined bus cycle time, typically 500 ns to 1.5 µs depending on the S5 sub-family. Any propagation delay beyond this window causes a bus timeout fault (BF LED on CPU). The A1A10000432.30M’s decoder is matched to the original timing budget, which is why non-OEM substitutes frequently introduce intermittent BF faults under thermal stress.

EMC Design — Conducted and Radiated Immunity: The PCB layout incorporates ground plane segmentation to isolate the logic supply return from the backplane shield ground. Bypass capacitors (typically 100 nF ceramic in parallel with 10 µF electrolytic) are placed at each IC power pin to suppress high-frequency switching transients. The board’s edge connector pins for the backplane interface include series termination resistors on data lines to reduce reflections on the unterminated stub topology inherent to the S5 rack geometry. This passive termination approach maintains signal integrity without requiring active termination networks, which would increase power dissipation in the confined rack enclosure.

Interrupt Handling Architecture: The S5 CPU supports hardware interrupt inputs (process interrupts) routed through the backplane. The control board’s interrupt arbitration logic implements a priority encoder that serializes simultaneous interrupt requests from multiple I/O modules, presenting a single, debounced interrupt signal to the CPU’s interrupt input with a defined latency. This deterministic interrupt path is critical for time-critical process interrupt OBs (e.g., OB2–OB5 in S5 programming) where jitter in interrupt delivery directly affects control loop timing.

Power Distribution and Fault Isolation: The board includes polyfuse or diode-based protection on the +5 V logic rail distribution to individual slot connectors. A short circuit on one slot’s logic supply does not propagate to adjacent slots or to the CPU board, enabling fault isolation without full rack shutdown — a significant advantage in continuous-process environments where partial operation is preferable to complete loss of control.

System Integration Benefits

• Zero-modification replacement: The A1A10000432.30M installs directly into the original board position without rack modification, firmware changes, or re-parameterization of the CPU — preserving the validated system configuration and minimizing re-commissioning scope.
• Deterministic scan cycle preservation: Because the board’s bus timing parameters match the original specification, the CPU’s programmed scan cycle time (OB1 cycle) remains within its configured watchdog window after replacement, avoiding nuisance watchdog trips during restart.
• Diagnostic transparency: The board supports the S5 CPU’s built-in diagnostic mechanisms, including the BF (bus fault) and SF (system fault) LED indicators, allowing maintenance personnel to use standard S5 diagnostic procedures without additional tooling.
• Reduced mean time to repair (MTTR): Stocking this board as a critical spare eliminates the 4–12 week lead time typical of OEM new-production orders, reducing unplanned downtime to the time required for physical board swap and system restart.
• Legacy system life extension: For S5 installations where migration to S7 or TIA Portal is deferred — due to validated-system requirements, capital constraints, or process criticality — this board extends operational life without requiring architectural changes to the control system.
• Multi-family compatibility: A single board type covers multiple S5 CPU sub-families (90U through 155U), simplifying spare parts inventory management for facilities operating mixed S5 configurations across multiple production lines.
• Thermal stability across industrial ambient range: The 0–60 °C operating range covers standard IEC 60204-1 control cabinet internal temperatures, including cabinets with moderate solar loading or inadequate air conditioning — conditions common in emerging-market industrial facilities.
• Audit-ready procurement documentation: Each unit shipped from siemensplc.com is accompanied by a packing list, inspection record, and available OEM reference documentation, supporting procurement audit requirements in regulated industries (pharmaceutical, food & beverage, nuclear auxiliary systems).

Quality Assurance & Global Logistics

Every Siemens component dispatched from our Xiamen, China facility passes through a structured pre-shipment verification process. Units are sourced exclusively from documented supply chains — authorized distributors, certified resellers, or decommissioned industrial assets with traceable provenance. Grey-market or unverified channels are not used.

Pre-shipment inspection covers visual examination for PCB damage, corrosion, and counterfeit markings; component-level verification against known-good reference boards; and, where test fixtures are available, functional bench testing under representative supply voltages. Each shipment includes a commercial invoice, packing list, certificate of origin, and HS code declaration. Additional documentation — MSDS, test reports, extended traceability records — is available upon request for regulated procurement environments.

Logistics are handled via DHL Express, FedEx International Priority, or UPS Worldwide, with full shipment tracking from Xiamen to destination. Standard transit times are 3–5 business days to Europe and North America, 2–4 business days to Southeast Asia and the Middle East. Export compliance documentation is prepared for each shipment in accordance with Chinese customs regulations and destination-country import requirements. All units carry a 12-month warranty from the date of dispatch.
